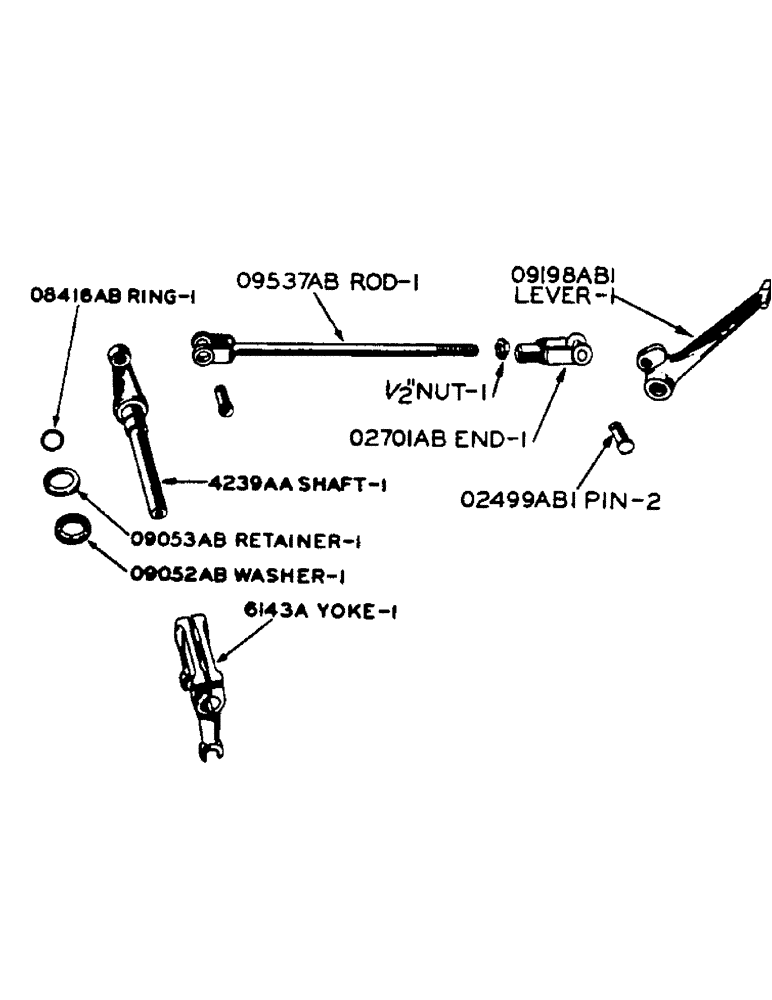

Запчасти Case IH 500-SERIES (102) - PTO CLUTCH THROWOUT (06) - POWER TRAIN

A8822

ROD - PTO clutch hand control (Comfort seat) See O9537AB

1шт.

1/8" x 1" cotter pin

1шт.

6143A

X

YOKE - PTO clutch throwout

1шт.

5/16" x 1-1/4" hex hd. cap screw, N.C. thrd., with lockwasher

2шт.

O2499AB1

X

PIN - hand control rod yoke end, for PTO clutch

2шт.

1/8" x 1" cotter pin

2шт.

O2701AB

X

END - yoke, PTO clutch hand control rod

1шт.

O8416AB

X

"O" RING - PTO clutch throwout shaft

1шт.

O9052AB

X

FELT WASHER - PTO clutch throwout shaft

1шт.

O9053AB

X

RETAINER - PTO clutch throwout shaft felt washer

1шт.

O9198AB1

LEVER - PTO clutch hand

1шт.

1/8" - 90 degree Lincoln fitting, no. 5400

1шт.

O9537AB

X

ROD - PTO clutch hand control (See A8822)

1шт.

1/2" hex nut, light, N.F. thrd.

1шт.

O9639AB

X

"E" RING - retaining, for PTO clutch hand lever mounting pin, on 4394AA bracket

1шт.

4239AA

SHAFT AND ARM - clutch throwout

1шт.

No. 9 Woodruff key

2шт.

4394AA

BRACKET - operators seat mounting, with spark and throttle hand lever support and PTO clutch hand lever mounting pin

1шт.

5/8" x 1-1/4" hex hd. cap screw, N.C. thrd., with lockwasher

1шт.

5/8" x 1-1/2" hex hd. cap screw, N.C. thrd., with lockwasher

1шт.
