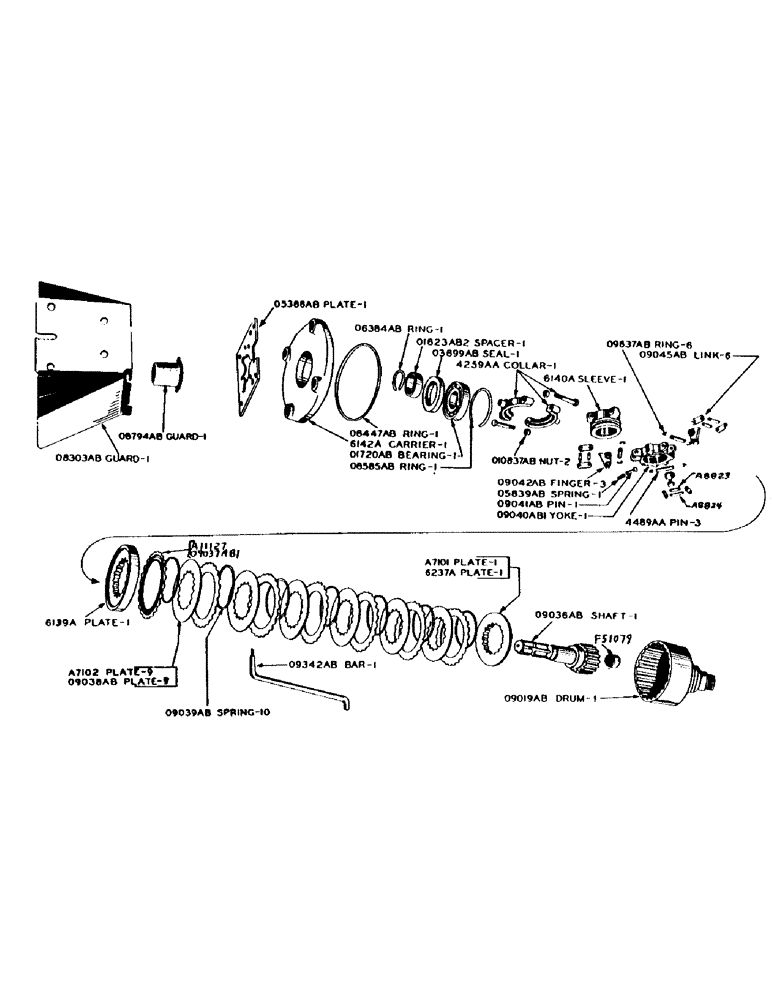

Запчасти Case IH 500-SERIES (100) - POWER TAKE-OFF CLUTCH (06) - POWER TRAIN

A7101

PLATE

- PTO clutch backing. Tractor no. 8040211 and after. See 6237A

1шт.

A7102

CLUTCH DRIVING PLATE

PLATE - PTO clutch driven (Steel, ground finish surface) Tractor no. 8040211 and after. (See O9038AB)

9шт.

A7111

SNAP RING,#25, Ext

Ring, Snap, , for old style clutch lever link pin #25, Ext

12шт.

A8823

PIN,6.29mm OD x 26.99mm L

- PTO clutch lever link, upper

3шт.

3/32" x 1/2" cotter pin

3шт.

A8824

PIN

- PTO clutch lever link, lower

3шт.

3/32" x 1/2" cotter pin

3шт.

A11127

PLATE

- PTO clutch drive - bronze, circular corrugations (See O9037AB1)

10шт.

F51079

NEEDLE BEARING

BEARING - pilot, PTO and hydraulic drive shaft rear (Torrington #TH1616-OH)

1шт.

6139A

X

PLATE - PTO clutch pressure

1шт.

6140A

X

SLEEVE - PTO clutch sliding

1шт.

6141A

X

COLLAR - PTO clutch throwout. Use 4259AA

1шт.

6142A

CARRIER - PTO rear bearing

1шт.

6237A

PLATE - PTO clutch backing. Prior to tractor no. 8040211 (See A7101)

1шт.

O1720AB

BEARING

- PTO shaft, rear. (New Departure no. 1207)

1шт.

O1823AB2

X

SPACER - PTO stub shaft

1шт.

O3899AB

X

OIL SEAL - PTO stub shaft

1шт.

O5386AB

PLATE - PTO guard mounting

1шт.

1/2" x 1-3/4" hex hd. cap screw, N.C. thrd., with lockwasher

4шт.

O5839AB

X

SPRING - PTO clutch adjusting lock pin

2шт.

O6384AB

SNAP RING - PTO stub shaft

1шт.

O8303AB

X

GUARD - power take-off

1шт.

3/8" x 1" carr. bolt with hex nut

2шт.

3/8" Shakeproof lockwasher, no. 4020-26

2шт.

O8447AB

X

"O" RING - PTO rear bearing carrier

1шт.

O8585AB

X

SNAP RING - stub shaft rear bearing carrier

1шт.

O8794AB

GUARD - PTO shaft tubular

1шт.

3/8" x 3/4" hex hd. cap screw, N.F. thrd., with hex nut

2шт.

3/8" Shakeproof lockwasher, no. 4020-26

2шт.

O9019AB

DRUM - PTO clutch

1шт.

O9036AB

X

SHAFT - PTO stub

1шт.

O9037AB1

X

PLATE - PTO clutch drive (Bronze, circular corrugations) (Use A11127)

10шт.

O9038AB

X

PLATE - PTO clutch driven (Steel, unfinished surface) Prior to tractor no. 8040211 (See A7102)

9шт.

O9039AB

SPRING

- PTO clutch drive plate separator

10шт.

O9040AB1

X

YOKE - PTO clutch adjusting

1шт.

O9041AB

X

PIN - PTO clutch adjusting lock

2шт.

O9042AB

X

FINGER - PTO clutch

3шт.

O9045AB

LINK - PTO clutch lever

6шт.

O9342AB

BAR - clutch adjusting

1шт.

O9637AB

X

"E" RING - retaining, for 4489AA pin

6шт.

O9914AB

DRIVER - for installing O5034BF needle bearing in PTO stub shaft

1шт.

O9915AB

JAW - for 4550AA puller

2шт.

O10837AB

NUT - 5/16" - 24 steel elastic stop for cap screw in 4259AA collar

2шт.

4259AA

X

COLLAR - PTO clutch throwout (Consists of: 2 - 6141A, 2 - 5/16" x 2" hex hd. cap screw, N.F. thrd., with 2 - O10837AB nuts)

1шт.

4489AA

X

PIN - PTO clutch finger (Consists of pin with 2 - O9637AB rings)

3шт.

4550AA

PULLER - for removing needle bearing from PTO stub shaft. Tractors equipped with constant PTO (Same puller as 3913AA except O9915AB jaws are used)

1шт.
