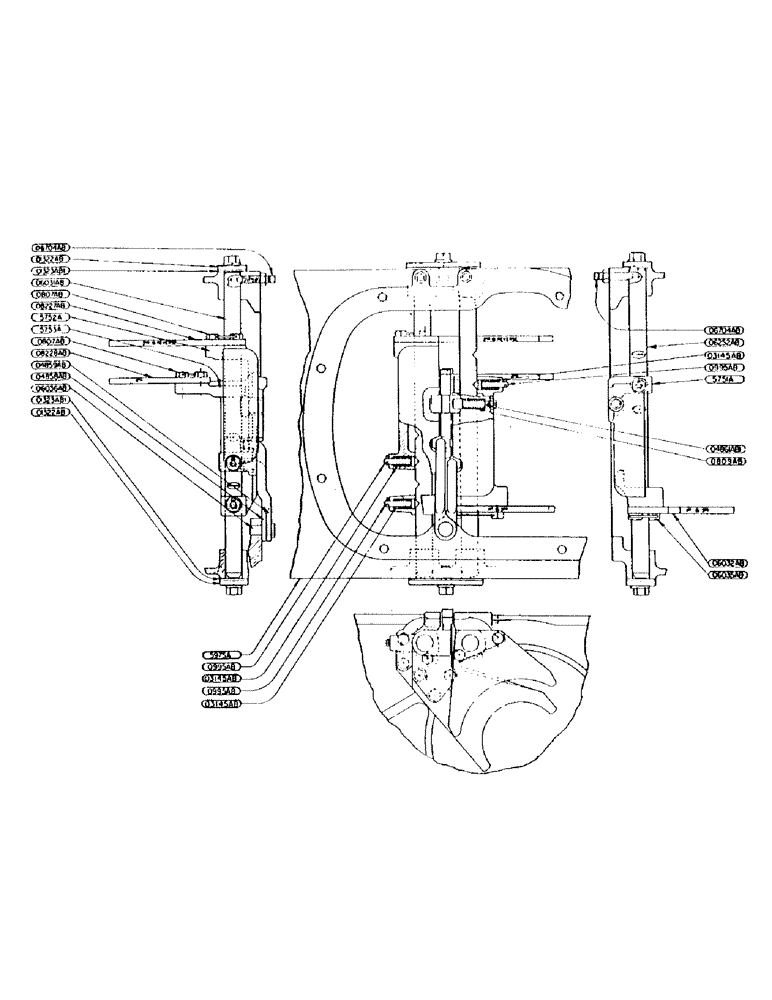

Запчасти Case IH 500-SERIES (095) - GEAR SHIFT PARTS (06) - POWER TRAIN

5751A

SHIFTER - first and third gear

1шт.

5752A

SHIFTER - second and reverse gear

1шт.

5753A

SHIFTER - fourth gear

1шт.

5976A

COVER - transmission case top. Use 3559AA

1шт.

6002A

BRACKET - gear shift hand lever

1шт.

3/8" x 1" hex hd. cap screw, N.C. thrd., with lockwasher

2шт.

O807AB

SCREW - second, reverse and fourth gear shifter

6шт.

O809AB

SPRING - second and reverse gear lockout

1шт.

O995AB

PLUNGER - gear shifter

3шт.

3/32" x 1/2" cotter pin

3шт.

O1322AB

PLATE - shifter shaft end

2шт.

1/2" x 1-1/4" hex hd. cap screw, N.C. thrd., with lockwasher

2шт.

O1323AB1

X

GASKET - shifter shaft end plate

2шт.

O1467AB

BOLT - gear shifter arm

1шт.

3/8" cast nut, light, N.F. thrd.

1шт.

3/32" x 7/8" cotter pin

1шт.

O3098AB

PLUG - transmission case top cover

1шт.

O3145AB

X

SPRING - gear shifter

3шт.

O3501AB

X

BALL - gear shift hand lever

1шт.

O4378AB

SNAP RING - gear shifter hand lever pin

2шт.

O4858AB

INTERLOCK - gear shifter, short

1шт.

O4859AB

INTERLOCK - gear shifter, long

1шт.

O4861AB1

LOCKOUT - second and reverse gear

1шт.

5/16" castle nut, light, N.F. thrd.

1шт.

1/16" x 5/8" cotter pin

1шт.

O5187AB

X

OIL SEAL - gear shifter shaft

1шт.

O5417AB

PLUG - end, steering column

1шт.

O6031AB

SHAFT - second, reverse and fourth shifter

1шт.

O6032AB

FORK - first and third gear

1шт.

O6035AB

SCREW - first and third gear shifter

2шт.

O6036AB

PIN - gear shifter interlock

1шт.

O6037AB

X

GASKET - transmission case top cover

1шт.

O6038AB

ARM - gear shifter

1шт.

O6040AB4

LEVER - hand, gear shift

1шт.

O6041AB

PIN - gear shift - hand lever

1шт.

O6252AB

SHAFT - lower and third shifter

1шт.

O6704AB

SCREW - set, shifter shaft

2шт.

3/8" hex jam nut, N.C. thrd.

2шт.

O8194AB

SCREW - power take-off shifter plunger hole

1шт.

O8227AB

FORK - second and reverse gear

1шт.

O8228AB

FORK - fourth gear

1шт.

O8233AB

SHAFT - gear shift hand lever

1шт.

No. A Woodruff key

1шт.

3559AA

COVER - transmission case top

1шт.

1/2" x 1-1/4" hex hd. cap screw, N.C. thrd., with lockwasher

6шт.

1/2" x 1-1/2" hex hd. cap screw, N.C. thrd., with lockwasher

1шт.

1/2" x 5" hex hd. cap screw, N.C. thrd., with lockwasher

1шт.

3/8" x 1" cup point set screw

1шт.

3/8" hex jam nut, N.C. thrd.

1шт.
