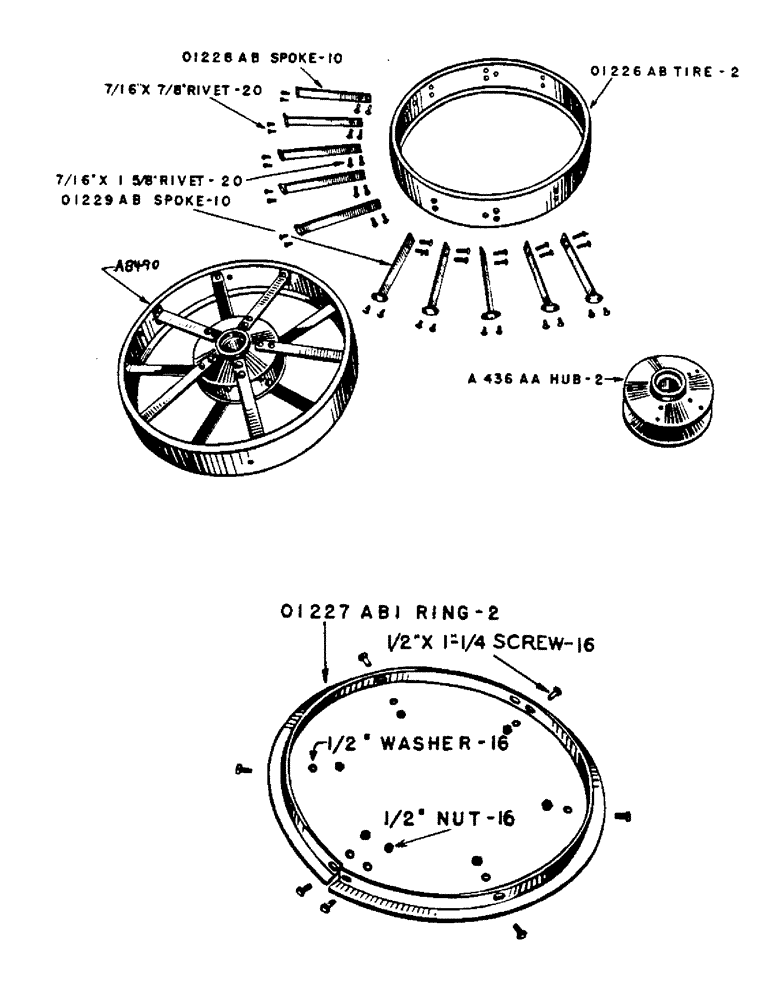

Запчасти Case IH 500-SERIES (078) - FRONT WHEEL, STEEL (06) - POWER TRAIN

A8490

WHEEL - front, with bearing cups

2шт.

4384A

X

CAP - front wheel hub

2шт.

A4496A

HUB - front wheel. Use A436AA

1шт.

O1226AB

TIRE - front wheel, steel

2шт.

O1228AB

SPOKE - front wheel, outer

10шт.

7/16" x 7/8" rd. hd. rivet

20шт.

7/16" x 1-5/8" rd. hd. rivet

20шт.

O1229AB

SPOKE - front wheel, inner

10шт.

7/16" x 7/8" rd. hd. rivet

20шт.

7/16" x 1-5/8" rd. hd. rivet

20шт.

O2879AB

X

CUP - front wheel inner bearing (Timken no. 3720)

2шт.

O2881AB

X

CUP - front wheel outer bearing (Timken no. 2523)

2шт.

A436AA

HUB - front wheel, with bearing cups (Consists of: 1 - A4496A, 1 - O2879AB and 1 - O2881AB) See A35AA

2шт.

O1227AB1

RING - skid, front wheel (See 729AA), steel

2шт.

1/2" x 1-1/4" mach. bolt, with hex nut and lockwasher

16шт.
