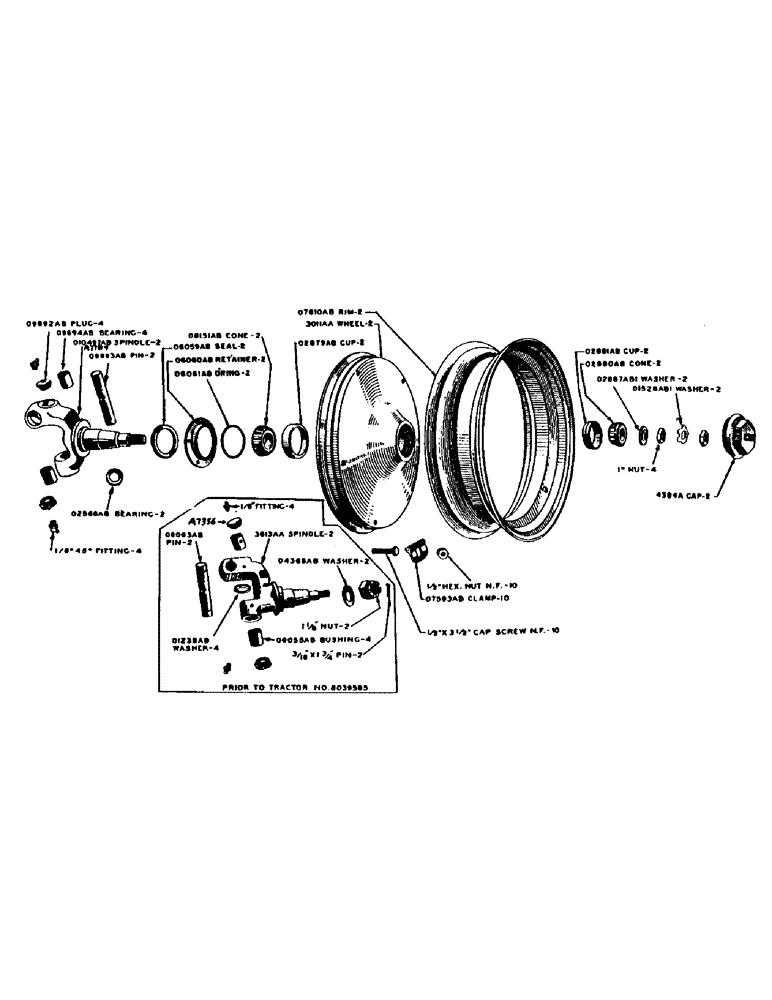

Запчасти Case IH 500-SERIES (076) - FRONT WHEEL AND SPINDLE (06) - POWER TRAIN

A7356

PLUG

- steering spindle

4шт.

O1238AB

WASHER - steering spindle thrust

4шт.

O2879AB

X

CUP - front wheel inner bearing (Timken no. 3720)

2шт.

O2880AB

X

CONE - front wheel outer bearing (Timken no. 2580)

2шт.

O2881AB

X

CUP - front wheel outer bearing (Timken no. 2523)

2шт.

O4368AB

X

WASHER - steering spindle

2шт.

O6055AB

BUSHING - steering spindle

4шт.

O6059AB

X

SEAL - front wheel

2шт.

O6060AB

X

RETAINER - front wheel seal

2шт.

1/4" x 1/2" rd. hd. mach. screw, N.C. thrd., with lockwasher

10шт.

O6061AB

X

"O" RING - front wheel retainer seal

2шт.

O6063AB

X

PIN - front axle king

2шт.

O6064AB

LOCK - front axle king pin

2шт.

5/8" hex nut, light, N.F. thrd., with lockwasher

2шт.

O8151AB

X

CONE - front wheel inner bearing (Timken no. 3780)

2шт.

3613AA

SPINDLE - steering, with bushing

2шт.

1/8" str. Lincoln fitting no. 5000

4шт.

1-1/8" light thick slotted nut

2шт.

3/16" x 1-3/4" cotter pin

2шт.

A7789

SPINDLE - steering, serial no. 8080719 and after (See O10497AB), front wheel trac. no 8039585 & after

2шт.

1" fin. hex jam nut N.F.

4шт.

O1528AB1

X

WASHER - lock, front wheel spindle nut, trac. no 8039585 & after

2шт.

O2566AB

X

BEARING - thrust, front axle (Timken no. T-126), spindle trac. no 8039585 & after

2шт.

O2879AB

X

CUP - front wheel inner bearing (Timken no. 3720), spindle trac. no 8039585 & after

2шт.

O2880AB

X

CONE - front wheel outer bearing (Timken no. 2580), spindle trac. no 8039585 & after

2шт.

O2881AB

X

CUP - front wheel outer bearing (Timken no. 2523), spindle trac. no 8039585 & after

2шт.

O2887AB1

X

WASHER - front axle spindle, wheel trac. no 8039585 & after

2шт.

O6059AB

X

SEAL - front wheel,spindle trac. no 8039585 & after

2шт.

O6060AB

X

RETAINER - front wheel seal, spindle trac. no 8039585 & after

2шт.

1/4" x 1/2" rd. hd. mach. screw, N.C. thrd., with lockwasher

10шт.

O6061AB

X

"O" RING - front wheel retainer seal, spindle trac. no 8039585 & after

2шт.

O8151AB

X

CONE - front wheel inner bearing (Timken no. 3780), spindle trac. no 8039585 & after

2шт.

O9692AB

X

PLUG - steering spindle, front wheel trac. no 8039585 & after

4шт.

1/8" - 45 degree Lincoln fitting no. 5200

4шт.

O9693AB

X

PIN - front axle king, wheel spindle trac. no 8039585 & after

2шт.

O9694AB

X

BEARING - front axle king pin (Torrington no. B2020), wheel spindle trac. no 8039585 & after

4шт.

O9695AB

LOCK - front axle king pin, wheel spindle trac. no 8039585 & after

2шт.

1/2" hex nut, light, N.F. thrd., with lockwasher

2шт.

O10497AB

SPINDLE - steering (From serial no. 8039585 to 808719) See A7789, front wheel trac. no 8039585 & after

2шт.

1" hex jam nut, light, N.F. thrd.

4шт.

4384A

X

CAP - front wheel hub, for pnuematic tires

2шт.

5825A

WHEEL - front. Use 3011AA, for pnuematic tires

1шт.

O2879AB

X

CUP - front wheel inner bearing (Timken no. 3720), for pnuematic tires

2шт.

O2881AB

X

CUP - front wheel outer bearing (Timken no. 2523), for pnuematic tires

2шт.

O7593AB

X

CLAMP - front wheel rim (5 per wheel), for pnuematic tires

10шт.

1/2" x 3-1/2" hex hd. cap screw, N.f. thrd., with heavy semi- finish hex nut

10шт.

O7810AB

X

RIM - front wheel (5.50F-18 full drop center rim, without drive lugs) for 7.50 - 18 pneumatic tire

2шт.

3011AA

WHEEL - front, with bearing cups (Consists of: 1 - 5825A, 1 - O2879AB and 1 - O2881AB) See 3007AA, for pnuematic tires

2шт.

1/2" x 3-1/2" hex hd. cap screw, N.F. thrd., with heavy semi- finish hex nuts, fastens clamp to wheel and rim. (5 per wheel)

10шт.
