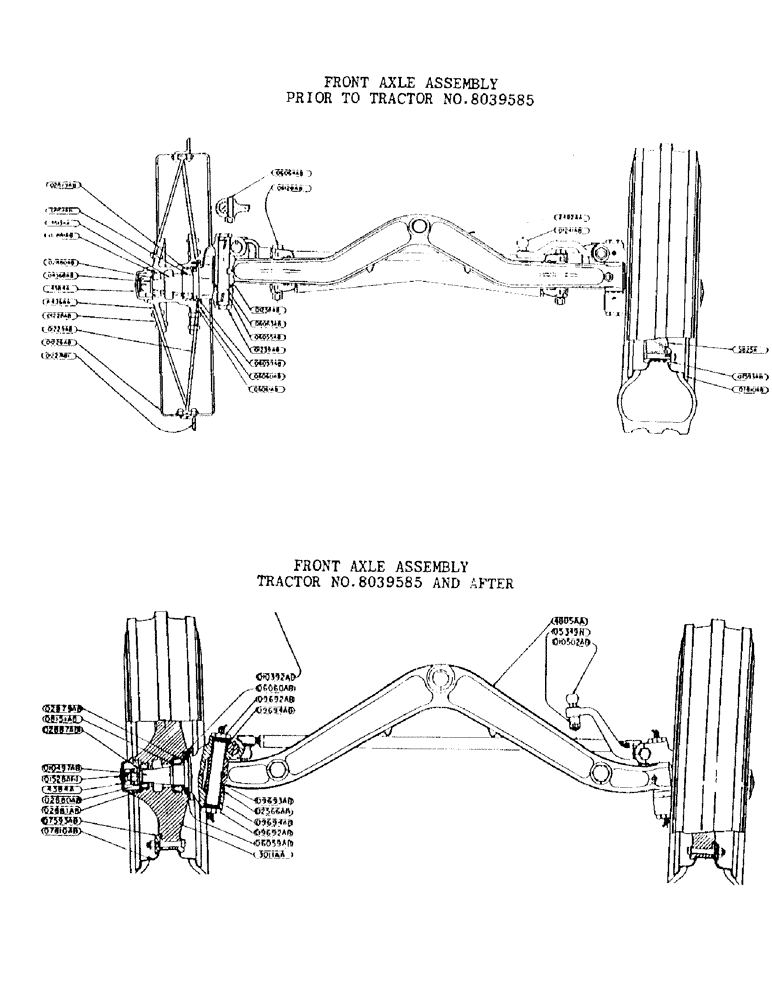

Запчасти Case IH 500-SERIES (073) - FRONT AXLE (06) - POWER TRAIN

6340A

BRACKET - front axle and radiator

1шт.

3/4" x 2" hex hd. cap screw, N.C. thrd., with lockwasher

4шт.

O4368AB

X

WASHER - radius rod pivot pin

1шт.

O6062AB

X

PIN - front axle pivot

1шт.

1/2" x 4" hex hd. cap screw, N.F. thrd., with nut and lockwasher

1шт.

1/8" str. Lincoln fitting, no. 5000

1шт.

O6063AB

X

PIN - front axle king

2шт.

O6064AB

LOCK - front axle king pin

2шт.

5/8" hex nut, light, N.F. thrd., with lockwasher

2шт.

O6128AB

BOLT - radius rod yoke

2шт.

5/8" hex nut, light, N.F. thrd., with lockwasher

2шт.

O6129AB

PIN - radius rod pivot

1шт.

1/8" - 90 degree Lincoln fitting no. 5400

1шт.

1-1/8" hex jam nut, light, N.F. thrd.

1шт.

3/4" hex nut, light, N.F. thrd., with lockwasher

1шт.

O6130AB

WASHER - radius rod pivot pin

7шт.

O6131AB

X

BUSHING - radius rod pivot pin

2шт.

O6132AB

WASHER - lock, radius rod pivot pin nut

1шт.

O6133AB

BUSHING - front axle pivot pin

2шт.

2492AA

AXLE - front, with bushings

1шт.

4627AA

ROD - radius, with pivot pin bushing

1шт.

6340A

BRACKET - front axle and radiator, tractor no. 8039585 and after

1шт.

3/4" x 2" hex hd. cap screw, N.C. thrd. with lockwasher

4шт.

O2567AB

X

BOLT - radius rod front, axle trac no. 8039585 & aft

2шт.

1" hex nut, light, N.F. thrd.

2шт.

1" no. 1236-00 internal tooth Shakeproof lockwasher

2шт.

O4368AB

X

WASHER - radius rod pivot pin, front axle trac no. 8039585 & aft

1шт.

O6062AB

X

PIN - front axle pivot, trac no. 8039585 & aft

1шт.

1/2" x 4" hex hd. capscrew, N.F. thrd., with nut and lockwasher

1шт.

1/8" str. Lincoln fitting no. 5000

1шт.

O6129AB

PIN - pivot, radius rod, front axle trac no. 8039585 & aft

1шт.

3/4" hex nut, light, N.F. thrd., with lockwasher

1шт.

1-1/8" hex jam nut, light, N.F. thrd.

1шт.

1/8" - 90 degree Lincoln fitting no. 5400

1шт.

O6130AB

WASHER - radius rod pivot pin, front axle trac no. 8039585 & aft

7шт.

O6131AB

X

BUSHING - radius rod pivot pin, front axle trac no. 8039585 & aft

2шт.

O6132AB

WASHER - lock, radius rod pivot pin nut, front axle trac no. 8039585 & aft

1шт.

O6133AB

BUSHING - front axle pivot pin, trac no. 8039585 & aft

2шт.

O9693AB

X

PIN - king, front axle, trac no. 8039585 & aft

2шт.

O9695AB

LOCK - front axle king pin, trac no. 8039585 & aft

2шт.

1/2" hex nut, light, N.F. thrd., with lockwasher

2шт.

4804AA

RADIUS ROD - with bushings, front axle trac no. 8039585 & aft

1шт.

4805AA

AXLE - front, with bushings, trac no. 8039585 & aft

1шт.
