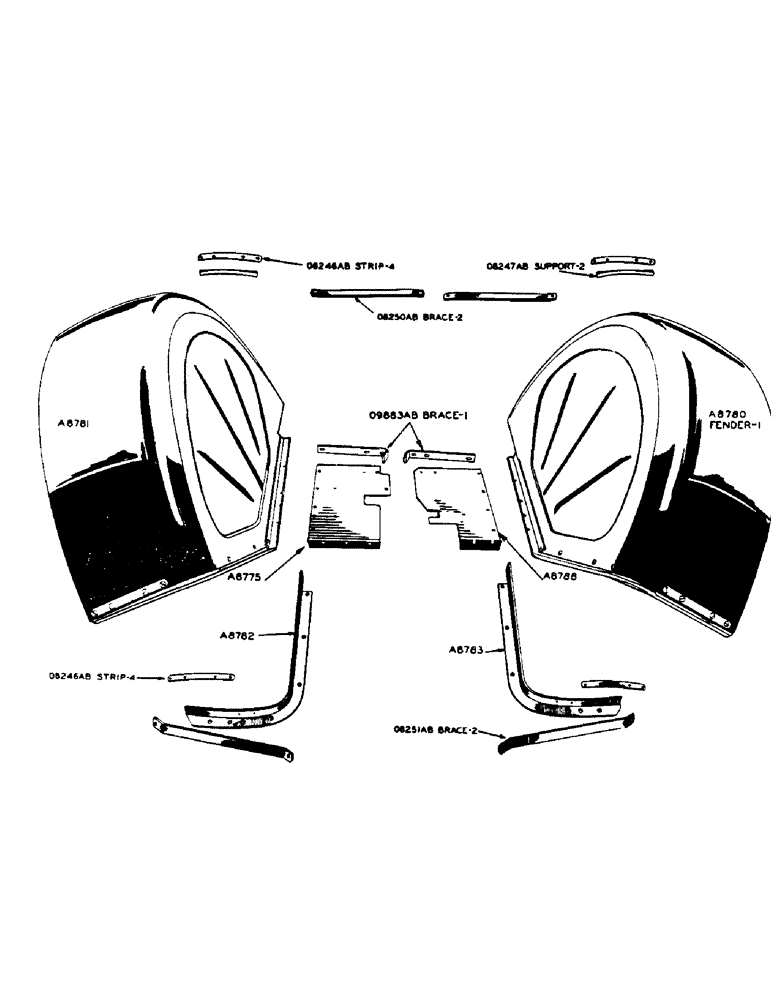

Запчасти Case IH 500-SERIES (072) - FENDERS SERIAL NUMBER 8060852 AND AFTER (06) - POWER TRAIN

A8775

APRON - fender, L.H.

1шт.

5/16" x 3/4" carr. bolt w/nut and lockwasher

6шт.

A8780

FENDER - R.H. (Includes 2 - O8246AB, 1 - O8247AB and 1 - A8782)

1шт.

5/16" x 1" truss hd. mach. screw (NC) w/nut and lockwasher

9шт.

5/16" x 3/4" truss hd. mach. screw (NC) w/nut and lockwasher

4шт.

A8781

FENDER - L.H. (Includes 2 - O8246AB, 1 - O8247AB and 1 - A8783)

1шт.

5/16" x 3/4" truss hd. mach. screw (NC) w/nut and lockwasher

4шт.

5/16" x 1" truss hd. mach. screw (NC) w/nut and lockwasher

9шт.

A8782

ANGLE - rear fender support, L.H.

1шт.

5/16" x 1-3/4" fin. hex bolt (NC) w/nut and lockwasher

2шт.

1/2" x 1-1/4" fin. hex bolt N.F., w/nut and lockwasher

2шт.

A8783

ANGLE - rear fender support, L.H.

1шт.

5/16" x 1-3/4" fin. hex bolt N.C. w/nut and lockwasher

2шт.

1/2" x 1-1/4" fin. hex bolt N.F. w/nut and lockwasher

2шт.

A8788

APRON - fender, R.H.

1шт.

5/16" x 3/4" carriage bolt w/nut and lockwasher

5шт.

O8246AB

STRIP - fender reinforcement

4шт.

O8247AB

SUPPORT - fender, front

2шт.

O9883AB

BRACE - fender apron

2шт.

5/16" x 7/8" fin. hex bolt (NF) w/nut and lockwasher

6шт.

1/2" x 1-1/4" fin. hex bolt (NC) w/nut and lockwasher

4шт.
