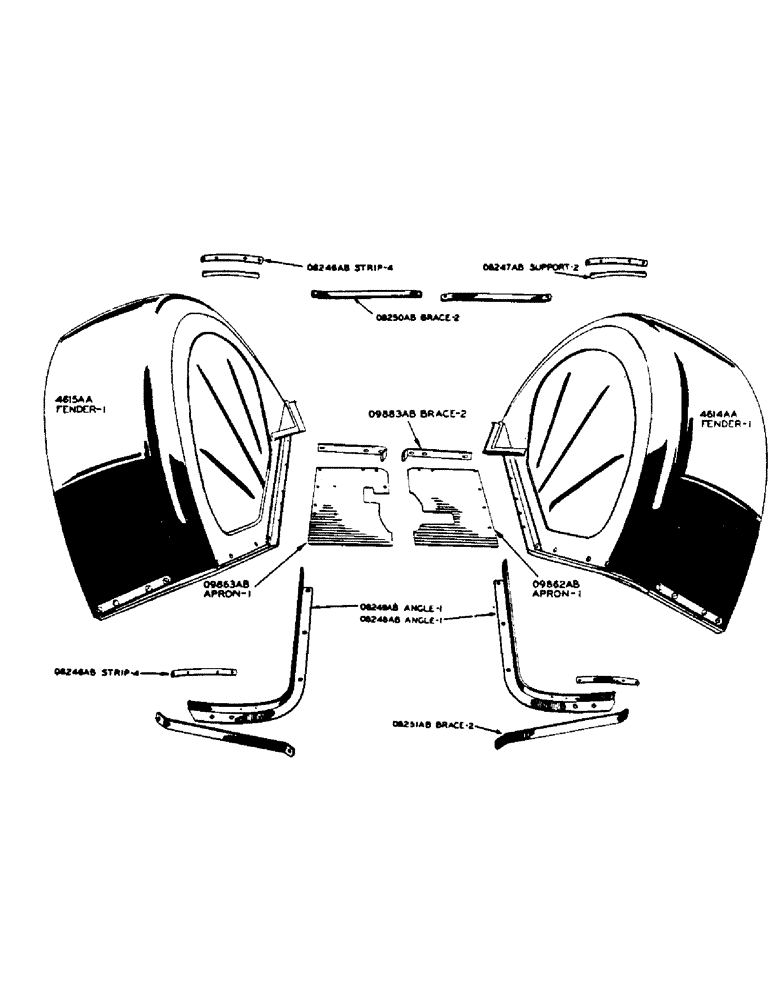

Запчасти Case IH 500-SERIES (071) - FENDERS PRIOR TO SERIAL NUMBER 8060852 (06) - POWER TRAIN

O8246AB

STRIP - fender reinforcement

4шт.

5/16" x 3/4" truss hd. mach. screw, N.C. thrd., with nut and lockwasher, for strip on front of fender

8шт.

5/16" x 1" truss hd. mach. screw, N.C. thrd., with nut and lockwasher, for strip on rear of fender

8шт.

O8247AB

SUPPORT - fender, front

2шт.

O8248AB

ANGLE - R.H. fender rear support

1шт.

1/2" x 1-1/4" hex hd. cap screw, N.F. thrd., with nut and lockwasher

2шт.

1/2" x 1-1/2" hex hd. cap screw, N.F. thrd., with nut and lockwasher

1шт.

O8249AB

ANGLE - L.H. fender rear support

1шт.

1/2" x 1-1/4" hex hd. cap screw, N.F. thrd., with nut and lockwasher

2шт.

1/2" x 1-1/2" hex hd. cap screw, N.F. thrd., with nut and lockwasher

1шт.

O8250AB

BRACE - fender, front

2шт.

1/2" x 1-1/4" hex hd. cap screw, N.F. thrd., with nut and lockwasher

4шт.

O8251AB

BRACE - fender, rear

2шт.

1/2" x 1-1/2" hex hd. cap screw, N.F. thrd., with nut and lockwasher

4шт.

O9862AB

APRON - fender, R.H. See O10514AB

1шт.

5/16" x 3/4" carr. bolt, with hex nut and lockwasher

5шт.

5/16" x 7/8" hex hd. cap screw, N.F. thrd., with hex nut

1шт.

5/16" no. 4018 - 24 Shakeproof internal - external lockwasher

1шт.

O9863AB

APRON - fender, L.H.

1шт.

5/16" x 3/4" carr. bolt, with hex nut and lockwasher

6шт.

5/16" x 7/8" hex hd. cap screw, N.F. thrd., with hex nut

1шт.

5/16" no. 4018 - 24 Shakeproof internal - external lockwasher

1шт.

O9883AB

BRACE - fender apron

2шт.

5/16" x 7/8" hex hd. cap screw, N.F. thrd., with hex nut and lockwasher

6шт.

1/2" x 1-1/4" hex hd. cap screw, N.C. thrd., with lockwasher

2шт.

O10514AB

APRON - fender, R.H. (Used with hand brake) See O9862AB

1шт.

4614AA

FENDER - R.H. (Includes 2 - O8246AB, 1 - O8247AB and 1 - O8248AB)

1шт.

4615AA

FENDER - L.H. (Includes 2 - O8246Ab, 1 - O8247AB and 1 - O8249AB)

1шт.
