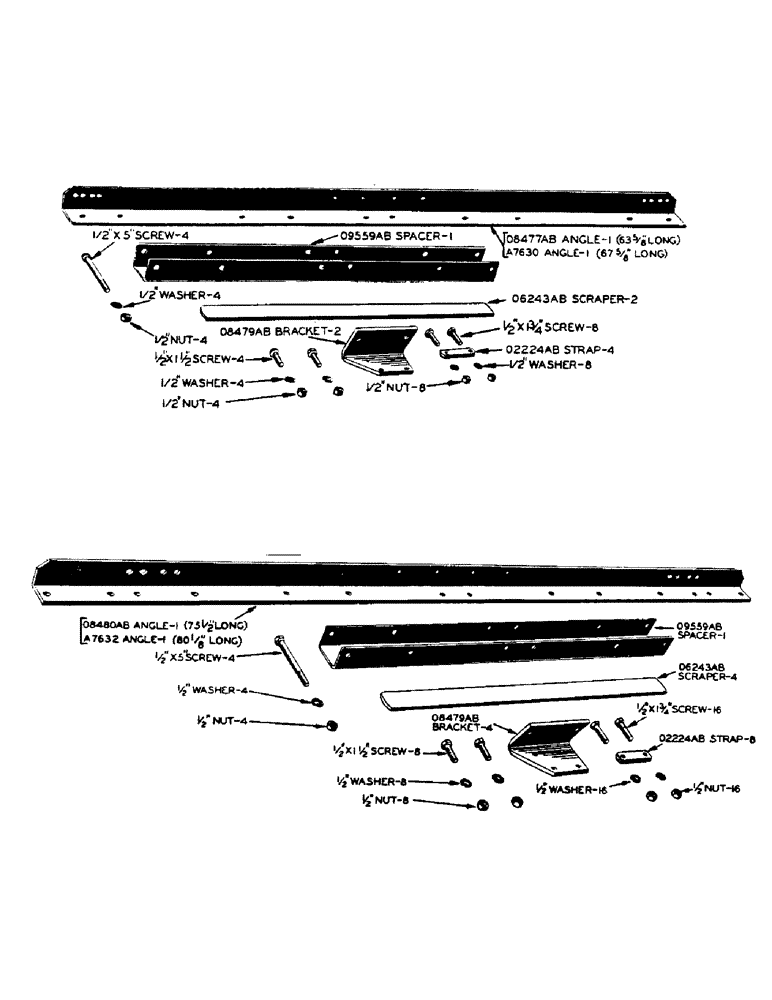

Запчасти Case IH 500-SERIES (070) - SCRAPER FOR 54 INCH STEEL REAR WHEEL (06) - POWER TRAIN

A7630

ANGLE - scraper (67-5/8" long), for A7103 rear wheel. See O8477AB

1шт.

1/2" x 1-1/2" hex hd. cap screw, N.F. thrd., with hex nut and lockwasher

4шт.

A7631M

SCRAPER ATTACHMENT - for A7103, 54" rear wheels. (Machy. item) See 4399AA

1шт.

O2224AB

STRAP - rear wheel scraper

4шт.

O6243AB

SCRAPER - rear wheel (See 4399AA)

2шт.

O8477AB

ANGLE - scraper (63-5/8" long), for 4403AA rear wheel. See A7630

1шт.

O8479AB

BRACKET - rear wheel scraper

2шт.

1/2" x 1-1/2" hex hd. cap screw, N.F. thrd., with hex nut and lockwasher

4шт.

1/2" x 1-3/4" hex hd. cap screw, N.F. thrd., with hex nut and lockwasher

8шт.

O9559AB

SPACER - rear wheel scraper angle

1шт.

1/2" x 5" hex hd. cap screw, N.F. thrd., with hex nut and lockwasher

4шт.

4399AA

SCRAPER ATTACHMENT - for 4403AA, 54" rear wheels. (Machy. item) See A7631

1шт.

A7632

ANGLE - scraper (80-1/8" long), for A7103 54" rear wheel with A7105 or A7365 extensions. See O8480AB

1шт.

1/2" x 1-1/2" hex hd. cap screw, N.F. thrd., with hex nut and lockwasher

4шт.

A7633M

SCRAPER ATTACHMENT - for A7103, 54" rear wheel with A7105 or A7365 extensions. Machy. item. See 4407AA, and extension

1шт.

O2224AB

STRAP - rear wheel scraper, extensiond

8шт.

O6243AB

SCRAPER - rear wheel extension rim (See 4407AA)

4шт.

O8479AB

BRACKET - rear wheel scraper, extension

4шт.

1/2" x 1-1/2" hex hd. cap screw, N.F. thrd., with hex nut and lockwasher

8шт.

1/2" x 1-3/4" hex hd. cap screw, N.F. thrd., with hex nut and lockwasher

16шт.

O8480AB

ANGLE - scraper (75-1/2" long), for 4403AA, 54" rear wheel with 4405AA extension. See A7632, extension

1шт.

O9559AB

SPACER - scraper angle, extension

1шт.

1/2" x 5" hex hd. cap screw, N.F. thrd., with hex nut and lockwasher

4шт.

4407AA

SCRAPER ATTACHMENT - for 4403AA, 54" rear wheel with 4405AA extension. (Machy. item) See A7633

1шт.
