Запчасти Case IH 500-SERIES (069) - STEEL REAR WHEEL, 54 INCH X 11-1/8 INCH (06) - POWER TRAIN

A7103M

WHEEL - steel rear (54" x 11-1/8") Machy. item

2шт.

A5500A

HUB - for 4403AA rear wheel

2шт.

5/8" x 2-1/4" rd. hd. rivet (Rivets, Serial Range: spoke-hub)

28шт.

5/8" x 2-5/8" rd. hd. rivet (Rivets, Serial Range: spoke-hub)

28шт.

4403AA

WHEEL - steel rear (54" x 11-1/8") Use A7103

1шт.

A7105M

EXTENSION - rear wheel (54" x 8") Machy. item, steel

2шт.

O1959AB

STRAP - tie, rear wheel extension, steel (54" X 8")

14шт.

3/4" x 1-3/4" mach. bolt with hex nut and lockwasher (Tie strap to extension)

14шт.

3/4" x 2" mach. bolt with hex nut and lockwasher (Tie strap to rear wheel)

14шт.

3/4" x 2" no. 1 key head old standard plow bolt with hex nut and lockwasher (Tie strap to extension)

14шт.

4405AA

EXTENSION - rear wheel (54" x 8") Use A7105, steel ( 54" X 8")

1шт.

A7365M

EXTENSION - rear wheel (54" x 12") Machy. item, steel ( 54" X 12")

2шт.

O1959AB

STRAP - tie, rear wheel extension, steel ( 54" X 12")

14шт.

3/4" x 1-3/4" mach. bolt with hex nut and lockwasher (Tie strap to extension)

14шт.

3/4" x 2" mach. bolt with hex nut and lockwasher (Tie strap to rear wheel)

14шт.

3/4" x 2" no. 1 key head old standard plow bolt with hex nut and lockwasher

14шт.

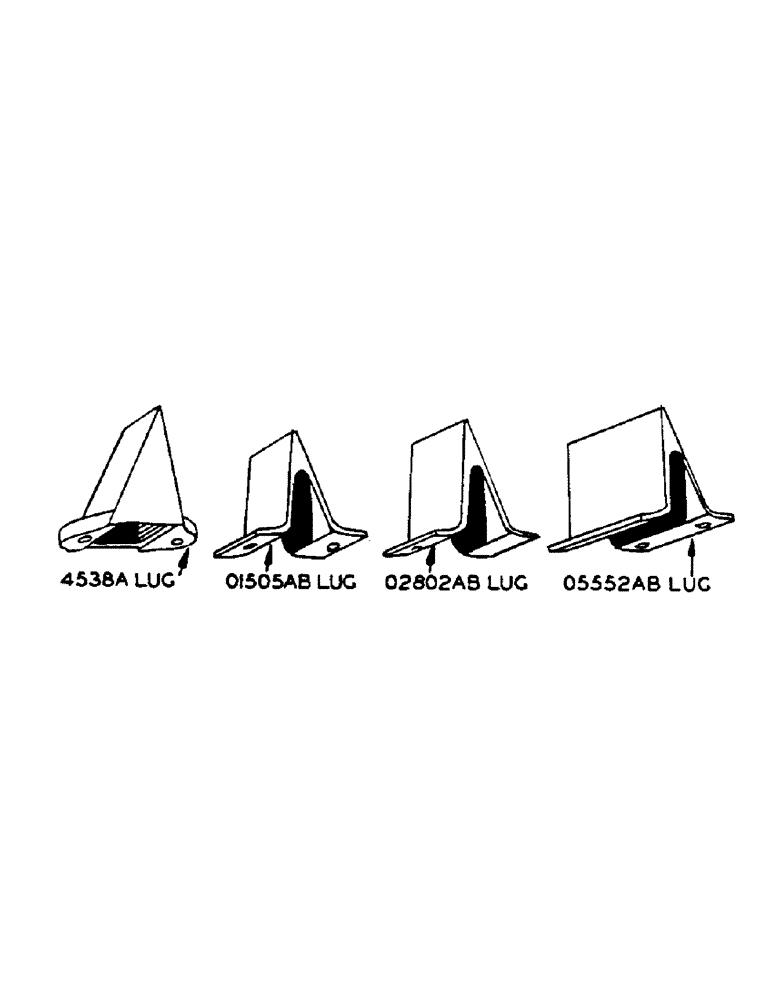

4538A

LUG - 6" cast iron spade, for rear wheel without extension rim. See 45AA, steel ( 54" X 12")

56шт.

3/4" x 2" mach. bolt with hex nut and lockwasher

112шт.

4538A

LUG - 6" cast iron spade, for rear wheel with extension rim. (See 43AA)

28шт.

3/4" x 2" mach. bolt with hex nut and lockwasher

42шт.

3/4" x 2-1/2" mach. bolt with hex nut and lockwasher

14шт.

O1505AB

LUG - steel spade (5" high x 3-1/2" wide) for rear wheel without extension rim (See 46AA)

56шт.

3/4" x 1-1/2" mach. bolt, with hex nut and lockwasher

112шт.

O1505AB

LUG - steel spade (5" high x 3-1/2" wide) for rear wheel with extension rim (See 44AA)

28шт.

3/4" x 1-1/2" mach. bolt with hex nut and lockwasher

42шт.

3/4" x 2" mach. bolt with hex nut and lockwasher

14шт.

O2802AB

LUG - 6" steel spade, for rear wheel without extension rim. (See 489AA)

56шт.

3/4" x 1-1/2" mach. bolt with hex nut and lockwasher

112шт.

O2802AB

LUG - 6" steel spade, for rear wheel with extension rim (See 557AA)

28шт.

3/4" x 1-1/2" mach. bolt with hex nut and lockwasher

42шт.

3/4" x 2" mach. bolt with hex nut and lockwasher

14шт.

O5552AB

LUG - steel spade (6" high x 7" long) See 2733AA

48шт.

3/4" x 1-1/2" mach. bolt with hex nut and lockwasher

192шт.

43AA

LUGS - set of (28) cast iron spade, for rear wheels with extension rims (Consists of: 28 - 4538A lugs with bolts, nuts and lockwashers)

1шт.

44AA

LUGS - set of (28) steel spade for rear wheels with extension rims (Consists of: 28 - O1505AB lugs, with bolts, nut and lockwashers)

1шт.

45AA

LUGS - set of (56) cast iron spade, for rear wheels. (Consists of: 56 - 4538A lugs with bolts, nuts and lockwasher)

1шт.

46AA

LUGS - set of (56) steel spade, for rear wheels (Consists of: 56 - O1505AB lugs with 112 - 3/4" x 1-1/2" mach. bolts, hex nuts and lockwashers)

1шт.

489AA

LUGS - set of (56) steel spade, for rear wheels (Consists of: 56 - O2802AB lugs, bolts, nuts and lockwashers)

1шт.

557AA

LUGS - set of (28) steel spade, for rear wheels with extension rims (Consists of: 28 - O2802AB lugs, with bolts, nuts and lockwashers)

1шт.

2733AA

LUGS - set of (48) steel spade, for rear wheels with extension rims, used in rice fields (Consists of: 48 - O5552AB lugs, with bolts, nuts and lockwashers)

1шт.
