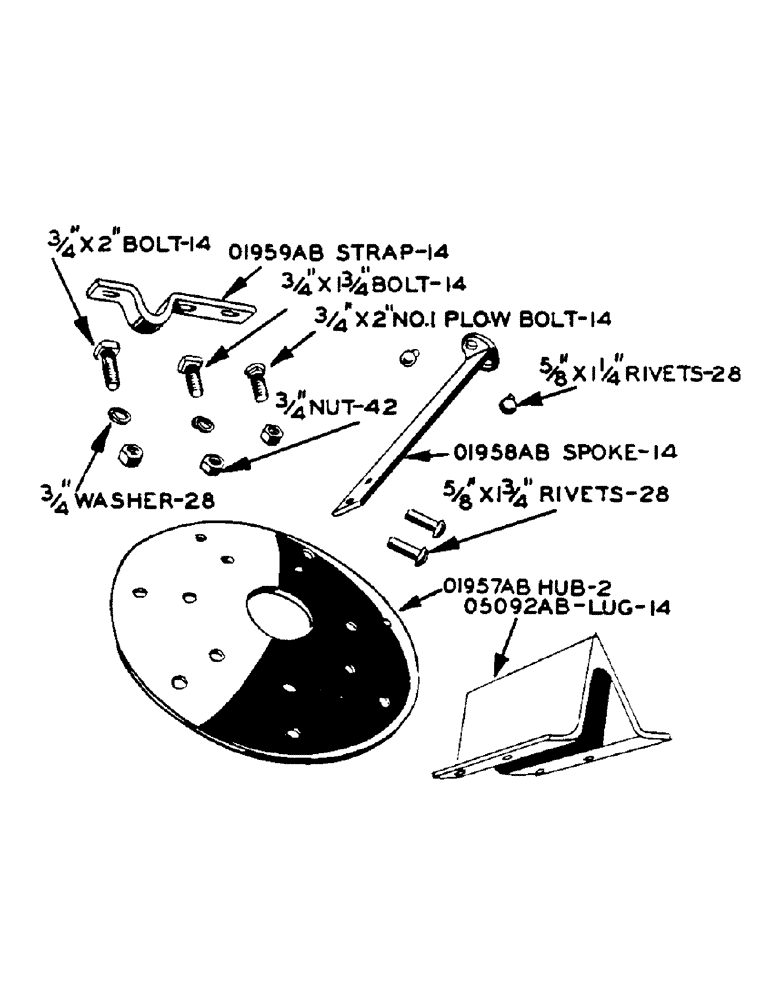

Запчасти Case IH 500-SERIES (068) - EXTENSION RIMS, 48 INCH X 8 INCH FOR REAR WHEELS WITH, CAST OR STEEL SPADE LUGS (06) - POWER TRAIN

O1957AB

HUB - extension rim

2шт.

O1958AB

SPOKE - extension rim

14шт.

5/8" x 1-1/4" rd. hd. rivet, Serial Range: (Spoke-rim)

28шт.

5/8" x 1-3/4" rd. hd. rivet, Serial Range: (Spoke-hub)

28шт.

O1959AB

STRAP - tie, extension rim

14шт.

3/4" x 2" no. 1 key head old standard plow bolt with hex nut (Bolts tie strap to rear wheel)

14шт.

3/4" x 1-3/4" mach. bolt with hex nut - tie strap to extension rim

14шт.

3/4" x 2" mach. bolt with hex nut - tie strap to rear wheel (With steel spade lugs)

14шт.

3/4" x 2-1/2" mach. bolt, with hex nut - tie strap to rear wheel (With cast spade lugs)

14шт.

3/4" std. lockwasher

28шт.

O4283AB

RIM - 48" x 8" extension

2шт.

A41AA

1шт.

RIMS - set of 48" x 8" extension, with tie straps (For rear wheels with cast spade lugs) Consists of: 2 - 3727AA, 14 - O1959Ab, 14 - 3/4" x 1-3/4" mach. bolts with hex nuts, 14 - 3/4" x 2-1/2" mach. bolt with hex nut, 14 - 3/4" x 2" no. 1 key head old standard plow bolt with hex nut and 42 - 3/4" std. lockwashers (Machinery item)

1шт.

A464AA

1шт.

RIMS - set of 48" x 8" extension, with tie straps (For rear wheels with cast spade lugs) Consists of: 2 - 3727AA, 14 - O1959Ab, 14 - 3/4" x 1-3/4" mach. bolts with hex nuts, 14 - 3/4" x 2-1/2" mach. bolt with hex nut, 14 - 3/4" x 2" no. 1 key head old standard plow bolt with hex nut and 42 - 3/4" std. lockwashers (Machinery item)

1шт.

3727AA

RIM - 48" x 8" extension, complete. (Consists of: 1 - O1957AB, 1 - O1958AB, 1 - O4283AB, 14 - 5/8" x 1-1/4" rd. hd. rivets and 14 - 5/8" x 1-3/4" rd. hd. rivet)

2шт.

O1256AB

RIMS - 48" x 12" extension for rear wheels used in rice fields

2шт.

O5092AB

LUG - 6" x 10-1/2", with tie strap , 48" x 12" extension for rear wheels used in rice fields

14шт.

3/4" x 1-1/2" mach. bolt with hex nut and lockwasher

56шт.

A1338AA

RIMS - set of 48" x 12" extension, with 6" x 10-1/2" lugs (Machinery item) Consists of: 2 - O1256AB rims, 14 - O5092AB lugs and 56 - 3/4" x 1-1/2" mach. bolt with hex nut and lockwasher, 48" x 12" extension for rear wheels used in rice fields

1шт.
