Запчасти Case IH 500-SERIES (066) - WEIGHTS FOR REAR WHEELS (06) - POWER TRAIN

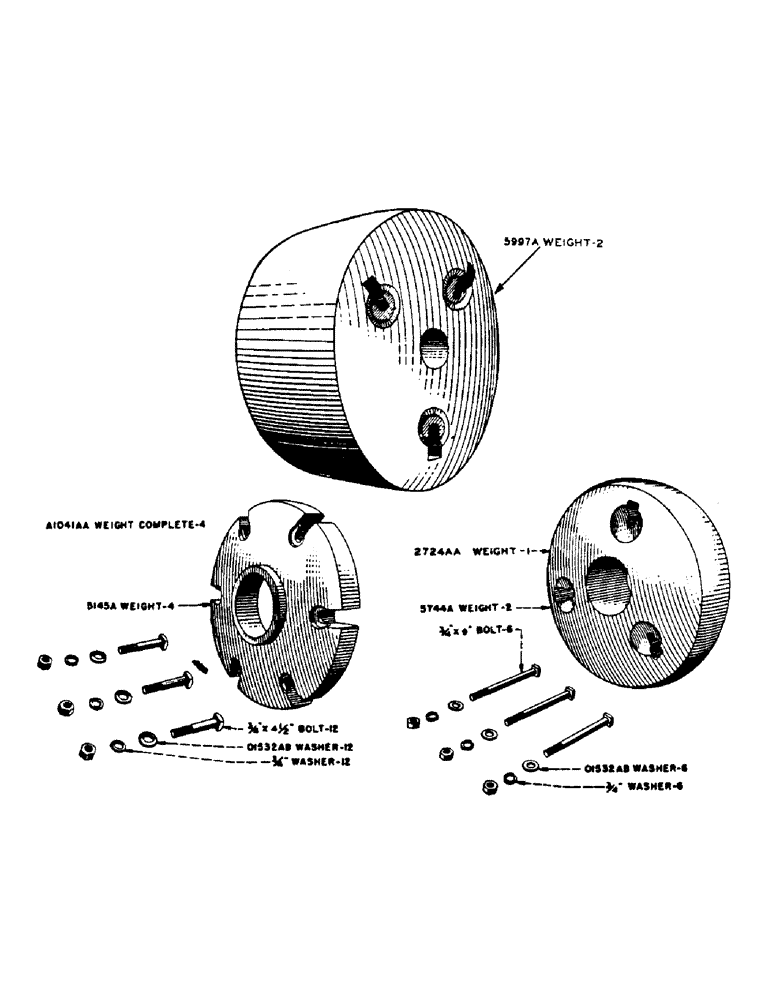

Схема запчастей Case IH 500-SERIES - (066) - WEIGHTS FOR REAR WHEELS (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

5145A

WEIGHT - light. Use A1041AA

1шт.

3/4" x 4-1/2" mach. bolt with hex nut and lockwasher

3шт.

5744A

WEIGHT - heavy. Use 2724AA

1шт.

3/4" x 9" mach. bolt with hex nut and lockwasher

3шт.

5997A

WEIGHT - Use 3632AA

1шт.

3/4" x 14" mach. bolt with hex nut and lockwasher

6шт.

O1532AB

WASHER - rear wheel weight bolt

6шт.

A1041AA

WEIGHT - light, for B5231A or 6396A rear wheel (Machinery item) Consists of 1 - 5145A, 3 - O1532AB, 3 - 3/4" x 4-1/2" mach. bolt with hex nut and lockwasher

4шт.

2724AA

WEIGHTS - set of (2) heavy, for B5231A or 6396A rear wheels. (Machinery item) Consists of: 2 - 5744A, 6 - O1532AB, 6 - 3/4" x 9" mach. bolt with hex nut and lockwasher

1шт.

3632AA

WEIGHTS - set of (2), for 6376A rear wheels (Machinery item) Consists of: 2 - 5997A, 6 - O1532AB, 6 - 3/4" x 14" mach. bolt with hex nut and lockwasher

1шт.

Выбрано товаров: 10
