(065) - REAR WHEELS, SPECIAL FOR RICE, FOR 14-34 AND 15-34 TIRES

Запчасти Case IH 500-SERIES (065) - REAR WHEELS, SPECIAL FOR RICE, FOR 14-34 AND 15-34 TIRES (06) - POWER TRAIN

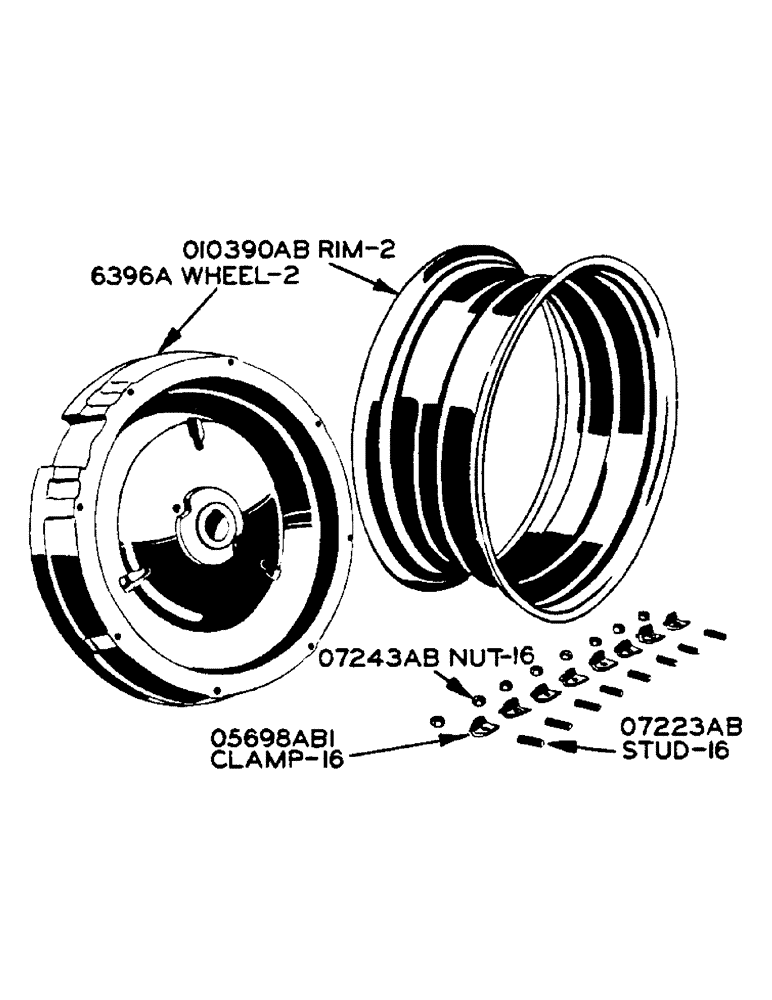

Схема запчастей Case IH 500-SERIES - (065) - REAR WHEELS, SPECIAL FOR RICE, FOR 14-34 AND 15-34 TIRES (06) - POWER TRAIN
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

6396A

WHEEL - rear

2шт.

O5698AB1

X

CLAMP - rear wheel rim (Goodyear no. 55)

16шт.

O7223AB

X

STUD - rear wheel rim

16шт.

O7243AB

X

NUT - rear wheel rim stud

16шт.

O10390AB

RIM - rear wheel (DW14-34 wide base drop center rim with drivers) (Off center deep well) for 14-34 or 15-34 tire

2шт.
