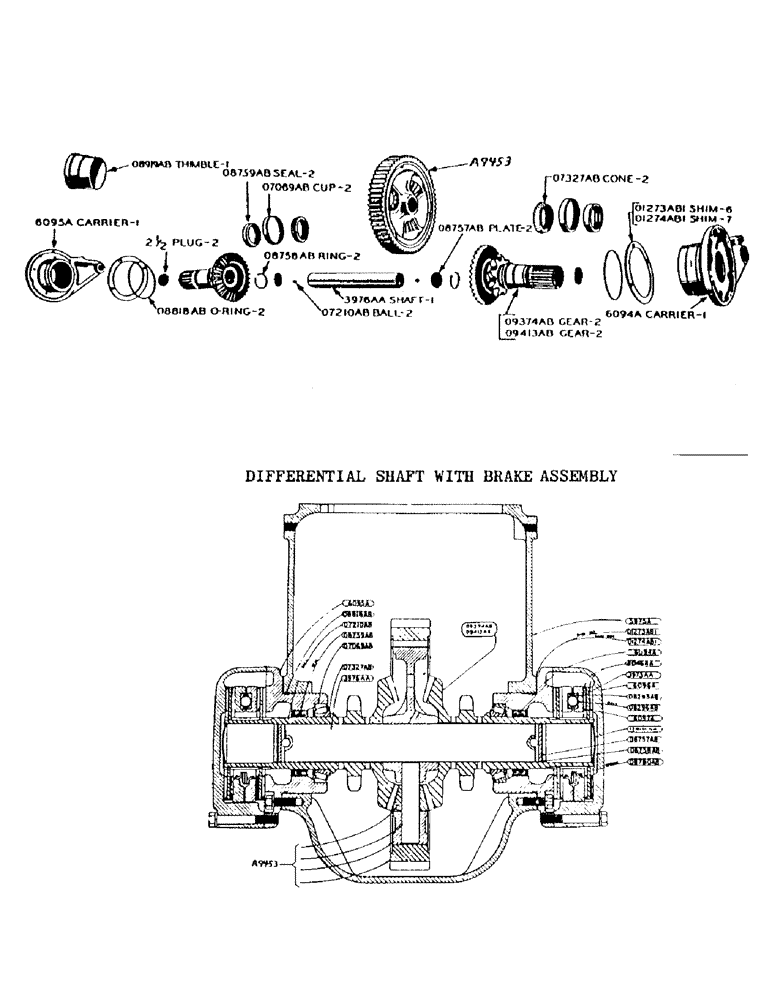

Запчасти Case IH 500-SERIES (056) - DIFFERENTIAL SHAFT (06) - POWER TRAIN

A9453

GEAR - differential ring, assembly (Consists of: 1 - center wheel, 1 - ring gear, 3 - pinions and 3 - pinion pins) (See A4600AA)

1шт.

6093A

WHEEL - differential center. Use A9453

1шт.

6094A

CARRIER - differential bearing, R.H.

1шт.

1/2" x 1-1/4" hex hd. cap screw, N.C. thrd., with lockwasher

4шт.

1/8" str. Lincoln fitting, no. 5000

1шт.

6095A

CARRIER - differential bearing, L.H.

1шт.

1/2" x 1-1/4" hex hd. cap screw, N.C. thrd., with lockwasher

4шт.

1/8" str. Lincoln fitting, no. 5000

1шт.

O1273AB1

SHIM - differential shaft bearing carrier, .012" thick

6шт.

O1274AB1

SHIM - differential shaft bearing carrier, .005" thick

7шт.

O7069AB

X

CUP - differential bearing (Timken no. 27620)

2шт.

O7210AB

X

BALL - differential shaft

2шт.

O7327AB

X

CONE - differential bearing (Timken no. 27690)

2шт.

O8757AB

X

PLATE - differential shaft bearing

2шт.

O8758AB

X

RING - differential shaft bearing plate retaining

2шт.

O8759AB

X

OIL SEAL - differential bering tandem

2шт.

O8761AB

BOLT - differential brake bearing carrier anchor

2шт.

1/2" hex nut, light, N.F. thrd., with lockwasher and U.S. std. washer

4шт.

O8818AB

X

"O" RING - differential bearing carrier

2шт.

O8919AB

THIMBLE - for installing O8759AB oil seal on O9374AB or O9413AB differential gear and sprocket

1шт.

O9374AB

GEAR - differential, with 9 tooth sprocket. (For 1-3/4" pitch roller chain) Prior to tractor no. 8035993, except tractor no. 8035722 to and including no. 8035737, which were shipped export. See O9413AB

2шт.

2-1/2" Welch plug

2шт.

O9413AB

GEAR - differential, with 8 tooth sprocket. (For 2" pitch roller chain) Tractor no. 8035722 to and including no. 8035737 and after no. 8035992. See O9374AB

2шт.

2-1/2" Welch plug

2шт.

3976AA

SHAFT - differential, with balls

1шт.

A4600AA

GEAR - differential ring, assembly (Consists of: 1 - center wheel, 1 - ring gear, 3 - pinion, 3 - pinion pins and 3 - rivets) (Use A9453)

1шт.
