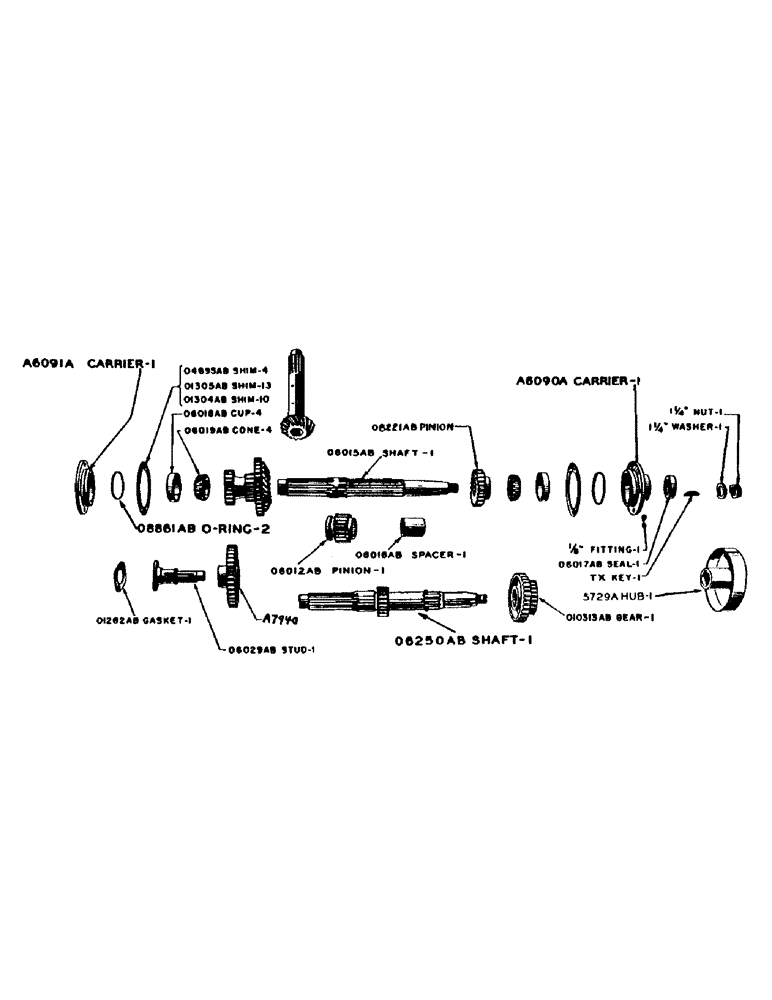

Запчасти Case IH 500-SERIES (052) - BELT PULLEY SHAFT (06) - POWER TRAIN

A7940

GEAR - reverse idler w/bushing

1шт.

5729A

HUB - belt pulley, and brake drum

1шт.

No. TX Woodruff key

1шт.

A6090A

CARRIER - belt pulley shaft bearing, R.H.

1шт.

1/2" x 1-1/4" hex hd. cap screw, N.C. thrd., with lockwasher

4шт.

1/8" str. Lincoln fitting, no. 5000

1шт.

A6091A

PIN

CARRIER - belt pulley shaft bearing, L.H.

1шт.

1/2" x 1-1/4" hex hd. cap screw, N.C. thrd., with lockwasher

4шт.

O1282AB

GASKET - reverse idler gear stud

1шт.

O1304AB

SHIM - belt pulley shaft bearing carrier, R.H. and L.H., no. 28 gauge

10шт.

O1305AB

SHIM - belt pulley shaft bearing carrier, R.H. and L.H., .005" thick

13шт.

O4695AB

SHIM - belt pulley shaft bearing carrier, .003" thick

4шт.

O6012AB

PINION - low speed (16 teeth)

1шт.

O6015AB

SHAFT - belt pulley

1шт.

1-1/4" hex jam nut, light, N.F. thrd., and lockwasher

1шт.

No. TX Woodruff key

1шт.

O6016AB

SPACER - belt pulley shaft

1шт.

O6017AB

OIL SEAL

- belt pulley shaft

1шт.

O6018AB

CUP

- belt pulley shaft bearing (Timken no. 33821)

2шт.

O6019AB

ROLLER BEARING

CONE - belt pulley shaft bearing (Timken no. 33890)

2шт.

O6028AB

GEAR - reverse idler (Use A7940)

1шт.

O6029AB

STUD - reverse idler gear

1шт.

1/2" x 1-1/4" hex hd. cap screw, N.C. thrd., with lockwasher

2шт.

O7628AB

GAUGE - for setting spiral bevel pinion

1шт.

O8221AB

PINION - third speed (24 teeth)

1шт.

O8861AB

X

"O" RING - belt pulley shaft bearing carrier, R.H. or L.H.

2шт.

O6250AB

SHAFT - belt pulley, with low speed pinion, gear combination for use w/ tracs equipped w/ rubber tires

1шт.

O10313AB

GEAR - low-low and third speed sliding (49 and 37 teeth), combination for use w/ tracs equipped w/ rubber tires

1шт.
