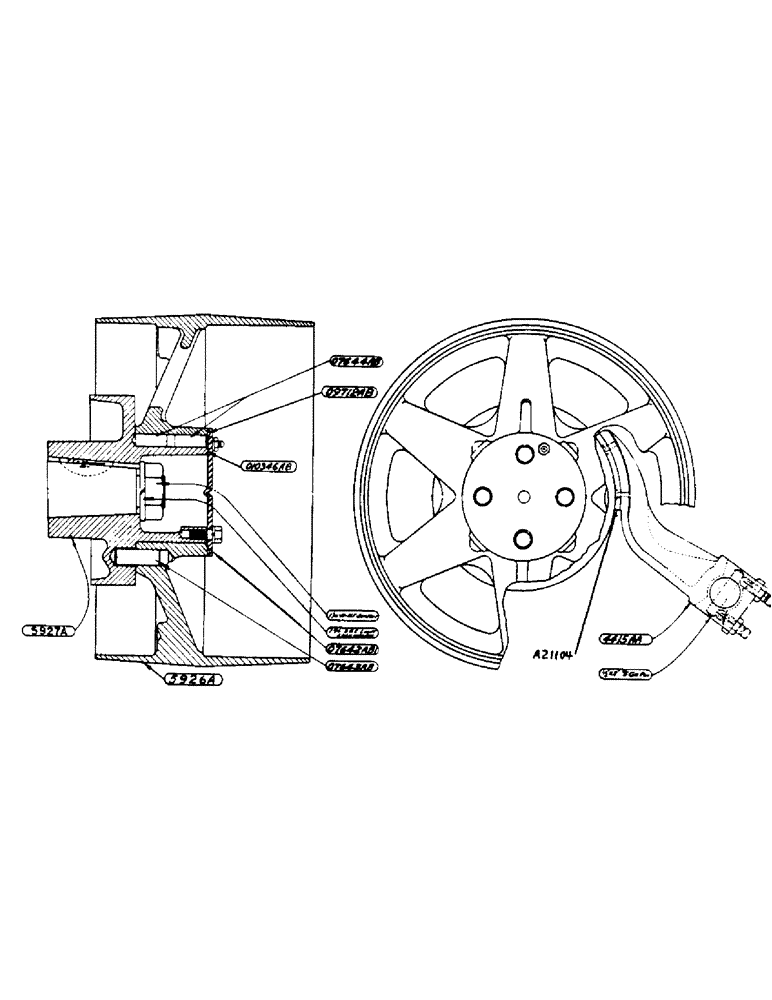

Запчасти Case IH 500-SERIES (051) - BELT PULLEY (06) - POWER TRAIN

A21104

LINING

- brake shoe with 9/64" x 10/16" brass tubular rivet no. 2561 (See O6153AB)

1шт.

5926A

PULLEY - belt (13" dia. x 8-1/4" face)

1шт.

5927A

HUB - belt pulley, and brake drum

1шт.

No. TX Woodruff key

1шт.

6235A

SHOE - belt pulley brake. Use 4415AA

1шт.

O6153AB

X

LINING - brake shoe (Use A21104)

1шт.

.146" x 10/16" brass tubular rivet, no. 2561

4шт.

O7642AB1

PLATE - belt pulley

1шт.

1/8" str. Lincoln fitting no. 5000

1шт.

3/8" x 7/8" hex hd. cap screw, N.C. thrd., with lockwasher

4шт.

O7643AB

PIN - belt pulley driving

4шт.

O7644AB

RUBBER - belt pulley

8шт.

O9712AB

X

"O" RING - for belt pulley plate

1шт.

O10346AB

SHIM - belt pulley .005" thick

3шт.

4415AA

SHOE - belt pulley brake, with lining

1шт.

3/8" x 1-1/2" flat point set screw, N.C. thrd., with hex jam nut

2шт.
