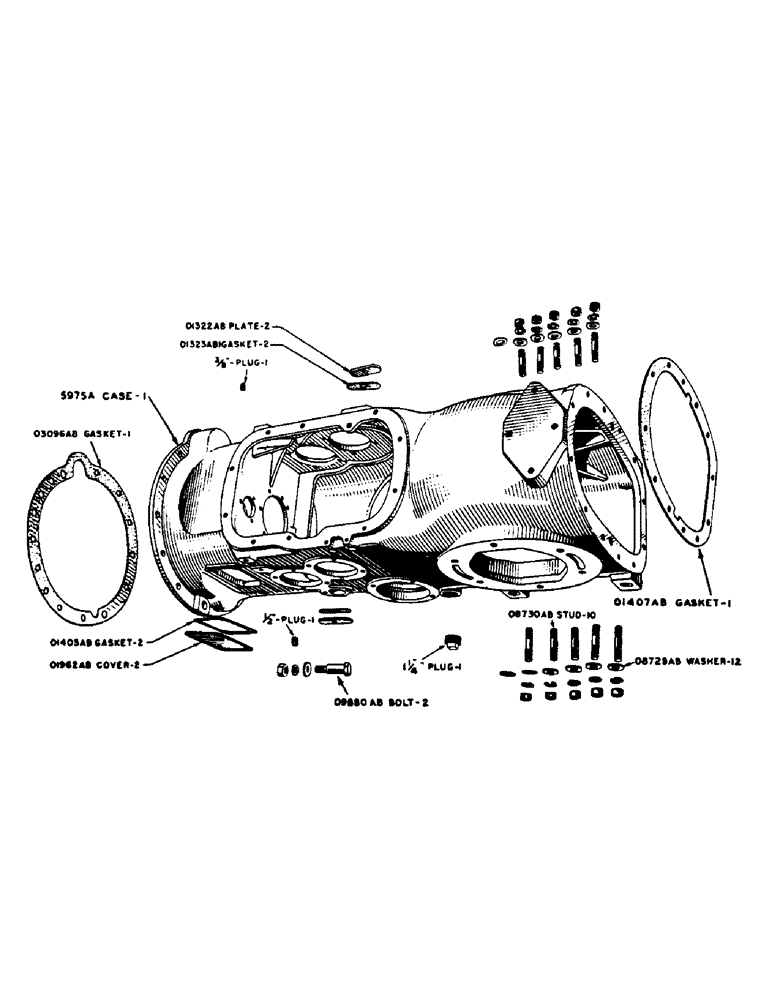

Запчасти Case IH 500-SERIES (050) - TRANSMISSION CASE (06) - POWER TRAIN

5975A

CASE - transmission

1шт.

3/8" ctsk. headless pipe plug

1шт.

1/2" sq. hd. pipe plug

1шт.

1-1/4" sq. hd. pipe plug

1шт.

5/8" x 1-3/4" hex hd. cap screw, N.c. thrd., with lockwasher (Transmission case to cylinder block)

4шт.

5/8" x 2-1/4" hex hd. cap screw, N.F. thrd., with nut and lockwasher (Transmission case to cylinder block)

3шт.

O1322AB

PLATE - shifter shaft end

2шт.

1/2" x 1-1/4" hex hd. cap screw, N.C. thrd., with lockwasher

2шт.

O1323AB1

X

GASKET - shifter shaft end plate

2шт.

O1405AB

X

GASKET - clutch hand hole cover

2шт.

O1407AB

X

GASKET - transmission case rear cover

1шт.

O1962AB

COVER - clutch hand hole

2шт.

1/2" x 3/4" hex hd. cap screw, N.C. thrd., with lockwasher

8шт.

O3096AB

X

GASKET - engine to transmission case

1шт.

O8729AB

X

WASHER - rear axle housing stud

12шт.

O8730AB

STUD - rear axle housing (3/4" x 3-3/8" long)

10шт.

3/4" hex nut, light, N.F. thrd., with lockwasher

10шт.

O9880AB

BOLT - transmission and cylinder block flange

2шт.

5/8" hex nut, light, N.F. thrd., with lockwasher and plain washer

2шт.
