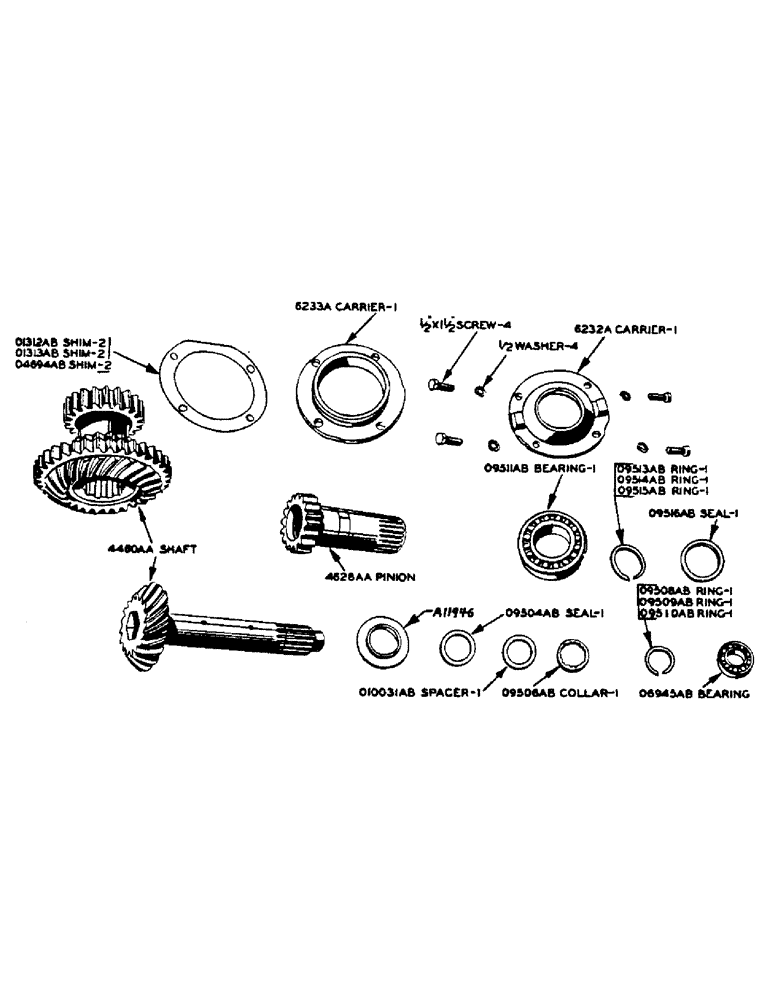

Запчасти Case IH 500-SERIES (048) - CLUTCH SHAFT PRIOR TO SERIAL NUMBER 8060852 (06) - POWER TRAIN

A11946

WASHER

- thrust, clutch shaft and power take off pinion

1шт.

6232A

CARRIER - clutch shaft bearing, front

1шт.

1/2" x 1-1/2" hex hd. cap screw, N.C. thrd., with lockwasher

4шт.

6233A

CARRIER - clutch shaft bearing, rear

1шт.

O1312AB

SHIM - clutch shaft bearing carrier, .012" gauge

2шт.

O1313AB

SHIM - clutch shaft bearing carrier, .005" thick

2шт.

O4694AB

SHIM - clutch shaft bearing carrier, .003" thick

2шт.

O6945AB

X

BEARING - clutch shaft pilot, flywheel end. (New Departure no. 8506)

1шт.

O9504AB

X

OIL SEAL - clutch shaft

1шт.

O9506AB

X

COLLAR - clutch shaft thrust

1шт.

O9508AB

SNAP RING - clutch shaft, .0835" thick

1шт.

A27758

SNAP RING

- clutch shaft (.0805" thk)

1шт.

O9510AB

X

SNAP RING - clutch shaft, .0765" thick

1шт.

O9511AB

BEARING - clutch shaft, rear end. (New Departure no. 45212XY) See note

1шт.

O9513AB

SNAP RING - clutch shaft bearing retaining, .096" thick

1шт.

O9514AB

SNAP RING - clutch shaft bearing retaining, .0975" thick

1шт.

O9515AB

SNAP RING - clutch shaft bearing retaining, .0990" thick

1шт.

O9516AB

OIL SEAL - clutch shaft bearing

1шт.

O10031AB

X

LEATHER SPACER - on clutch shaft, between O9503AB flanged bushing and O9504AB oil seal

1шт.

4460AA

X

SHAFT - clutch, with pinion and transmission bevel gear. See note

1шт.

4628AA

PINION - PTO drive, and sleeve, with bushings. See note

1шт.
