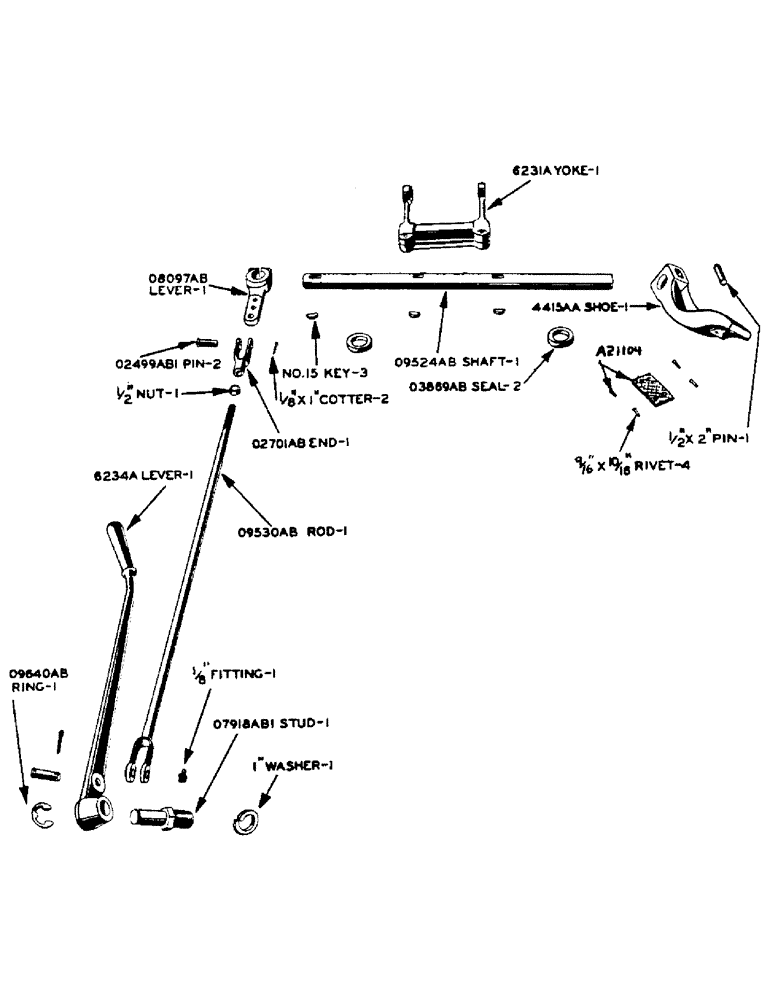

Запчасти Case IH 500-SERIES (047) - CLUTCH THROWOUT PARTS (06) - POWER TRAIN

A21104

LINING

- brake shoe with 4-9/64" x 10/16" brass tubular rivets (See O6153AB)

1шт.

6231A

YOKE - clutch throwout

1шт.

3/8" x 1-1/2" hex hed. cap screw, N.C. thrd., with lockwasher

2шт.

6234A

LEVER - clutch throwout

1шт.

1/8" str. Lincoln fitting no. 5000

1шт.

6235A

SHOE - belt pulley brake. Use 4415AA

1шт.

O2499AB1

X

PIN - yoke end, clutch throwout rod

2шт.

1/8" x 1" cotter pin

2шт.

O2701AB

X

END - yoke, for O9530AB clutch throwout rod

1шт.

O3869AB

X

OIL SEAL - clutch throwout shaft

2шт.

O6153AB

X

LINING - brake shoe (Use A21104)

1шт.

O7918AB1

STUD - clutch throwout lever

1шт.

1" std. lockwasher

1шт.

O8097AB

LEVER - clutch throwout shaft

1шт.

1/2" x 2-1/2" hex hd. cap screw, N.F. thrd., with nut and lockwasher

1шт.

O9524AB

SHAFT - clutch throwout

1шт.

No. 15 Woodruff key

3шт.

1/2" x 2" type 5, groove pin

1шт.

O9530AB

ROD - clutch throwout

1шт.

1/2" hex nut, light, N.F. thread

1шт.

O9640AB

X

"E" RING - retaining, clutch throwout lever stud

1шт.

4415AA

SHOE - belt pulley brake, with lining

1шт.

3/8" x 1-1/2" flat point set screw, N.C. thrd., with hex jam nut

2шт.
