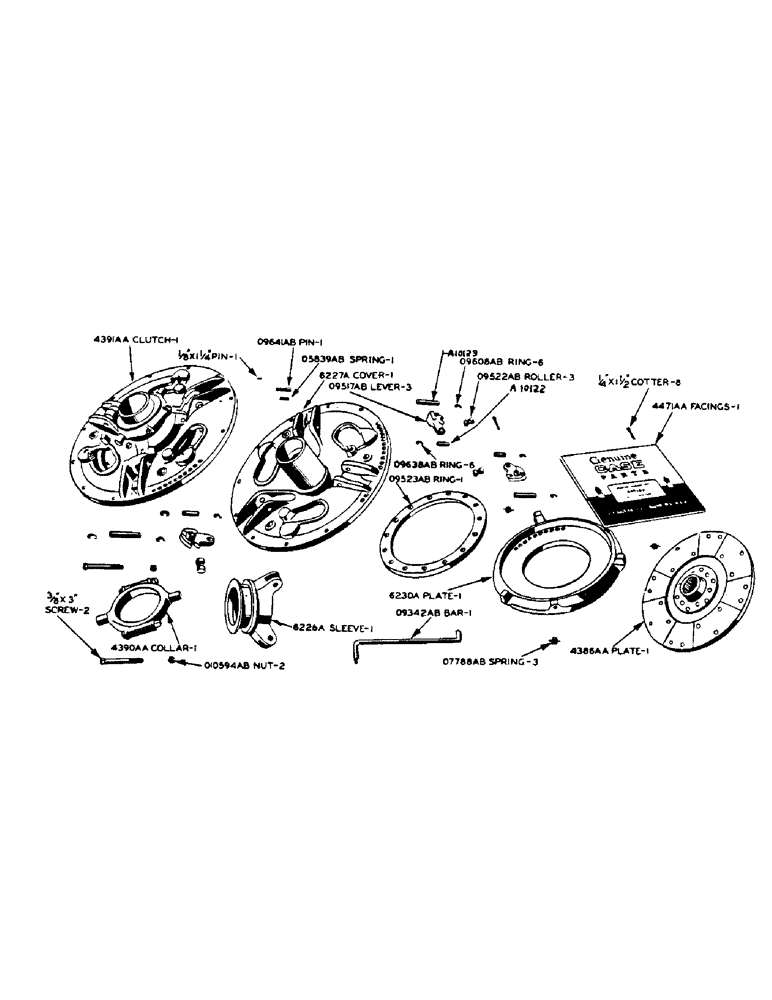

Запчасти Case IH 500-SERIES (046) - ENGINE HAND CLUTCH (06) - POWER TRAIN

A10122

PIN - clutch lever guide

3шт.

1/8" x 3/4" cotter pin

3шт.

A10123

PIN - clutch lever pivot

3шт.

1/8" x 3/4" cotter pin

3шт.

6227A

PLATE - clutch cover

1шт.

3/8" x 1-1/4" hex hd. cap screw, N.C. thrd., with lockwasher (Fastens, Serial Range: plate-flywheel)

12шт.

6228A

SLEEVE - clutch sliding

1шт.

6229A

COLLAR - clutch sliding sleeve. Use 4390AA

1шт.

6230A

PLATE - clutch pressure

1шт.

O5839AB

X

SPRING - clutch adjusting lock pin

1шт.

O7788AB

SPRING

- clutch release

3шт.

O9342AB

BAR - clutch adjusting

1шт.

O9517AB

LEVER - clutch

3шт.

O9522AB

ROLLER - clutch lever

3шт.

O9523AB

RING - clutch adjusting

1шт.

O9608AB

X

"E" RING - retaining, clutch lever pivot pin (Use with old style pin only)

6шт.

O9638AB

RING

"E" RING - retaining, clutch lever guide pin (Use with old style pin only)

6шт.

O9641AB

PIN - clutch adjusting ring lock

1шт.

1/8" x 1-1/4" type 5, groove pin

1шт.

O10594AB

X

NUT - 3/8" elastic stop, for cap screw in 4390AA collar

2шт.

4386AA

X

PLATE - clutch driving, with facings

1шт.

4390AA

COLLAR - clutch sliding sleeve (Consists of: 2 - 6229A, 2 - 3/8" x 3" hex hd. cap screw, N.F. thrd. with 2 - O10594AB nut)

1шт.

4391AA

CLUTCH COMPLETE - less driving plate

1шт.

4471AA

KIT

FACINGS - set of clutch, with rivets for 4386AA clutch driving plate. (Consists of: 2 - facings and 20 - 3/16" x 15/32" long, brass tubular rivets)

1шт.
