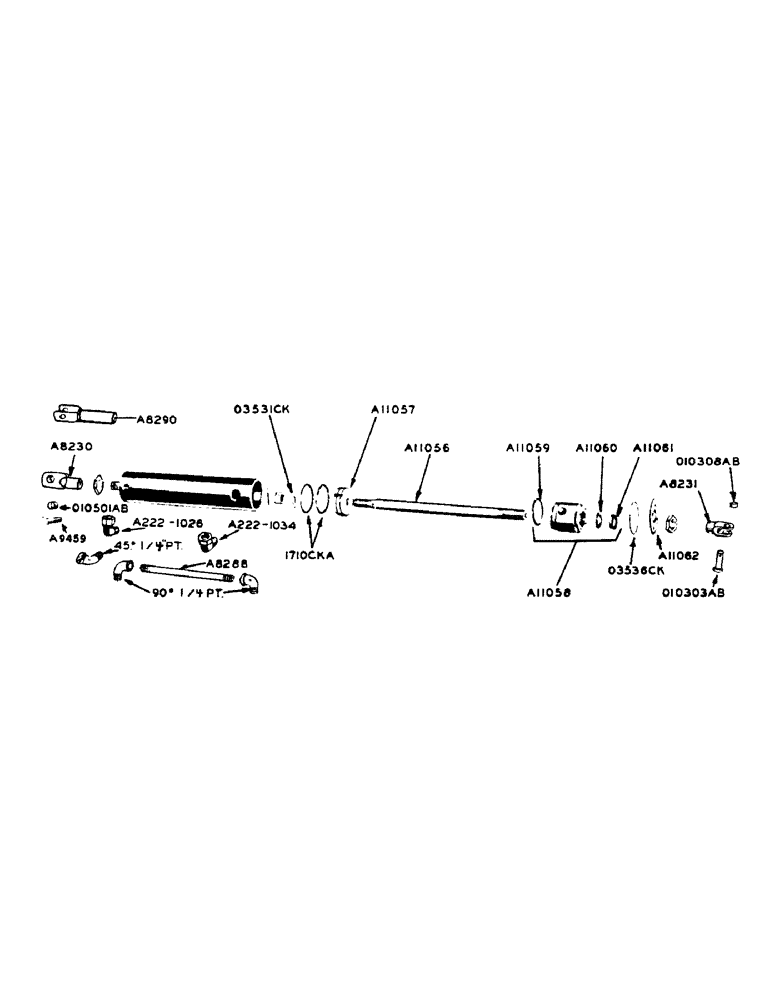

Запчасти Case IH 500-SERIES (094) - HYDRAULIC POWER STEERING, CYLINDER NUMBER A8227, 2-1/8 DIAMETER (05) - STEERING

A222-1026

ELBOW - male 90 degree - 3/8" x 1/4" P.T. inverted flare (Lengthwise mounted cylinder)

1шт.

A222-1034

ELBOW - male 45 degree - 3/8" x 1/4" P.T. inverted flare (Lengthwise mounted cylinder)

1шт.

A8227

CYLINDER - power steering, Includes: P/N's A11056, A11057, A11059, A11060, A11061, A11062, 03531CK, 03536CK, 1710CKA 2-1/8" dia.

1шт.

5/8" N.C. hex jam nut

2шт.

90 degree street elbow 1/4" P.T. (Crosswise mounted cylinder)

2шт.

45 degree street elbow 1/4" P.T. (Crosswise mounted cylinder)

1шт.

A8230

END - male yoke, w/bushing (Lengthwise mounted cylinder)

1шт.

A8231

END - female yoke

1шт.

A8288

PIPE - cylinder, 10-5/8" x 1/4" P.T. (Crosswise mounted cylinder)

1шт.

A8289

CLAMP - for A8288, Serial Range: pipe-cylinder

1шт.

3/16" x 1" machine screw w/nut and lockwasher

1шт.

A8290

END - female yoke (Crosswise mounted cylinder)

1шт.

A9459

BOLT - mounting (Lengthwise mounted cylinder) Use with A8230 end and A9462 arm

1шт.

A11056

ROD - piston

1шт.

Part of Power Steering Cylinder P/N A8227

1шт.

1/2" slotted hex nut, N.F.

1шт.

3/32" x 1" cotter pin

1шт.

A11057

PISTON

1шт.

Part of Power Steering Cylinder P/N A8227

1шт.

A11058

KIT - bearing and seal assembly (Consists of 1 - A11059 "o" ring, 1 - A11060 "o" ring and 1 - A11061 oil seal)

1шт.

A11059

O-RING

"O" RING - bearing and seal

1шт.

Part of Cylinder power steering P/N A8277

1шт.

A11060

O-RING

"O" RING - piston rod

1шт.

Part of Power Steering Cylinder P/N A8227

1шт.

A11061

SEAL

OIL SEAL - piston rod

1шт.

Part of Power Steering Cylinder P/N A8227

1шт.

A11062

PLATE - end

1шт.

Part of Power Steering Cylinder P/N A8227

1шт.

#10-24 x 1/2" rhd. mach. screw w/lockwasher

4шт.

CT2545S

X

NUT - for A9459 bolt

1шт.

O10303AB

X

PIN - for A8231 yoke end

1шт.

1/8" x 1-1/4" cotter pin

1шт.

O10308AB

X

BUSHING FOR A8231 YOKE END

1шт.

O10501AB

X

BUSHING FOR A8230 YOKE END

1шт.

O3531CK

WASHER - piston rod

1шт.

Part of Power Steering Cylinder P/N A8227

1шт.

O3536CK

LOCK RING - bearing and seal

1шт.

Part of Power Steering Cylinder P/N A8227

1шт.

1710CKA

PACKAGE

RING - piston (Set of 2)

1шт.

Part of Power Steering Cylinder P/N A8227

1шт.
