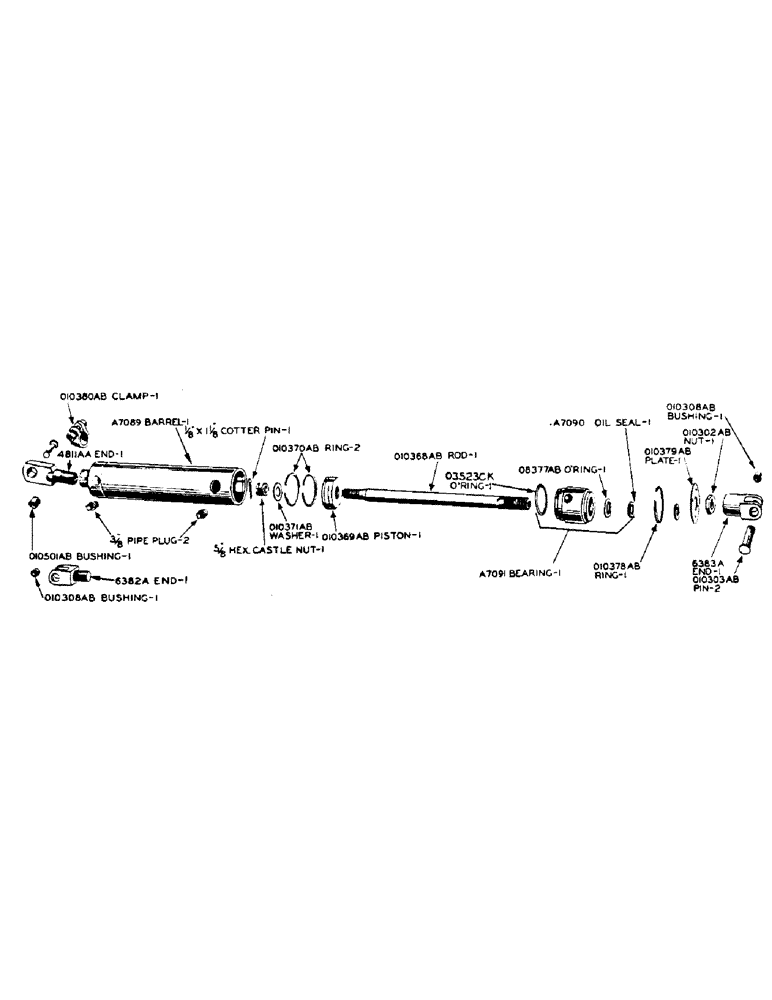

Запчасти Case IH 500-SERIES (093) - HYDRAULIC POWER STEERING CYLINDER NUMBER A4745AA, 2-5/8 INCH DIAMETER (05) - STEERING

A7089

SHIELD

BARREL - cylinder, power steering

1шт.

Part of Power Steering Cylinder Assembly P/N A4745AA

1шт.

A7090

OIL SEAL

- piston rod, power steering cylinder

1шт.

Part of Power Steering Cylinder Assembly P/N A4745AA

1шт.

A7091

COTTER PIN

KIT - bearing and seal assembly, power steering cylinder

1шт.

Part of Power Steering Cylinder Assembly P/N A4745AA

1шт.

6382A

END - yoke, male, power steering cylinder. Crosswise mounted cylinder. See 4811AA

1шт.

6383A

END - yoke, female, power steering cylinder

1шт.

O8377AB

X

"O" RING - piston rod

1шт.

Part of Power Steering Cylinder Assembly P/N A4745AA

1шт.

O10302AB

NUT - jam, power steering cylinder female yoke end

1шт.

O10303AB

X

PIN - for 6382A and 6383A yoke ends. Crosswise mounted cylinder

2шт.

1/8" x 1-1/4" cotter pin

2шт.

O10303AB

X

PIN - for 6383A yoke end. Lengthwise mounted cylinder

1шт.

1/8" x 1-1/4" cotter pin

1шт.

O10308AB

X

BUSHING - for 6382A and 6383A yoke ends and O10303AB pins. Crosswise mounted cylinder

2шт.

O10308AB

X

BUSHING - for 6383A yoke end and O10303AB pin. Lengthwise mounted cylinder. See O10501AB

1шт.

O10368AB

ROD - piston, for power steering cylinder

1шт.

Part of Power Steering Cylinder Assembly P/N A4745AA

1шт.

5/8" hex castle nut

1шт.

1/8" x 1-1/8" cotter pin

1шт.

O10369AB

PISTON - power steering cylinder

1шт.

Part of Power Steering Cylinder Assembly P/N A4745AA

1шт.

A10370AB

RING - piston, power steering cylinder

2шт.

Part of Power Steering Cylinder Assembly P/N A4745AA

1шт.

O10371AB

WASHER - piston rod, power steering cylinder

1шт.

Part of Power Steering Cylinder Assembly P/N A4745AA

1шт.

O10378AB

LOCK RING - bearing and seal, power steering cylinder

1шт.

Part of Power Steering Cylinder Assembly P/N A4745AA

1шт.

O10379AB

PLATE - end, for power steering cylinder

1шт.

Part of Power Steering Cylinder Assembly P/N A4745AA

1шт.

1/4" x 5/8" rd. hd. mach. screw, N.C. thrd., with lockwasher

4шт.

O10380AB

CLAMP ASSEMBLY - power steering cylinder

1шт.

Part of Power Steering Cylinder Assembly P/N A4745AA

1шт.

O10501AB

X

BUSHING - for 4811AA end. See O10308AB

1шт.

O3523CK

X

"O" RING - bearing and seal, power steering cylinder

1шт.

Part of Power Steering Cylinder Assembly P/N A4745AA

1шт.

A4745AA

ASSY. power steering, Includes: P/N's A7089, A7090, A7091, 08377AB, 010368AB, 010369AB, A10370AB, 010371AB, 010378AB, 010379AB, 010380AB, 03523CK and (2-5/8" dia.)

1шт.

3/8" x 1/4" pipe reducing bushing

2шт.

3/8" - 90 degree street elbow

2шт.

4811AA

END - male, with O10501AB bushing for power steering cylinder. Lengthwise mounted cylinder. See 6382A

1шт.
