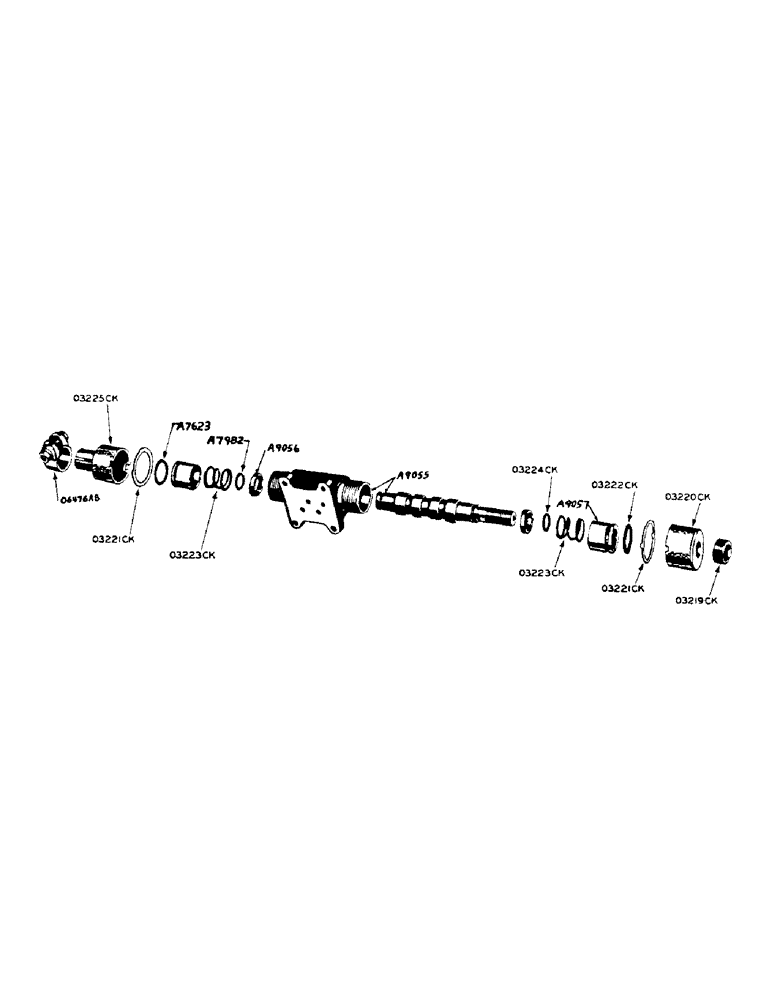

Запчасти Case IH 500-SERIES (091) - HYDRAULIC POWER STEERING, PARTS FOR 4744AA DRAG LINK VALVE (05) - STEERING

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - between gland and valve body

2шт.

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

"O" RING - between valve spool and gland

2шт.

A9055

VALVE BODY AND SPOOL

1шт.

A9056

RING

- valve reaction

2шт.

A9057

GLAND - valve

2шт.

O6476AB

X

CLAMP - power steering valve

2шт.

3/8" x 1-5/8" hex hd. cap screw, N.C. thrd., with nut and lockwasher

2шт.

O3219CK

SEAL - end cover

1шт.

O3220CK

COVER - end

1шт.

O3221CK

LOCK RING - end cover

2шт.

O3223CK

SPRING - power steering valve

2шт.

O3225CK

COVER - end, and reducer

1шт.
