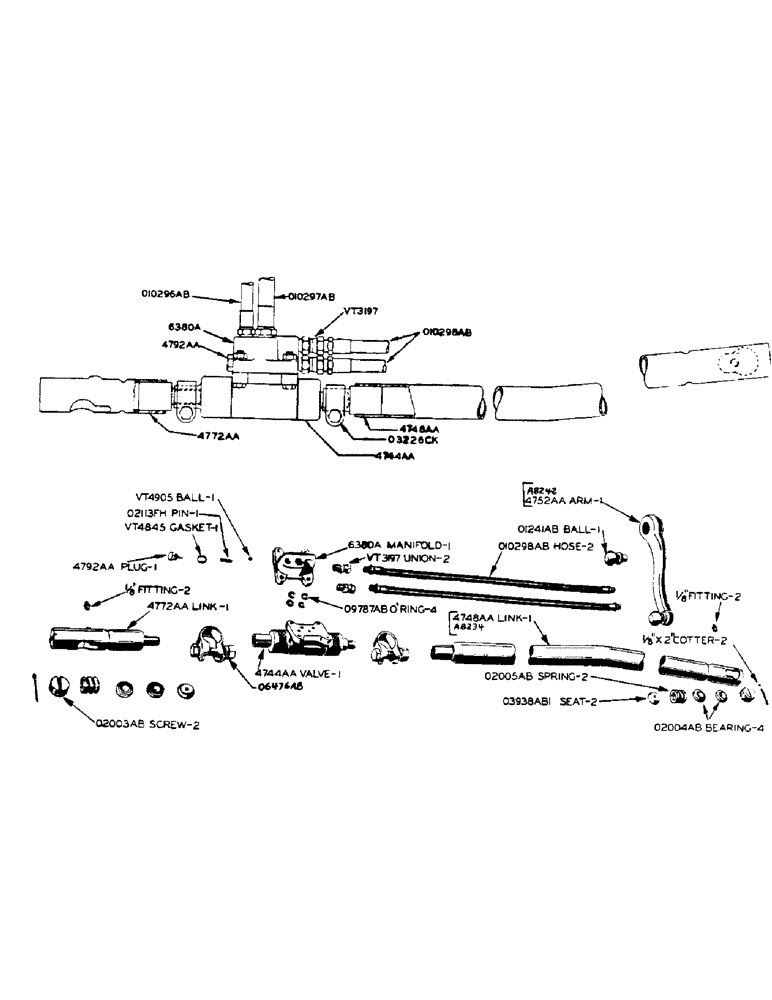

Запчасти Case IH 500-SERIES (089) - HYDRAULIC POWER STEERING DRAG LINK, PRIOR TO TRACTOR NUMBER 808719 (05) - STEERING

A8242

ARM - steering drop, 12-5/8" from center of hole to center of ball, use with A8234 drag link (See 4752AA)

1шт.

A8234

LINK - rear drag, straight type, use with A8242 arm

1шт.

6380A

MANIFOLD - power steering valve

1шт.

5/16" x 1-1/2" hex hd. cap screw, N.F. thrd., with hex nut and lockwasher

4шт.

O1241AB

BALL - steering drop arm

1шт.

O2003AB

X

SCREW - adjusting, for 4772AA or 4748AA front or rear drag link end

2шт.

1/8" x 2" cotter pin

2шт.

O2004AB

BEARING - for 4772AA or 4748AA front or rear drag link end

4шт.

O2005AB

X

SPRING - for 4772AA or 4748AA front or rear drag link end

2шт.

O3938AB1

X

SEAT AND SPACER - for 4772AA or 4748AA front or rear drag link end

2шт.

O9787AB

X

"O" RING - power steering valve manifold

4шт.

O10298AB

HOSE - power steering valve to cylinder (1/4" inside dia. x 25-3/4" long) Cross mounted cylinder. See O10505AB and O10506AB hose

2шт.

O10505AB

HOSE - power steering valve to cylinder (1/4" inside dia. x 17" long) Lengthwise mounted cylinder. See O10298AB

1шт.

O10506AB

HOSE - power steering valve to cylinder (1/4" inside dia. x 13" long) Lenghtwise mounted cylinder. See O10298AB

1шт.

O2113FH

X

ROLL PIN - for 4792AA ball check plug (3/32" x 7/8")

1шт.

VT3197

UNION - 1/4" male str. adapter, connects O10298AB hose to 6380A manifold

2шт.

VT4845

X

GASKET - ball check plug

1шт.

VT4905

X

BALL - 5/16" dia. steering manifold ball check

1шт.

4744AA

X

VALVE ASSEMBLY - power steering drag link

1шт.

4748AA

LINK - power steering drag, rear (Curved type) Use A8234 drag link and A8242 arm

1шт.

1/8" str. Lincoln fitting, no. 5000

1шт.

4752AA

ARM - steering drop, with ball (10-1/8" from center of hole to center of ball) Use with 4748AA drag link

1шт.

4772AA

LINK - power steering drag, front

1шт.

1/8" str. Lincoln fitting, no. 5000

1шт.

4792AA

PLUG - ball check, power steering manifold

1шт.
