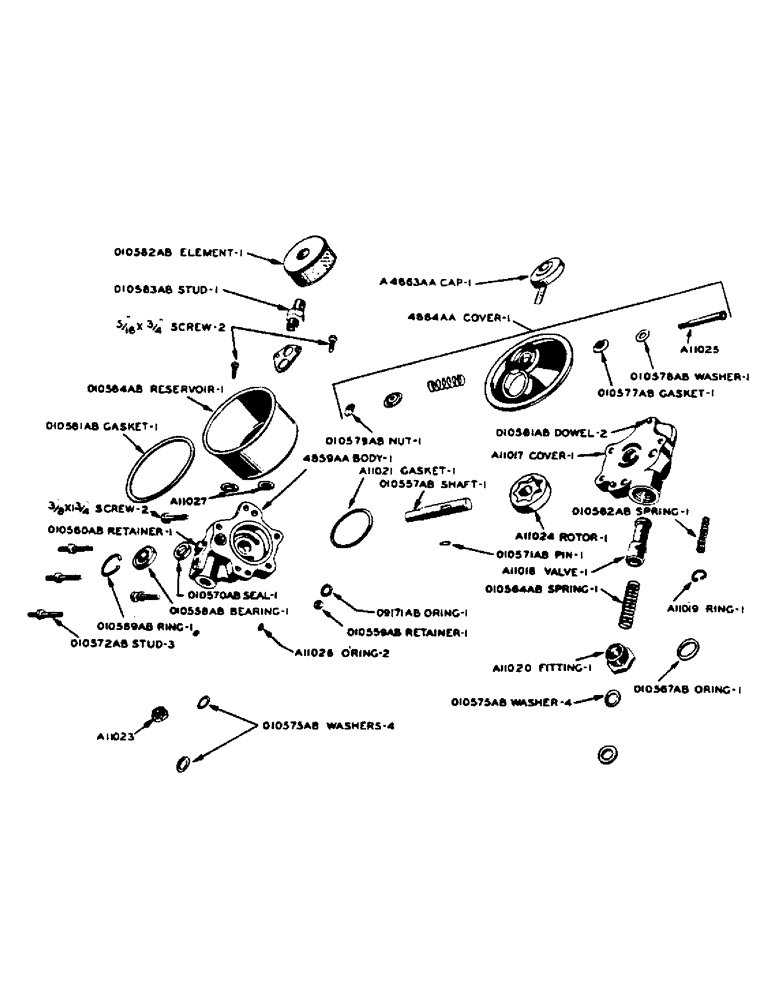

Запчасти Case IH 500-SERIES (088) - PARTS FOR A10057 HYDRAULIC, POWER STEERING PUMP (05) - STEERING

A11017

COVER - pump, with bushing and O10561AB dowels

1шт.

A11018

HOSE

VALVE - pump, assembly

1шт.

A11019

SNAP RING - pump relief valve

1шт.

A11020

FITTING - bolt, pump valve cap

1шт.

A11021

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

"O" RING - pump body to cover

1шт.

A11023

FITTING - return line

1шт.

A11024

ROTOR ASSEMBLY (Inner and outer rotor)

1шт.

A11025

SCREW - cover, pump reservoir

1шт.

A11026

GASKET

"O" RING - mounting screw

2шт.

A11027

GASKET

"O" RING - intake and return fitting

2шт.

4859AA

BODY - pump, with bushings and O10559AB, O10560AB retainers

1шт.

3/8" x 1-3/4" N.C. hex hd. cap screw w/lockwasher

2шт.

A4863AA

X

CAP - filler, assembly, pump reservoir cover

1шт.

4864AA

COVER ASSEMBLY - pump reservoir

1шт.

O9171AB

X

"O" RING - pump flow director

1шт.

O10557AB

SHAFT - pump

1шт.

O10558AB

X

BEARING - pump shaft

1шт.

O10559AB

RETAINER - pump body gasket (9/16" dia. x 1/4" long)

1шт.

O10560AB

RETAINER - pump body gasket (3/4" x 5/8" long)

1шт.

O10561AB

DOWEL - pump body

2шт.

O10562AB

SPRING - pump relief valve

1шт.

O10564AB

X

SPRING - pump flow control valve

1шт.

O10567AB

X

"O" RING - valve cap bolt fitting

1шт.

O10569AB

RETAINER RING - for O10558AB bearing

1шт.

O10570AB

X

OIL SEAL - pump

1шт.

O10571AB

X

PIN - pump drive

1шт.

O10572AB

STUD - pump, Serial Range: body-cover

3шт.

O10575AB

WASHER - A11023 hose fitting

1шт.

O10577AB

X

GASKET - pump reservoir cover screw

1шт.

O10578AB

X

WASHER - pump reservoir cover screw

1шт.

O10579AB

NUT - speed, pump reservoir screw

1шт.

O10581AB

X

GASKET - pump reservoir cover

1шт.

O10582AB

X

FILTER ELEMENT - pump reservoir

1шт.

O10583AB

STUD - pump reservoir return

1шт.

O10584AB

BODY - pump reservoir

1шт.

5/16" x 3/4" N.C. hex hd. cap screw w/lockwasher

2шт.
