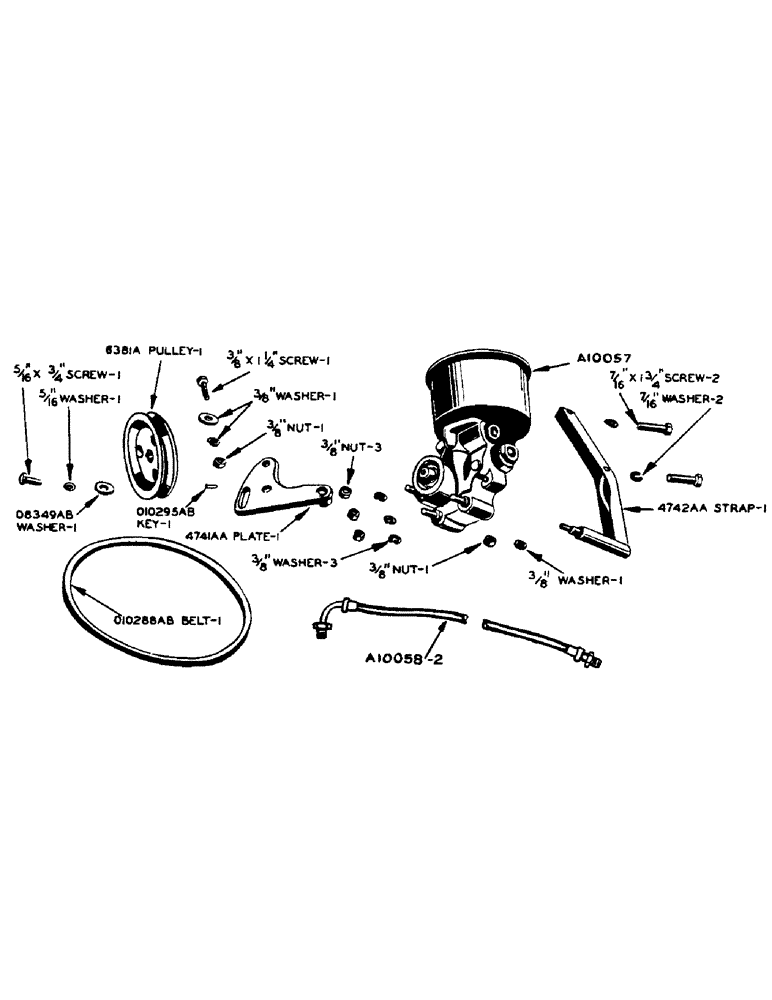

Запчасти Case IH 500-SERIES (086) - HYDRAULIC POWER STEERING PUMP, TRACTOR NUMBER 808719 AND AFTER (05) - STEERING

A10057

PUMP - power steering

1шт.

A10058

HOSE - power steering pump to valve (3/8" inside dia. x 30-1/4" long)

2шт.

6381A

PULLEY - power steering pump

1шт.

5/16" x 3/4" N.C. hex hd. cap screw w/lockwasher

1шт.

O8349AB

X

WASHER - holds 6381A pulley to A10057 pump

1шт.

O10288AB

X

"V" BELT - power steering pump drive

1шт.

O10295AB

X

KEY - power steering pump pulley

1шт.

4741AA

PLATE - power steering pump mounting

1шт.

3/8" N.F. hex nut w/lockwasher

1шт.

3/8" x 1-1/4" N.F. hex hd. cap screw w/nut, lockwasher and plain washer

1шт.

4742AA

STRAP - with pivot pin, power steering pump mounting

1шт.

3/8" N.F. hex nut w/lockwasher

1шт.

7/16" x 1-3/4" hex hd. bolt w/lockwasher

2шт.
