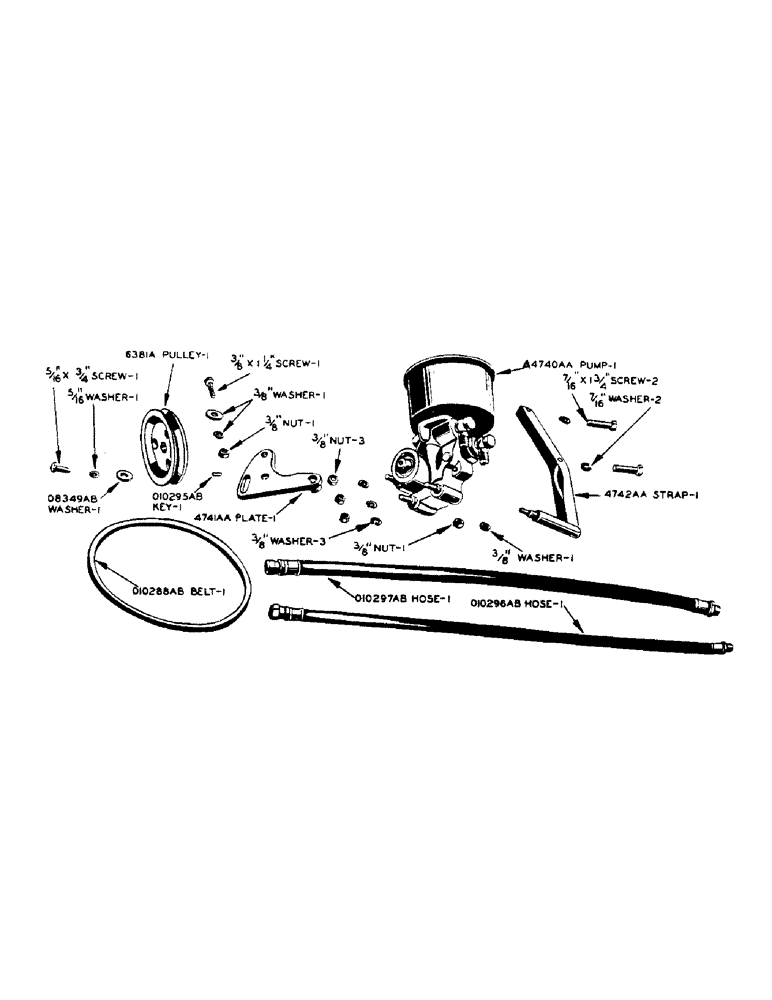

Запчасти Case IH 500-SERIES (085) - HYDRAULIC POWER STEERING PUMP, PRIOR TO TRACTOR NUMBER 8080719 (05) - STEERING

6381A

PULLEY - power steering pump

1шт.

5/16" x 3/4" hex hd. cap screw, N.C. thrd., with lockwasher

1шт.

O8349AB

X

WASHER - holds 6381A pulley to A4740AA pump

1шт.

O10288AB

X

"V" BELT - power steering pump drive

1шт.

O10295AB

X

KEY - power steering pump pulley

1шт.

O10296AB

HOSE - power steering pump to valve (1/4" inside dia. x 28-1/2" long)

1шт.

O10297AB

HOSE - power steering valve to reservoir (3/8" inside dia. x 28-1/2" long)

1шт.

A4740AA

PUMP - power steering, with reservoir. Use A10057 pump

1шт.

4741AA

PLATE - power steering pump mounting

1шт.

3/8" hex nut, N.F., with lockwasher

3шт.

3/8" x 1-1/4" hex hd. cap screw, N.F. thrd., with nut, lockwasher and plain washer

1шт.

4742AA

STRAP - with pivot pin, power steering pump mounting

1шт.

3/8" hex nut, N.F. thrd., with lockwasher

1шт.

7/16" x 1-3/4" hex hd. cap screw, N.C. thrd., with lockwasher

2шт.
