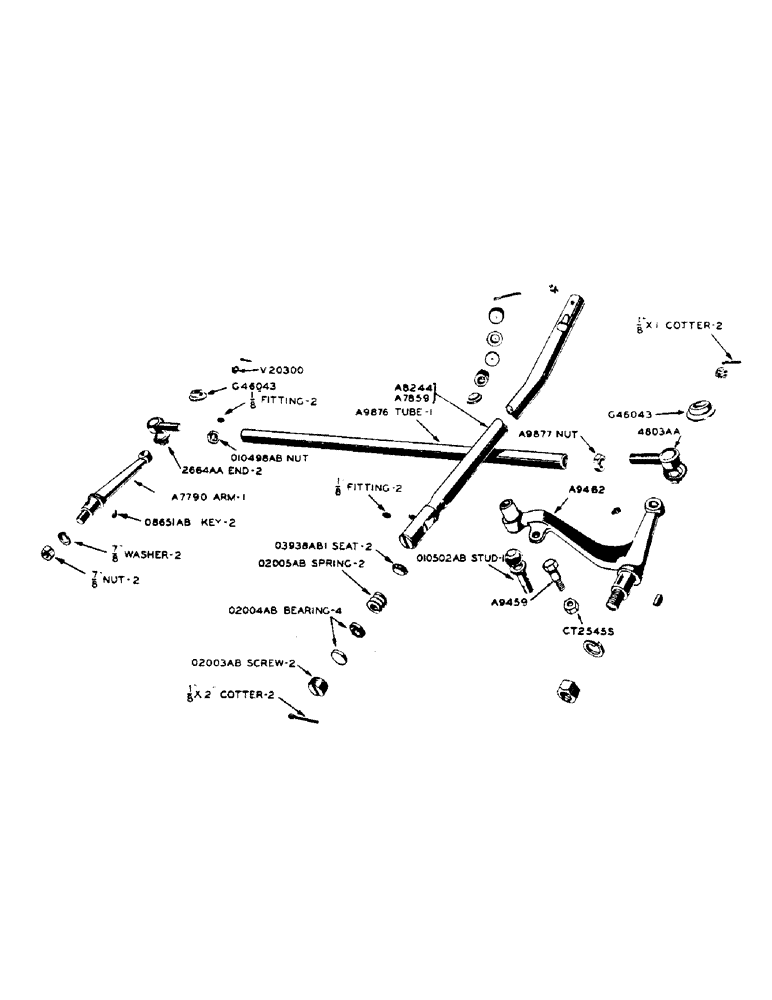

Запчасти Case IH 500-SERIES (084) - STEERING ARMS AND TIE ROD, TRACTOR NUMBER 8080719 AND AFTER (05) - STEERING

A7790

ARM

- steering spindle, R.H.

1шт.

3/4" N.F. hex nut

1шт.

A9459

BOLT - cylinder end yoke to A9462 arm

1шт.

A9462

ARM - steering spindle, L.H.

1шт.

A9876

TUBE - tie rod

1шт.

A9877

NUT

- jam, for 4803AA front axle tie rod end L.H. thrd.

1шт.

G46043

COVER

- dust, (Mfg. #14DC54) tie rod end

2шт.

O8651AB

X

KEY - Woodruff, steering, spindle arms

2шт.

O10498AB

NUT - jam, for 2664AA front axle tie rod end, R.H. thrd.

1шт.

O10502AB

BALL STUD - for L.H. steering spindle arm

1шт.

CT2545S

X

NUT - Marsden lock, for O10502AB ball stud and A9459 bolt

1шт.

V20300

OPERATOR MANUAL

NUT - slotted hex for tie rod ends

2шт.

1/8" x 1" cotter pin

1шт.

2664AA

X

END - tie rod, R.H. thrd

1шт.

1/8" str. Lincoln fitting no. 5000

1шт.

4803AA

X

END - tie rod, L.H. thrd.

1шт.

1/8" str. Lincoln fitting no. 5000

1шт.

A7859

LINK - steering drag (Curved type) use A8244 drag link and A8242 drop arm

1шт.

A8244

LINK - steering drag (Straight type) use with A8242 drop arm

1шт.

O2003AB

X

SCREW - adjusting, for drag link, steering

2шт.

1/8" x 2" cotter pin

2шт.

O2004AB

BEARING - for drag link, steering

4шт.

O2005AB

X

SPRING - drag link, steering

2шт.

O3938AB1

X

SEAT AND SPACER - for drag link, steering

2шт.
