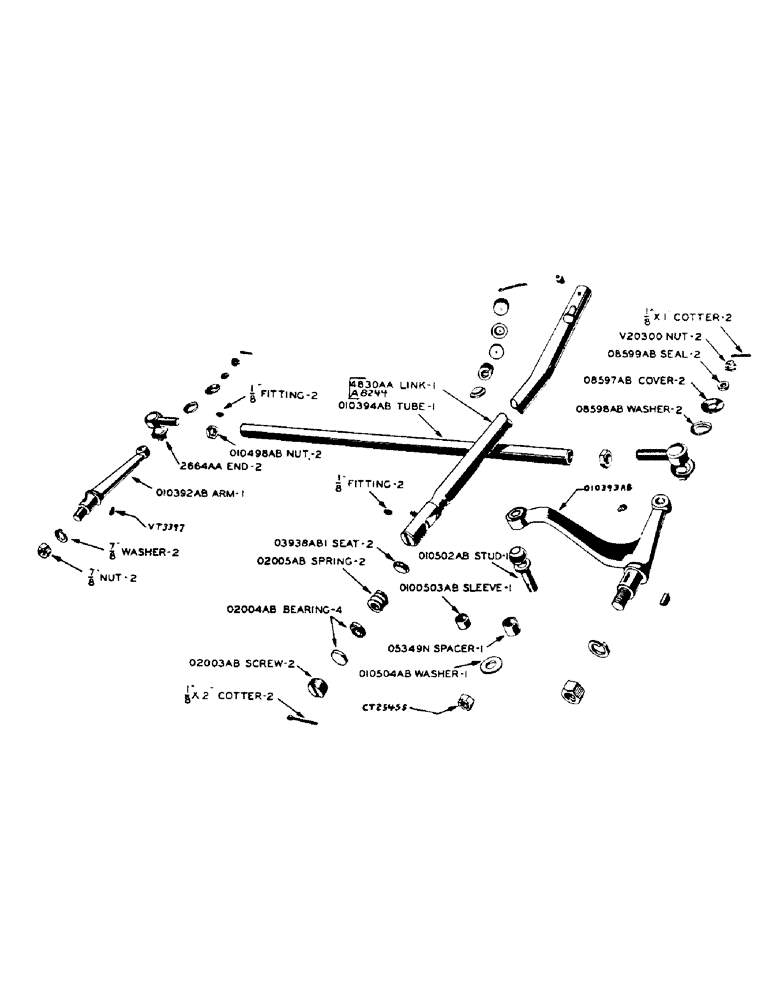

Запчасти Case IH 500-SERIES (083) - STEERING ARMS AND TIE ROD, TRACTOR NUMBER 8039585 TO NUMBER 8080719 (05) - STEERING

O8597AB

X

COVER - dust, lower (Mfgs. no. 16DM94)

2шт.

O8598AB

X

WASHER - dust cover, upper (Mfgs. no. 16DM95)

2шт.

O8599AB

X

SEAL - dust cover, rubber (Mfgs. no. 16DM166)

2шт.

O10392AB

ARM - steering spindle, R.H.

1шт.

7/8" hex nut, N.F. thrd., with lockwasher

1шт.

O10393AB

ARM - steering spindle, L.H.

1шт.

7/8" hex nut, N.F., w/lockwasher

1шт.

O10394AB

TUBE - tie rod

1шт.

O10498AB

NUT - tie rod

2шт.

O10502AB

BALL STUD - for steering spindle arm

1шт.

O10503AB

X

SLEEVE - for O10502AB ball stud, when using power steering

1шт.

O10504AB

X

WASHER - for O10502AB ball stud, when using power steering

1шт.

O5349N

SPACER - for O10502AB ball stud (Not used with power steering)

1шт.

CT2545S

X

NUT - Marsden lock, for O10502AB ball stud

1шт.

V20300

OPERATOR MANUAL

NUT - for 2664AA tie rod end

2шт.

1/8" x 1" cotter pin

2шт.

2664AA

X

END - tie rod

2шт.

1/8" str. Lincoln fitting no. 5000

2шт.

VT3397

KEY - No. 15 Woodruff for O10393AB and O10392AB arms

2шт.

A8244

LINK - steering drag (Straight type) not used with power steering

1шт.

O2003AB

X

SCREW - adjusting, for drag link, steering

2шт.

1/8" x 2" cotter pin

2шт.

O2004AB

BEARING - for drag link, steering

4шт.

O2005AB

X

SPRING - for drag link, steering

2шт.

O3938AB1

X

SEAT AND SPACER - for drag link, steering

2шт.

4830AA

LINK - steering drag (For power steering, see drag link under hydraulic power steering) (Curved type) use A8244 drag link and A8242 drop arm

1шт.

1/8" str. Lincoln fitting no. 5000

2шт.
