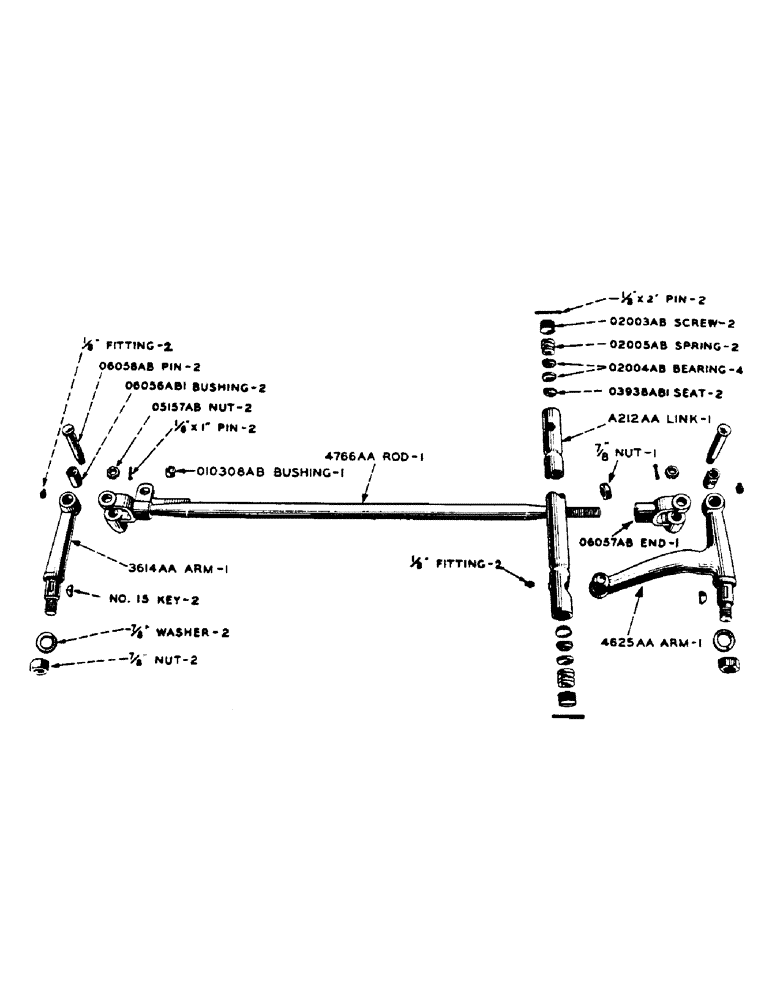

Запчасти Case IH 500-SERIES (082) - STEERING ARMS AND TIE ROD, PRIOR TO TRACTOR NUMBER 8039585 (05) - STEERING

O1241AB

BALL - steering spindle arm, L.H.

1шт.

O5157AB

NUT - tie rod yoke end pin

2шт.

1/8" x 1" cotter pin

2шт.

O6056AB1

BUSHING - steering spindle arm, R.H. or L.H.

2шт.

O6057AB

END - tie rod yoke, L.H.

1шт.

O6058AB

PIN - tie rod yoke end

2шт.

1/8" x 1" cotter pin

2шт.

3614AA

ARM - steering spindle, R.H. with bushing

1шт.

7/8" hex nut, light, N.F. thrd., and lockwasher

1шт.

No. 15 Woodruff key

1шт.

1/8" str. Lincoln fitting no. 5000

1шт.

4625AA

ARM - steering spindle, L.H. with ball and bushing

1шт.

7/8" hex nut, light, N.F. thrd., and lockwasher

1шт.

No. 15 Woodruff key

1шт.

1/8" str. Lincoln fitting no. 5000

1шт.

4766AA

ROD - front axle tie

1шт.

7/8" hex jam nut, light, N.F. thrd.

1шт.

O2003AB

X

SCREW - adjusting, for drag link, A212AA steering

2шт.

1/8" x 2" cotter pin

2шт.

O2004AB

BEARING - for drag link, A212AA steering

4шт.

O2005AB

X

SPRING - for drag link, A212AA steering

2шт.

O3938AB1

X

SEAT AND SPACER - for drag link, A212AA steering

2шт.

A212AA

LINK - steering drag (For power steering, see drag link under hydraulic power steering)

1шт.

1/8" str. Lincoln fitting, no. 5000

2шт.
