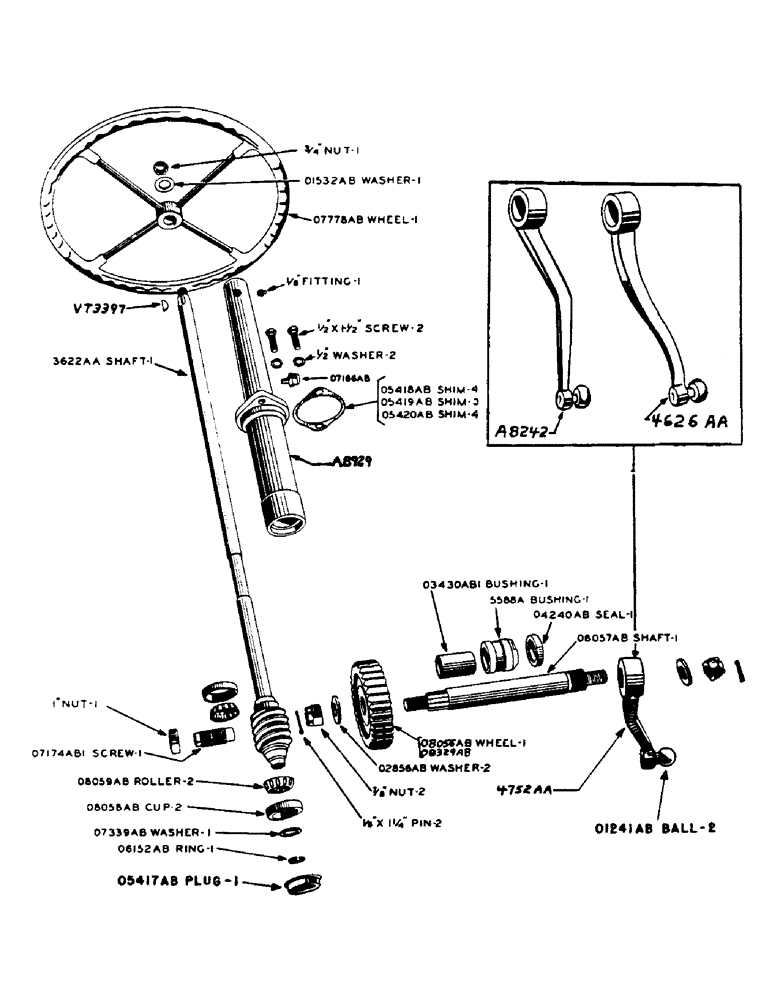

Запчасти Case IH 500-SERIES (080) - STEERING GEAR (05) - STEERING

A8240

SHAFT - steering wheel, with worm. Use with O8329AB wheel (See 3622AA)

1шт.

3/4" hex jam nut, light, N.F.

1шт.

A8242

ARM - steering drop, with ball, 12-5/8" from center of hole to center of ball. Use with A8244 straight type drag link without power steering; also used with A8234 straight type drag link with power steering (See 4626Aa and 4752AA)

1шт.

A8929

COLUMN - steering shaft

1шт.

1/2" x 1-1/2" hex hd. bolt, N.C., w/lockwasher

2шт.

1/8" str. Lincoln fitting no. 5000

1шт.

5588A

BUSHING - steering worm shaft, outer

1шт.

5990A

X

COLUMN - steering shaft (Use A8929 column and O7166AB breather)

1шт.

3622AA

SHAFT - steering wheel, with worm, use with O8056AB wheel (See A8240)

1шт.

3/4" hex jam nut, light, N.F.

1шт.

4626AA

ARM - steering drop, with ball, 13" from center of hole to center of ball. Prior to tractor no. 8039585, for use with A212AA straight type drag link (See 4752AA and A8242)

1шт.

4752AA

1шт.

ARM - steering drop, with ball, 10-1/8" from center of hole to center of ball. (Tractor no. 8039585 and after). Also used prior to 8039585 for power steering with 4748AA curved type drag link. (See 4626AA and A8242). For tractor without power steering use with 4830AA and A7859 curved type drag links

1шт.

O1241AB

BALL - steering drop arm

1шт.

O1532AB

WASHER - steering shaft upper end

2шт.

O2856AB

WASHER - steering drop arm shaft

1шт.

O3430AB1

BUSHING - steering worm shaft inner

1шт.

O4240AB

X

OIL SEAL - steering drop arm shaft

1шт.

O5417AB

PLUG - end, steering column

1шт.

O5418AB

SHIM - steering column, .003" thick

1шт.

O5419AB

SHIM - steering column, .005" thick

1шт.

O5420AB

SHIM - steering column, 28 gauge

1шт.

O6152AB

SNAP RING - steering worm

1шт.

O7166AB

X

BREATHER - for A8929 steering column

1шт.

O7174AB1

SCREW - adjusting, drop arm shaft

1шт.

1" light hex jam nut, N.F.

1шт.

O7339AB

WASHER - steering worm bearing retainer

1шт.

O7778AB

WHEEL - steering (20")

1шт.

O8056AB

WHEEL - steering worm, 33 teeth. Use with 3622AA shaft (See O8392AB)

1шт.

O8057AB

SHAFT - steering arm

1шт.

7/8" castle nut, light, N.F.

2шт.

1/8" x 1-1/4" cotter pin

2шт.

O8058AB

X

CUP - steering worm bearing (Timken no. 24)

2шт.

O8059AB

X

CONE - steering worm bearing (Timken no. 21BC)

2шт.

O8329AB

WHEEL - steering worm (33 teeth) Teeth are grooved in center for identification. Use with A8240 shaft (See O8056AB)

1шт.

VT3397

KEY - no. 15 Woodruff, for 3622AA and A8240 shafts

1шт.
