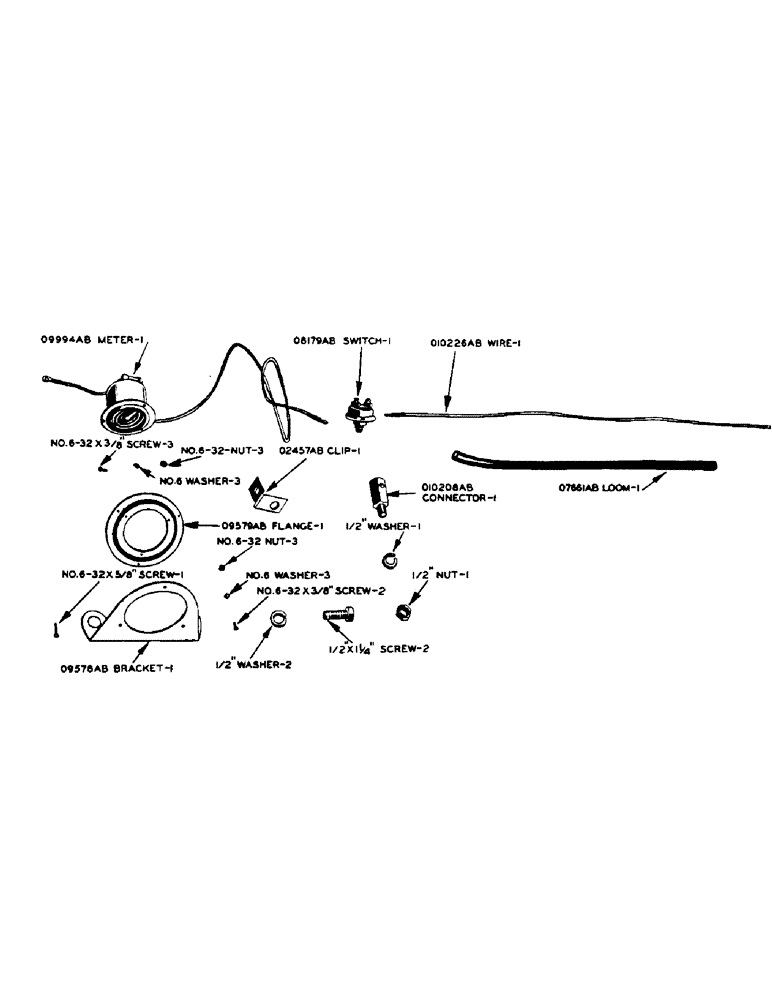

Запчасти Case IH 500-SERIES (121) - ENGINE HOUR METER (04) - ELECTRICAL SYSTEMS

O2457AB

CLIP - hour meter wire, on transmission case

1шт.

O7661AB

LOOM - hour meter switch wire

1шт.

O8179AB

X

SWITCH - hour meter pressure

1шт.

O9578AB

BRACKET - engine hour meter mounting

1шт.

1/2" x 1-1/4" hex hd. cap screw, N.C. thrd., with lockwasher

2шт.

O9579AB

X

FLANGE - engine hour meter resilient mounting rubber

1шт.

No. 6 - 32 x 3/8" rd. hd. mach. screw, with nut and lockwasher

2шт.

No. 6 - 32 x 5/8" rd. hd. mach. screw, with nut and lockwasher

1шт.

O9994AB

X

METER - engine hour, 12 volts. Purchased from John W. Hobbs Corp., Springfield, Ill.

1шт.

No. 6 - 32 x 3/8" rd. hd. mach. screw, with lockwasher

3шт.

O10208AB

CONNECTOR - hour meter pressure switch

1шт.

1/2" hex jam nut, light, N.F. thrd., with lockwasher

1шт.

O10226AB

WIRE - starter switch to hour meter switch

1шт.
