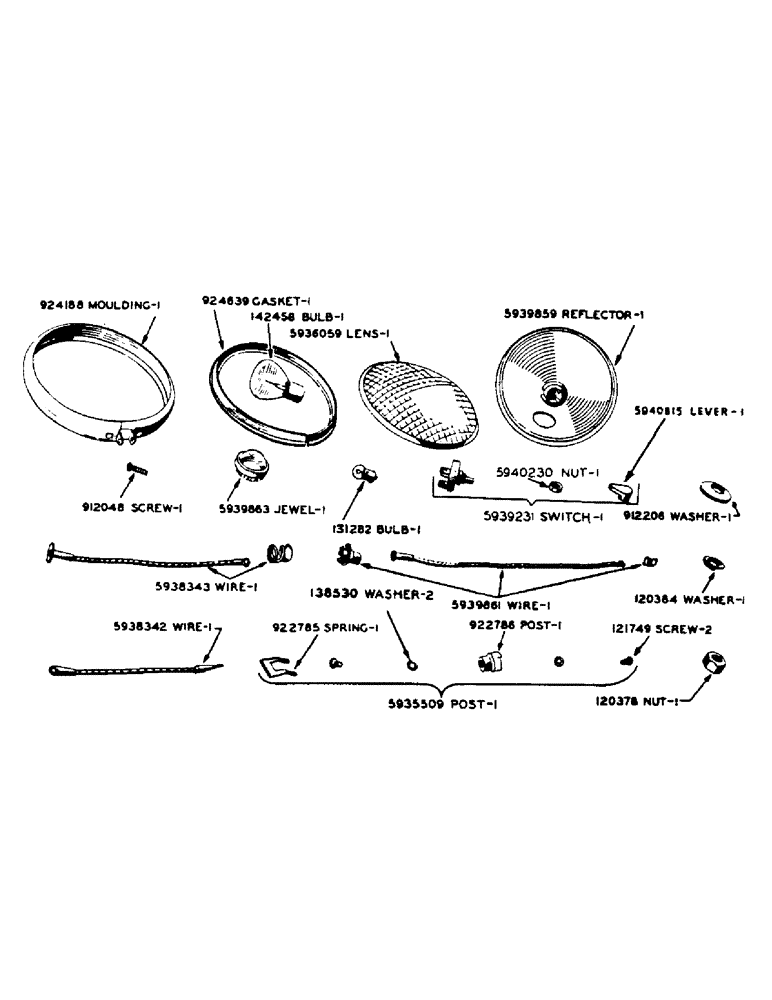

Запчасти Case IH 500-SERIES (037) - PARTS FOR O9897AB COMBINATION FLOOD AND TAIL LAMP (04) - ELECTRICAL SYSTEMS

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , Mounting bolt 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, , Mounting bolt 1/2"

1шт.

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

- terminal (No. 8-32 x 5/16" rd. hd. mach. screw)

2шт.

131282

BULB,C2V, #53, 14.4V

- 1 C.P., single contact, 12-16 volt (Mfg. no. 53)

1шт.

138530

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, , Shakeproof for terminal screw Int Tooth, #8

2шт.

NLS

NO LONGER SERVICED

BULB - 32 C.P., single contact, 12-16 volt (Mfg. no. 1143)

1шт.

912048

SCREW - moulding

1шт.

912206

WASHER - mounting plate bearing

1шт.

922785

SUPPORT

SPRING - terminal post

1шт.

922786

POST - terminal, use 5935509

1шт.

924188

MOULDING ASSEMBLY

1шт.

924639

GASKET - reflector seal

1шт.

5935509

TERMINAL PACKAGE (Consists of 1 - 922785, 1 - 922786, 2 - 121749 and 2 - 138530)

1шт.

5936059

LENS

1шт.

5938342

WIRE ASSEMBLY - switch to terminal post

1шт.

5938343

WIRE ASSEMBLY - from 32 C.P., Serial Range: bulb-switch

1шт.

5939231

SWITCH WITH LEVER

1шт.

5939859

REFLECTOR

1шт.

5939861

SOCKET AND WIRING ASSEMBLY - from switch to red light

1шт.

5939863

JEWEL ASSEMBLY

1шт.

5940230

NUT - retaining, for switch

1шт.

5940815

LEVER - with screw

1шт.

142450

BULB,C2R, #67, 13.5V

- 3 C.P., 12 volt (Mfg. no. 67), parts for O9992AB dash lamp

1шт.

920759

SPRING - dash lamp, parts for O9992AB

1шт.

5942175

WIRE ASSEMBLY - dash lamp, parts for O9992AB

1шт.

5944443

COVER - dash lamp, parts for O9992AB

1шт.

5944445

SOCKET - dash lamp, parts for O9992AB

1шт.
