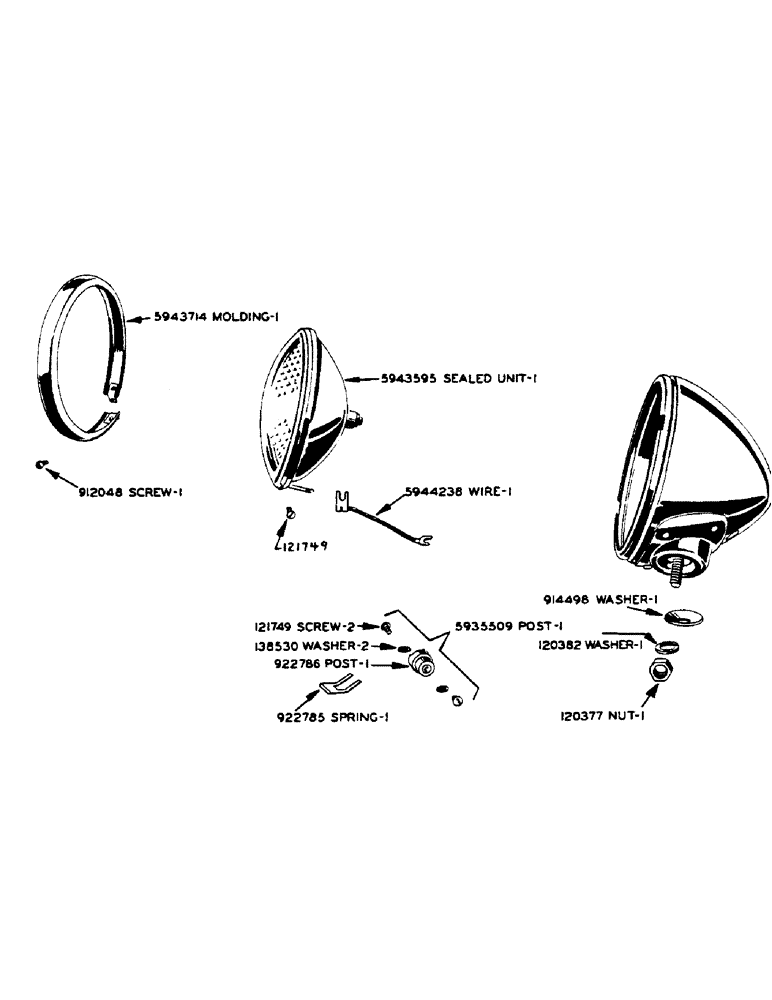

Запчасти Case IH 500-SERIES (036) - PARTS FOR 09898AB FRONT TRACTOR LAMP (04) - ELECTRICAL SYSTEMS

120377

NUT,3/8" - 16, Gr 5

Mounting bolt 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , Mounting bolt 3/8"

1шт.

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

- terminal (No. 8-32 x 5/16" rd. hd. mach. screw)

3шт.

138530

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, , Shakeproof for terminal screw Int Tooth, #8

2шт.

912048

SCREW - molding

1шт.

914498

WASHER - bearing, mounting plate

1шт.

922785

SUPPORT

SPRING - terminal post

1шт.

922786

POST - terminal (Use 5935509)

1шт.

5935509

TERMINAL PACKAGE (Consists of 1 - 922785, 1 - 922786, 2 - 121749 and 2 - 138530)

1шт.

5943595

SEAL UNIT ASSEMBLY (12 volt)

1шт.

5943714

MOLDING

1шт.

5944238

WIRING ASSEMBLY

1шт.
