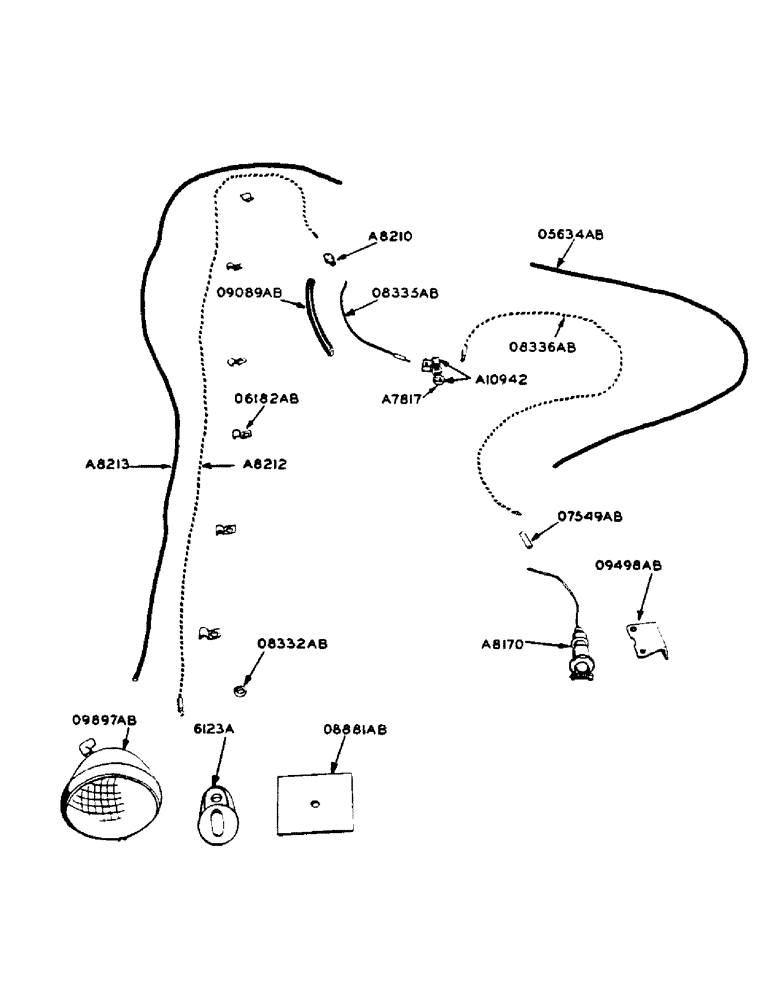

Запчасти Case IH 500-SERIES (035) - REAR TRACTOR LAMP AND OUTLET SOCKET, SERIAL NUMBER 8080912 AND AFTER (04) - ELECTRICAL SYSTEMS

A7817

KNOB

- light switch

1шт.

A8170

SOCKET

- electrical outlet

1шт.

#10 x 5/8" N.C. rd. hd. mach. screw w/hex nut and lockwasher

2шт.

A8210

CONNECTOR, ELEC

CONNECTOR - three wire line

1шт.

A8212

WIRE - rear lamp to three wire line connector

1шт.

A8213

LOOM - rear lamp to three wire line connector

1шт.

A10942

KIT

SWITCH - light w/A7817 knob

1шт.

6123A

X

BRACKET - combination flood and tail lamp

1шт.

3/8" x 1-1/2" N.F. hex hd. cap screw w/hex nut and lockwasher

1шт.

O5634AB

LOOM - light switch to outlet socket

1шт.

O6182AB

CLIP - rear lamp wire

6шт.

1/4" x 1/2" N.C. rd. hd. mach. screw w/hex nut and lockwasher

5шт.

1/4" x 5/8" N.C. rd. hd. mach. screw w/hex nut and lockwasher

1шт.

O7532AB

CLIP - outlet socket wire, 1 on transmission top cover and 1 on hydraulic flange

2шт.

O7549AB

CONNECTOR - two wire line

1шт.

O8332AB

X

GROMMET - in fender for rear lamp wire (3/8" hole)

1шт.

O8335AB

X

WIRE - light switch to three wire line connector

1шт.

O8336AB

WIRE - light switch to two wire line connector

1шт.

O8881AB

REINFORCEMENT - fender lamp bracket

1шт.

O9089B

LOOM - light switch to three wire line connector wire

1шт.

O9498AB

BRACKET - electrical outlet socket

1шт.

O9897AB

X

LAMP - combination flood and tail, 12 volt

1шт.
