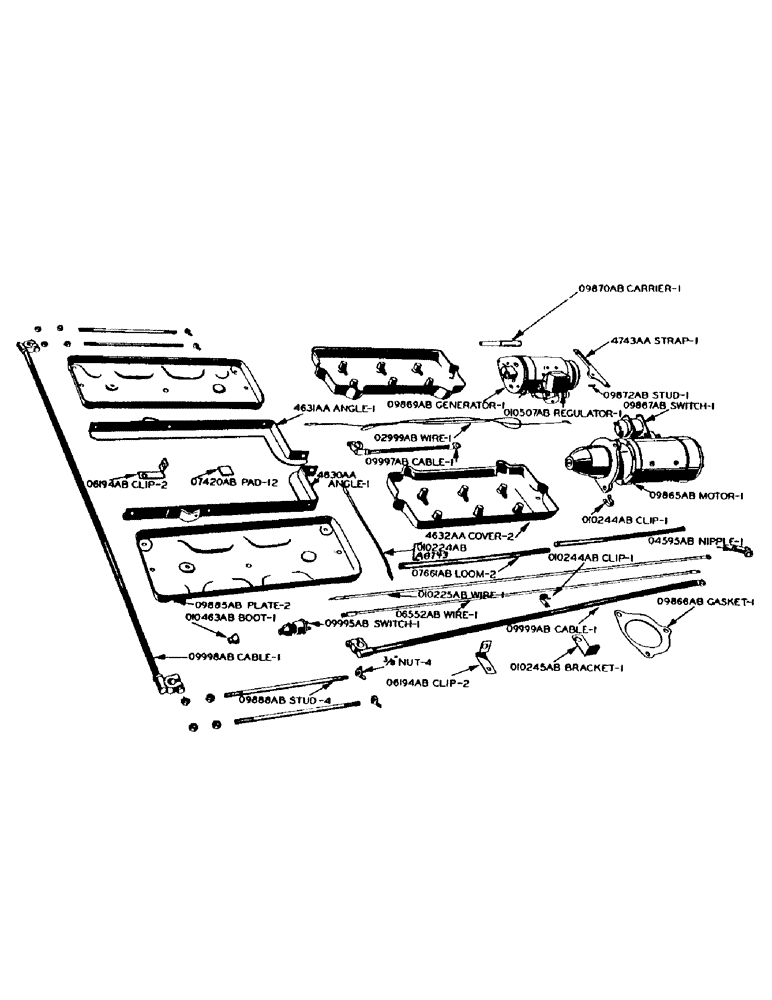

Запчасти Case IH 500-SERIES (030) - GENERATOR, STARTING MOTOR AND BATTERY (04) - ELECTRICAL SYSTEMS

O2999AB

WIRE -, Serial Range: generator-ammeter

1шт.

O9869AB

GENERATOR - 12 volt (Electric Auto-Lite no. GHH6001E1)

1шт.

O9870AB

CARRIER - generator

1шт.

5/8" hex nut, light, N.F. thrd. with lockwasher

1шт.

5/16" x 7/8" hex hd. cap screw, N.C. thrd. with lockwasher

2шт.

O9872AB

STUD - generator belt adjusting strap

1шт.

3/8" hex nut, light, N.F. thrd. with lockwasher

1шт.

O10507AB

X

VOLTAGE REGULATOR - for generator (Electric Auto-Lite no. VRT-4104A)

1шт.

4743AA

STRAP - generator and power steering pump adjusting

1шт.

5/16" x 5/8" hex hd. cap screw, N.c. thrd.

1шт.

5/16" external-internal Shakeproof lockwasher no. 4018-24

1шт.

A8743

WIRE - ammeter to starter switch 8" (See O10224AB), motor

1шт.

A21753

CAP

NIPPLE - starting cable terminal, motor

1шт.

O6552AB

WIRE - starter switch to starting motor, short

1шт.

O7661AB

LOOM - starter switch wire, motor

2шт.

O9865AB

MOTOR - starting, with O9867AB switch (Electric Auto-Lite no. MC0-4004)

1шт.

O9866AB

X

GASKET - starting motor

1шт.

O9867AB

X

SWITCH - starter solenoid (Electric Auto-Lite no. WSM-4101A), motor

1шт.

O9995AB

X

SWITCH - starter motor

1шт.

O10224AB

WIRE - ammeter to starter switch 3" (See A8743), motor

1шт.

O10225AB

WIRE - starter switch to starting motor, long

1шт.

O10244AB

CLIP - for O7661AB loom, on right side of fuel tank front support, starter motor

1шт.

1/4" x 5/8" rd. hd. mach. scrw, N.c. thrd., with hex nut and lockwasher

1шт.

O10463AB

BOOT

- rubber, for O9995AB starter switch, motor

1шт.

BATTERY - storage, 6 volt (Electric Storage Battery Co. no. MA-44041, type XF-25 (Not furnished by J.I. Case Co.)

2шт.

O6194AB

CLIP - starting cable, on steering column for O9998AB cable and one on transmission case top cover for O9999AB cable. See O10244AB, battery

2шт.

O7420AB

X

RUBBER PAD - for battery

12шт.

O9885AB

PLATE - battery support

2шт.

5/16" x 3/4" hex hd. cap screw, N.F. thrd., with nut and lockwasher

4шт.

O9888AB

STUD - battery cover (3/8" x 10-3/4" long)

4шт.

3/8" wing nut, N.C. thrd. (Cadmium plated)

4шт.

3/8" hex nut, N.c. thrd.

8шт.

O9997AB

X

CABLE - battery ground

1шт.

O9998AB

X

CABLE -, Serial Range: battery-battery

1шт.

O9999AB

X

CABLE - battery to starting motor

1шт.

O10244AB

CLIP - starting cable, on transmission case for O9999AB cable, battery

1шт.

1/4" x 5/8" rd. hd. mach. screw, N.C. thrd., with hex nut and lockwasher

1шт.

O10245AB

BRACKET - starting cable clip and oil gauge tube, battery

1шт.

4630AA

ANGLE - battery support, R.H.

1шт.

5/16" x 3/4" hex hd. cap screw, N.F. thrd., with nut and lockwasher

2шт.

4631AA

ANGLE - battery support, L.H.

1шт.

5/16" x 3/4" hex hd. cap screw, N.F. thrd., with nut and lockwasher

2шт.

4632AA

COVER - battery

2шт.
