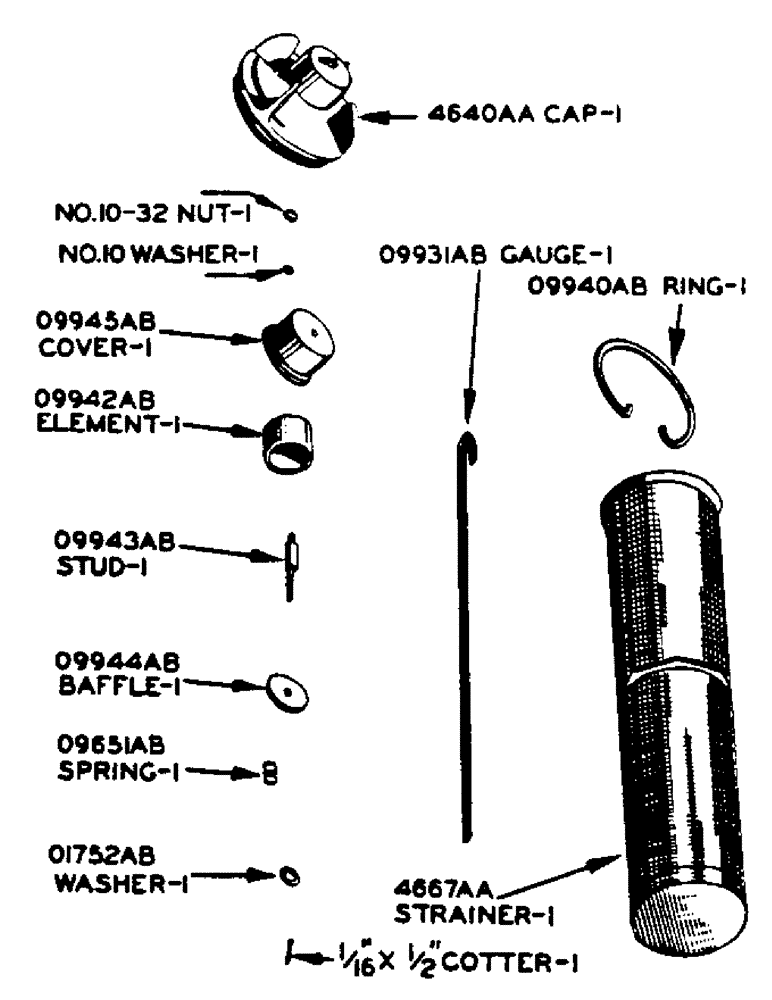

Запчасти Case IH 500-SERIES (027) - FILLER CAP, BREATHER AND FUEL STRAINER FOR FUEL TANK, FILLER CAP AND BREATHER FOR FUEL TANK (03) - FUEL SYSTEM

6342A

X

CAP - fuel tank filler. Use 4640AA, breather

1шт.

O1752AB

X

WASHER - fuel tank breather baffle retaining spring, and filler cap

1шт.

O9651AB

X

SPRING - fuel tank breather baffle retaining, and filler cap

1шт.

O9942AB

X

ELEMENT - fuel tank breather, and filler cap

1шт.

O9943AB

X

STUD - fuel tank breather, and filler cap

1шт.

No. 10 - 32 hex nut, N.F. thrd., with lockwasher

1шт.

1/16" x 1/2" cotter pin

1шт.

O9944AB

X

BAFFLE - fuel tank breather, and filler cap

1шт.

O9945AB

X

COVER - fuel tank breather, and filler cap

1шт.

4640AA

X

CAP - fuel tank filler, with breather

1шт.

6360A

NECK - fuel strainer - use 4667AA

1шт.

O9931AB

GAUGE - fuel oil bayonet, strainer

1шт.

O9940AB

RING - fuel strainer retaining

1шт.

4667AA

STRAINER - fuel

1шт.
