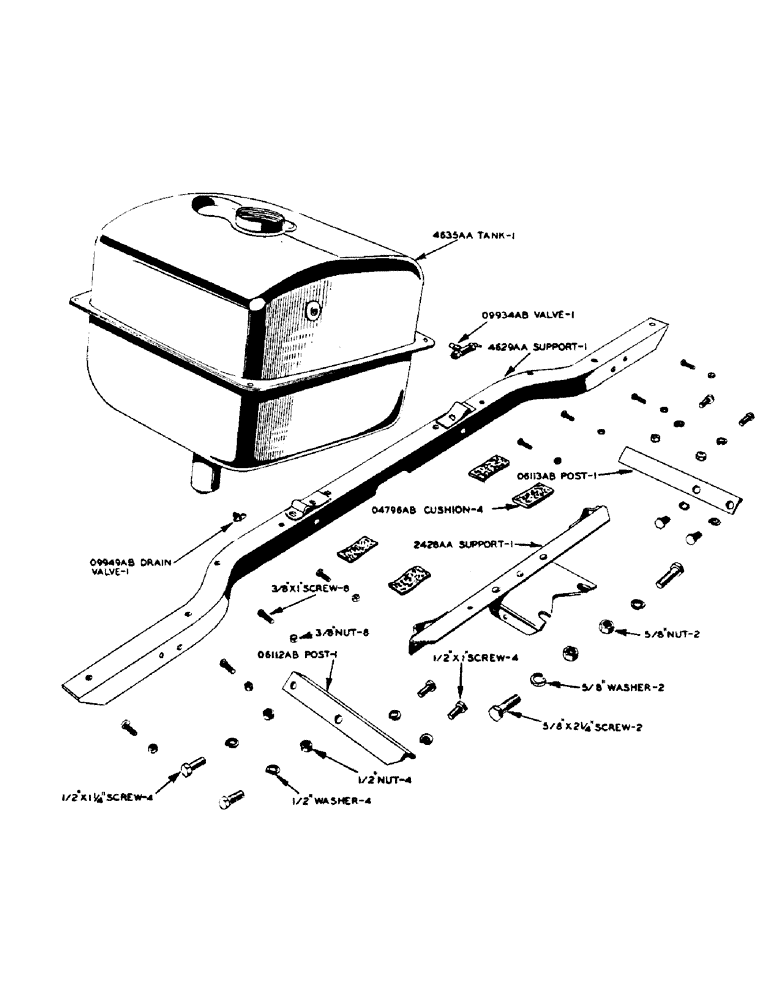

Запчасти Case IH 500-SERIES (026) - FUEL TANK (03) - FUEL SYSTEM

O4796AB

X

CUSHION - fuel tank

4шт.

O6112AB

POST - fuel tank rear support, R.H.

1шт.

1/2" x 1" hex hd. cap screw, N.C. thrd., with lockwasher

2шт.

1/2" x 1-1/4" hex hd. cap screw, N.F. thrd., with nut and lockwasher

1шт.

O6113AB

POST - fuel tank rear support, L.H.

1шт.

1/2" x 1" hex hd. cap screw, N.C. thrd., with lockwasher

2шт.

1/2" x 1-1/4" hex hd. cap screw, N.F. thrd., with nut and lockwasher

1шт.

O9934AB

X

VALVE - needle, for fuel tank (3/8" tube size x 3/8" pipe thrd.) to which O9935AB tube connects

1шт.

O9949AB

X

VALVE - water drain, for fuel tank

1шт.

2428AA

SUPPORT - fuel tank, front

1шт.

5/8" x 2-1/4" hex hd. cap screw, N.F. thrd., with lockwasher

2шт.

4629AA

SUPPORT - fuel tank, rear

1шт.

3/8" x 1" hex hd. cap screw, N.F. thrd., with nut and lockwasher

8шт.

1/2" x 1-1/4" hex hd. cap screw, N.F. thrd. with nut and lockwasher

2шт.

4635AA

TANK - fuel

1шт.
