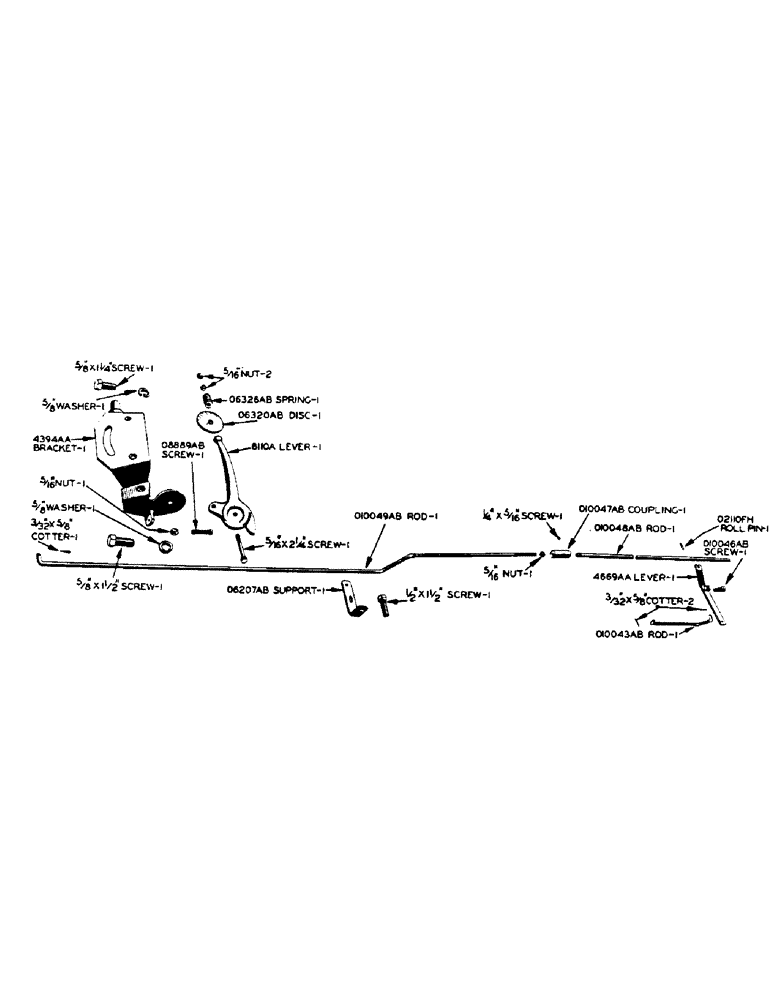

Запчасти Case IH 500-SERIES (025) - THROTTLE CONTROL (03) - FUEL SYSTEM

6110A

LEVER - throttle control hand

1шт.

5/16" x 2-1/4" hex hd. cap screw, N.F. thrd.

1шт.

5/16" hex nut, light, N.F. thrd.

2шт.

06207AB

SUPPORT - throttle rod

1шт.

1/2" x 1-1/2" hex hd. cap screw, N.C. thrd

1шт.

6320AB

DISC - friction, throttle hand lever

1шт.

O6326AB

X

SPRING - throttle hand lever

1шт.

O8889AB

SCREW - in 4394AA bracket to adjust hand throttle lever

1шт.

5/16" hex nut, light, N.F. thrd.

1шт.

O10043AB

ROD - fuel pump throttle

1шт.

3/32" x 5/8" cotter pin

2шт.

O10046AB

SCREW - pivot, throttle control lever

1шт.

O10047AB

COUPLING - throttle rod

1шт.

1/4" - 28 x 5/16" Allen hd. set screw

1шт.

O10048AB

ROD - throttle, front

1шт.

O10049AB

ROD - throttle, rear

1шт.

5/16" hex nut, light, N.F. thrd.

1шт.

3/32" x 5/8" cotter pin

1шт.

O2110FH

X

ROLL PIN - front throttle rod (3/16" x 3/4")

1шт.

4394AA

BRACKET - operators seat mounting, with spark and throttle hand lever support and PTO clutch hand lever mounting pin

1шт.

5/8" x 1-1/4" hex hd. cap screw, N.C. thrd., with lockwasher

1шт.

5/8" x 1-1/2" hex hd. cap screw, N.C. thrd., with lockwasher

1шт.

4669AA

LEVER - throttle control

1шт.
