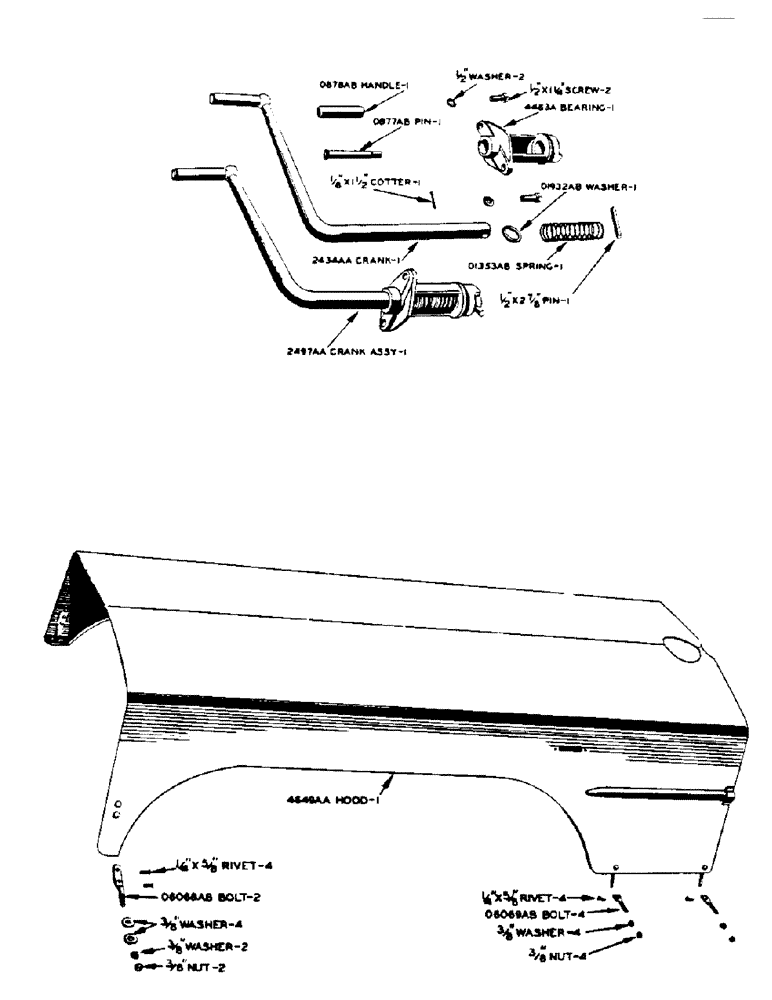

Запчасти Case IH 500-SERIES (045) - STARTING CRANK (02) - ENGINE

4483A

BEARING - starting crank

1шт.

1/2" x 1-1/4" hex hd. cap screw, N.C. thrd., with lockwasher

2шт.

O877AB

PIN - starting crank handle

1шт.

O878AB

HANDLE - starting crank

1шт.

O1353AB

SPRING - starting crank

1шт.

O1932AB

WASHER - starting crank spring

1шт.

2434AA

CRANK - starting, with handle and pin (See 2497AA)

1шт.

1/2" x 2-7/8" type 5, center groove pin

1шт.

1/8" x 1-1/2" cotter pin

1шт.

2497AA

CRANK - starting, with bearing and spring (Consists of 1 - 2434AA, 1 - 4483A, 1 - O1353AB, 1 - O1932AB, 1 - 1/8" x 1-1/2" cotter pin and 1 - 1/2" x 2-7/8" type 5, center groove pin)

1шт.

O6068AB

BOLT - hood tie down, front

2шт.

1/4" x 5/8" W.B. hd. rivet

4шт.

3/8" hex nut, N.C. thrd., with lockwasher and plain washer

2шт.

O6069AB

BOLT - hood tie down, rear, eng

4шт.

1/4" x 5/8" W.B. hd. rivet, engine hood

4шт.

3/8" hex nut, N.C. thrd., with lockwasher and plain washer, engine hood

4шт.

4649AA

HOOD - engine

1шт.
