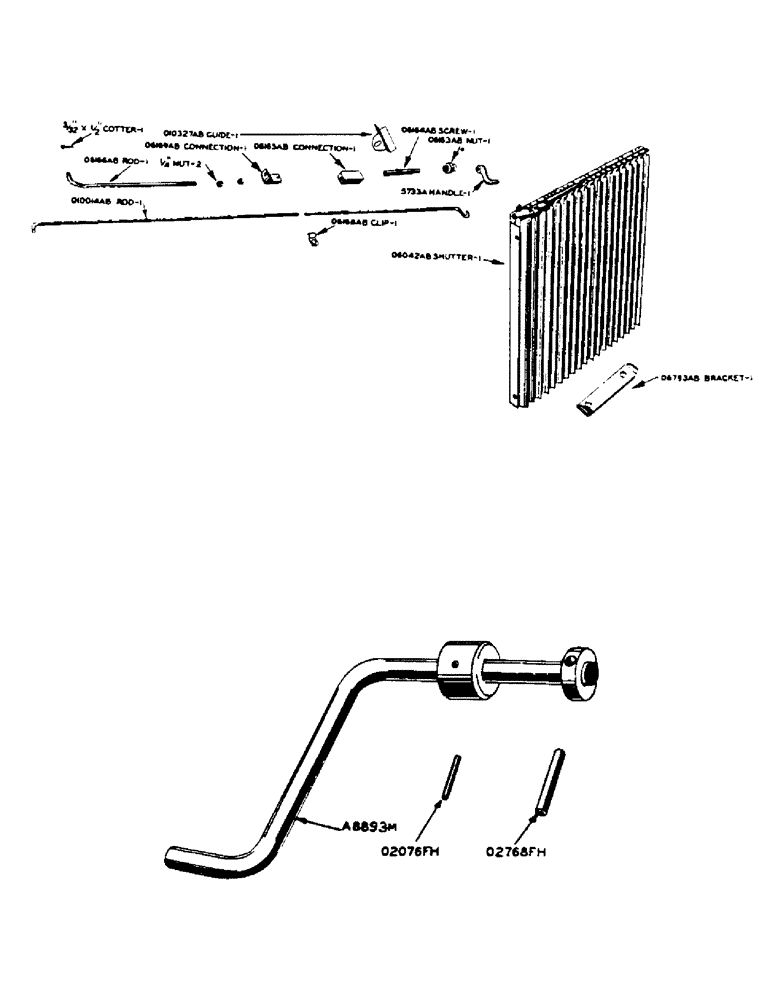

Запчасти Case IH 500-SERIES (044) - RADIATOR SHUTTER (02) - ENGINE

5733A

HANDLE - radiator shutter control

1шт.

3/32" x 5/8" type 1, groove pin

1шт.

O6042AB

SHUTTER - radiator

1шт.

5/16" x 1/2" rd. hd. mach. screw, N.C. thrd., with lockwasher

4шт.

O6163AB

NUT - radiator shutter control (On R.H. side of instrument panel)

1шт.

O6164AB

SCREW - radiator shutter control

1шт.

O6165AB

CONNECTOR - radiator shutter control

1шт.

O6166AB

ROD - front, radiator shutter control

1шт.

1/4" hex nut, N.C. thrd.

1шт.

3/32" x 1/2" cotter pin

1шт.

O6168AB

CLIP - radiator shutter rear control rod

1шт.

5/16" x 3/4" rd. hd. mach. screw, N.C. thrd., with hex nut and lockwasher

1шт.

O6169AB

CONNECTION - radiator shutter control rod

1шт.

O6793AB

BRACKET - radiator shutter support

1шт.

O10014AB

ROD - rear, radiator shutter control

1шт.

O10327AB

GUIDE - radiator shutter control

1шт.

2481AA

SCREEN - radiator

1шт.

1/4" x 1/2" rd. hd. mach. screw, N.C. thrd., with lockwasher

4шт.

A8893M

CRANK - starting (Machy. item)

1шт.

O2076FH

X

ROLL PIN - (5/16" x 2-1/4") starting crank

1шт.

O2768FH

X

ROLL PIN - (1/2" x 2") starting crank collar

1шт.
