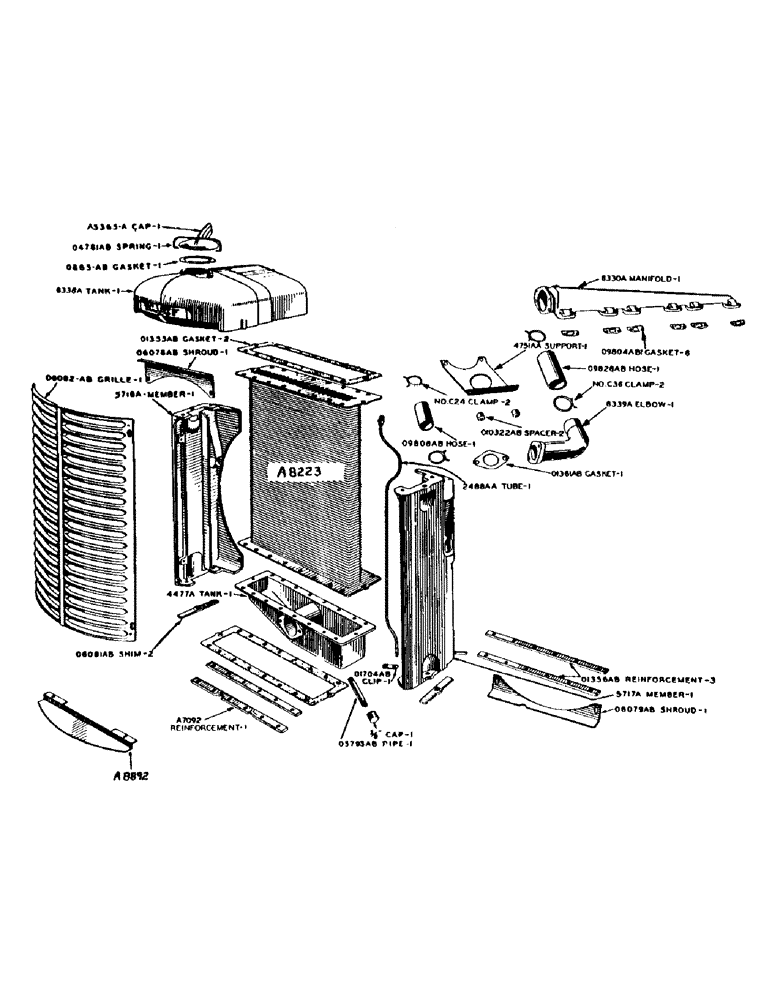

Запчасти Case IH 500-SERIES (042) - RADIATOR (02) - ENGINE
№
Артикул
Название
Примечание
Количество
A7092
SPARE PART
REINFORCEMENT - radiator header, front bottom. See O1356AB
1шт.
A8223
CORE
- radiator
1шт.
A8892
PLATE - radiator baffle
1шт.
4477A
TANK - radiator, lower
1шт.
3/8" x 1-1/8" hex hd. cap screw, N.C. thrd., with nut and lockwasher
9шт.
3/8" x 1-1/4" hex hd. cap screw, N.C. thrd., with nut and lockwasher
5шт.
A5365A
X
CAP - radiator
1шт.
5716A
MEMBER - radiator side, R.H.
1шт.
3/8" x 1" hex hd. cap screw, N.C. thrd., with lockwasher
2шт.
3/8" x 1-1/4" hex hd. cap screw, N.C. thrd., with hex nut and lockwasher
2шт.
1/2" x 1-3/4" hex hd. cap screw, N.C. thrd., with lockwasher
2шт.
5717A
MEMBER - radiator side, L.H.
1шт.
3/8" x 1" hex hd. cap screw, N.C. thrd., with lockwasher
2шт.
3/8" x 1-1/4" hex hd. cap screw, N.C. thrd., with hex nut and lockwasher
2шт.
1/2" x 1-3/4" hex hd. cap screw, N.C. thrd., with lockwasher
2шт.
6330A
MANIFOLD - water
1шт.
5/16" x 1-1/8" hex hd. cap screw, N.C. thrd., with lockwasher
10шт.
5/16" x 1-1/2" hex hd. cap screw, N.C. thrd., with lockwasher
2шт.
1/4" sq. hd. pipe plug
1шт.
6338A
TANK - radiator top
1шт.
3/8" x 1" hex hd. cap screw, N.C. thrd., with lockwasher
16шт.
6339A
ELBOW - radiator to water pump
1шт.
1/2" x 1-1/2" hex hd. cap screw, N.C. thrd., with lockwasher
2шт.
865AB
GASKET - radiator cap
1шт.
1355AB
GASKET - radiator header
2шт.
O1356AB
REINFORCEMENT - radiator header, front and rear top and rear bottom. See A7092
3шт.
O1361AB
GASKET
- radiator outlet elbow
1шт.
O1704AB
CLIP - radiator overflow tube
1шт.
3/8" x 1-1/4" hex hd. cap screw, N.C. thrd., with nut and lockwasher
1шт.
O4781AB
SPRING
- radiator cap
1шт.
O5793AB
PIPE - radiator drain (3/8" x 4")
1шт.
3/8" hex hd. pipe cap
1шт.
O6078AB
SHROUD - radiator, upper
1шт.
1/4" x 5/8" rd. hd. mach. screw, N.C. thrd., with nut and lockwasher
2шт.
O6079AB
SHROUD - radiator, lower
1шт.
1/4" x 5/8" rd. hd. mach. screw, N.C. thrd., with nut and lockwasher
2шт.
O6081AB
SHIM - radiator
2шт.
O6082AB
GRILLE - radiator
1шт.
1/4" x 3/4" rd. hd. mach. screw, N.C. thrd., with lockwasher
4шт.
O9804AB1
X
GASKET - water manifold
6шт.
O9808AB
X
HOSE - water by-pass
1шт.
No. C-24 Corbin hose clamp (For 1-7/8" 0 dia. hose)
2шт.
O9828AB
X
HOSE - radiator to water pump
1шт.
No. C-36 Corbin hose clamp (For 2-5/8" 0 dia. hose)
2шт.
O10322AB
SPACER - water manifold support
2шт.
2488A
TUBE - radiator overflow, with connector
1шт.
4751AA
SUPPORT - water manifold
1шт.
7/16" x 1-3/4" hex hd. cap screw, N.C. thrd., with lockwasher
2шт.
7/16" - 1-3/4" hex hd. cap screw, N.F. thrd., with hex nut and lockwasher
4шт.
Выбрано товаров: 49
