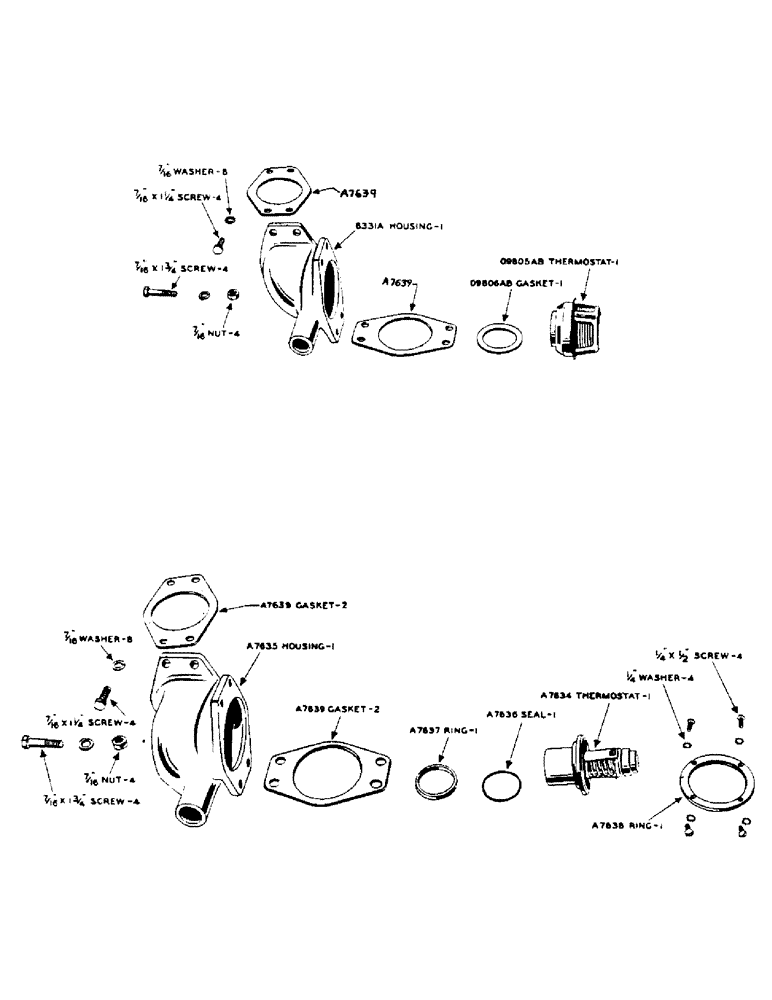

Запчасти Case IH 500-SERIES (041) - THERMOSTAT (02) - ENGINE

A7639

GASKET

- thermostat housing

2шт.

6331A

HOUSING - thermostat (See note)

1шт.

7/16" x 1-1/4" hex hd. cap screw, N.C. thrd., with lockwasher

4шт.

7/16" x 1-3/4" hex hd. cap screw, N.F. thrd., with nut and lockwasher

4шт.

O9805AB

THERMOSTAT - (175 degree opening)

1шт.

O9806AB

GASKET - thermostat

1шт.

A7634

THERMOSTAT

- serial number 8060853 and after

1шт.

A7635

HOUSING - thermostat, serial number 8060853 and after

1шт.

7/16" x 1-1/4" hex hd. cap screw, N.C. thrd. with lockwasher, thermostat s/n 8060853 & aft

4шт.

7/16" - 1-3/4" hex hd. cap screw, N.F. thrd. with nut and lockwasher, thermostat s/n 8060853 & aft

4шт.

A7636

SEAL

-thermostat s/n 8060853 & aft

1шт.

A7637

X

RING - bronze, thermostat seal, s/n 8060853 & aft

1шт.

A7638

RING - retaining, thermostat, s/n 8060853 & aft

1шт.

1/4" x 1/2" rd. hd. mach. screw, N.C. thrd., brass, thermostat s/n 8060853 & aft

4шт.

1/4" no. 1814-00 external tooth Shakeproof lockwasher, phosphor bronze, thermostat s/n 8060853 & aft

4шт.

A7639

GASKET

- thermostat housing, s/n 8060853 & aft

2шт.
