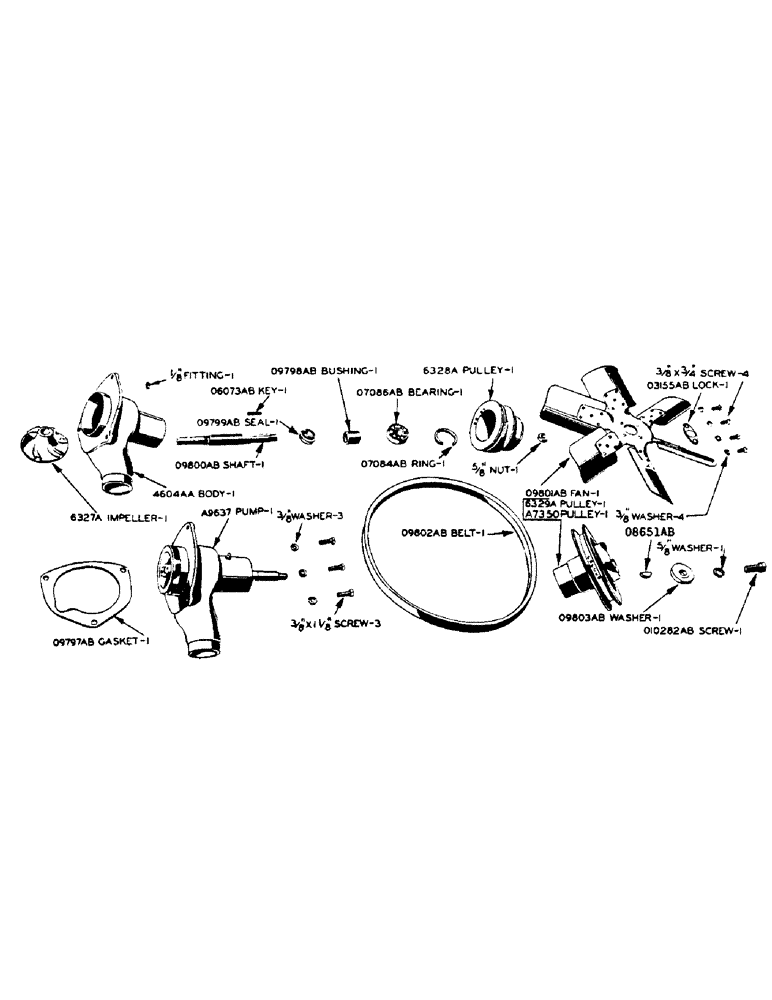

Запчасти Case IH 500-SERIES (040) - FAN AND WATER PUMP (02) - ENGINE

A7350

PULLEY - fan drive, on crankshaft, tractor no. 8042678 and after See 6329A

1шт.

A9637

SPARE PART

PUMP - water, less fan pulley

1шт.

6326A

BODY - water pump, use 4604AA

1шт.

6327A

IMPELLER - water pump

1шт.

6328A

PULLEY - fan driven, upper

1шт.

6329A

PULLEY - fan drive, on crankshaft, prior to tractor no. 8042678 See A7350 (See note)

1шт.

O3155AB

X

LOCK - water pump shaft nut

1шт.

O6073AB

X

KEY - water pump and fan shaft

1шт.

O7084AB

X

SNAP RING - to retain water pump and fan shaft bearing

1шт.

O7086AB

X

BEARING - water pump and fan shaft (New Departure no. 8604)

1шт.

O8651AB

X

KEY - Woodruff, fan drive pulley (See note)

1шт.

O9797AB

GASKET

- water pump body

1шт.

O9798AB

X

BUSHING - water pump body

1шт.

O9799AB

SEAL - water pump

1шт.

O9800AB

X

SHAFT - water pump and fan

1шт.

5/8" hex jam nut, light, N.F. thrd

1шт.

O9801AB

FAN BLADE ASSEMBLY

1шт.

3/8" X 3/4" hex hd. cap screw, N.C. thrd., with lockwasher

4шт.

O9802AB

BELT

- fan and generator

1шт.

O9803AB

X

WASHER - lower fan drive pulley

1шт.

O10282AB

X

CAP SCREW - lower fan drive pulley, Serial Range: washer-crankshaft

1шт.

5/8" std. lockwasher

1шт.

4604AA

BODY - water pump, with bushing

1шт.

1/8" 67-1/2 degree safety vent Lincoln fitting #5399

1шт.

3/8" x 1-1/8" hex hd. cap screw, N.C. thrd., with lockwasher

3шт.
