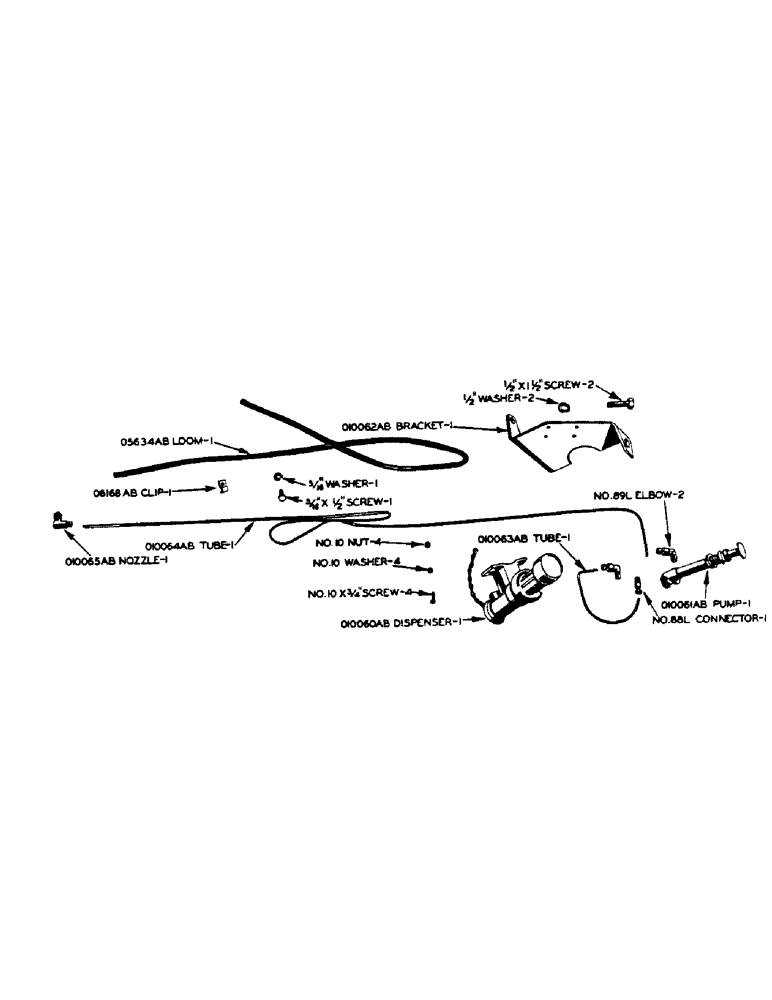

Запчасти Case IH 500-SERIES (028) - STARTING FLUID PRIMER PUMP (02) - ENGINE

O5634AB

LOOM - for O10064AB tube

1шт.

O6168AB

CLIP - for O10064AB tube

1шт.

5/16" x 1/2" hex hd. cap screw, N.C. thrd., with lockwasher

1шт.

O10060AB

DISPENSER - starting fluid

1шт.

No. 10 x 3/4" rd. hd. mach. screw, N.C. thrd., with hex nut and lockwasher

4шт.

O10061AB

PUMP - starting fluid primer

1шт.

O10062AB

BRACKET - starting fluid dispenser and primer pump

1шт.

1/2" x 1-1/2" hex hd. cap screw, N.C. thrd., with lockwasher

2шт.

O10063AB

TUBE - starting fluid dispenser to primer pump

1шт.

REFER TO O10063AB TUBE,FOR CONNECTOR SHOULD USE 222-400 8/26/96

1шт.

IMPERIAL HI-DUTY CONNECTOR, no. 88L (1/8" tube size x 1/8" pipe thrd.) connects tube to primer pump

1шт.

IMPERIAL HI-DUTY ELBOW, no. 89L (1/8" tube size x 1/8" pipe thrd.) connects, Serial Range: tube-dispenser

1шт.

O10064AB

TUBE - starting fluid primer, Serial Range: pump-manifold

1шт.

REFER TO O10063AB & O10064AB,FOR ELBOW SHOULD USE 222-430 8/26/96

1шт.

IMPERIAL HI-DUTY ELBOW, no. 89L (1/8" tube size x 1/8" pipe thrd.) connects tube to primer pump

1шт.

O10065AB

NOZZLE - starting fluid priming elbow (Connects O10064AB, Serial Range: tube-manifold)

1шт.
