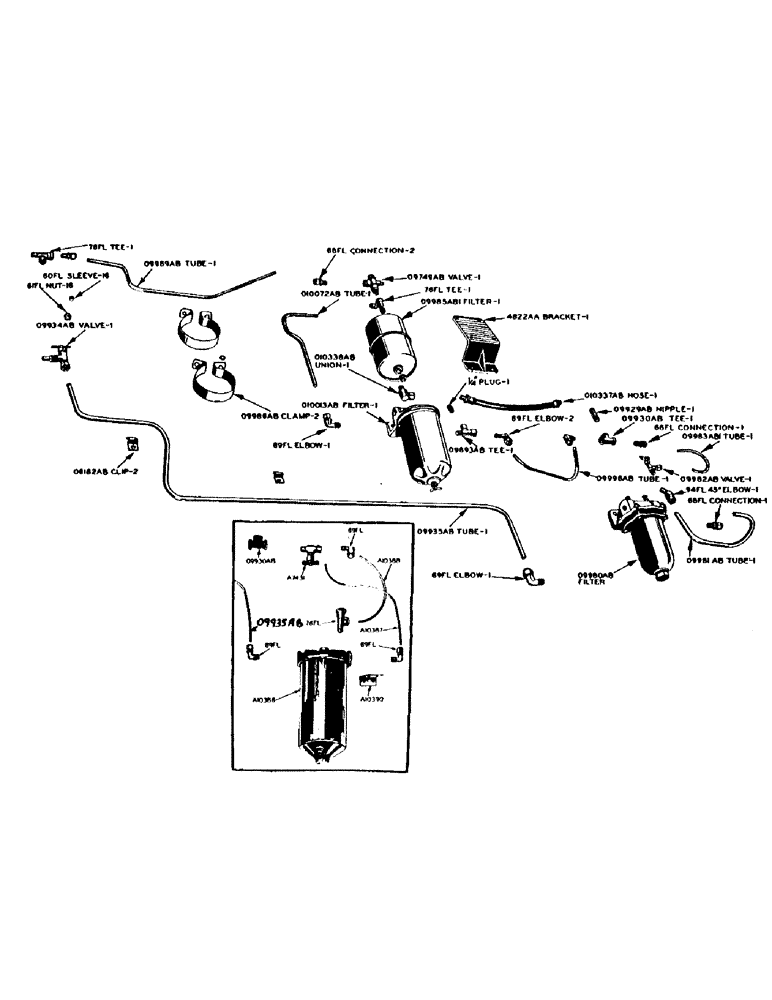

Запчасти Case IH 500-SERIES (022) - FIRST STAGE FUEL FILTER AND TUBES (02) - ENGINE

A9789

TUBE - first stage filter by-pass, prior to serial number 8080912

1шт.

IMPERIAL CONNECTOR #68FL (1/4" tube x 1/4" P.T.) tube to tee, prior to serial number 8080912

1шт.

O6182AB

CLIP - for O9935AB tube, prior to serial number 8080912

2шт.

5/16" x 1/2" hex hd. bolt N.C. w/lockwasher

1шт.

5/16" x 3/4" mach. screw N.C. w/nut and lockwasher

1шт.

O9929AB

X

NIPPLE - 1/4" P.T. x 1-1/2" brass pipe, tee to pump, prior to serial number 8080912

1шт.

O9930AB

X

TEE - 1/4" P.T. brass female, prior to serial number 8080912

1шт.

O9934AB

X

VALVE - fuel tank, (3/8" tube x 3/8" P.T.), prior to serial number 8080912

1шт.

O9935AB

TUBE - fuel tank to O9980AB filter, prior to serial number 8080912

1шт.

IMPERIAL FLEX ELBOW #69FL (3/8" tube x 1/4" P.T.) tube to filter, prior to serial number 8080912

1шт.

O9980AB

FILTER - first stage fuel use A10915 kit (Which includes 1 - A7431, 1 - A10386, 1 - A10387, 1 - A10388, 1 - A10390 and fittings), prior to serial number 8080912

1шт.

O9981AB

TUBE - filter to pump, prior to serial number 8080912

1шт.

REFER TO O9981AB TUBE, FOR 45' ELBOW SHOULD USE 222-95,ALSO FOR CONNECTOR USE 222-27 8/26/96

1шт.

IMPERIAL FLEX 45 DEGREE ELBOW #94FL (3/8" tube x 1/4" P.T.) tube to pump, prior to serial number 8080912

1шт.

IMPERIAL FLEX CONNECTOR #68FL (3/8" tube x 1/4" P.T.) tube to filter, prior to serial number 8080912

1шт.

O9982AB

VALVE - needle, first stage filter (1/4" tube x 1/8" P.T.), prior to serial number 8080912

1шт.

A7431

VALVE

- needle, fuel filter by-pass, serial number 808912 and after

1шт.

A10386

SPARE PART

FILTER - first stage, serial number 808912 and after

1шт.

1/4" x 3/4" hex hd. bolt N.C. w/lockwasher, serial number 808912 and after

2шт.

A10387

TUBE

- filter to fuel pump, serial number 808912 and after

1шт.

REFER TO A10387 TUBE, FOR 45' ELBOW SHOULD USE 222-95,ALSO FOR ELBOW USE 222-47 8/26/96

1шт.

IMPERIAL FLEX 45 DEGREE ELBOW #94FL (3/8" tube x 1/4" P.T.) tube to pump, serial number 808912 and after

1шт.

IMPERIAL FLEX ELBOW #69FL (3/8" tube x 1/4" P.T.) tube to filter, serial number 808912 and after

1шт.

A10388

TUBE

- filter by-pass, serial number 808912 and after

1шт.

REFER TO A10388 TUBE,FOR A TEE SHOULD USE 222-82,ALSO FOR ELBOW USE 222-42 8/26/96

1шт.

IMPERIAL FLEX TEE #76FL (1/4" tube x 1/8" P.T.) tube to filter, serial number 808912 and after

1шт.

IMPERIAL FLEX ELBOW #69FL (1/4" tube x 1/8" P.T.) tube to pump, serial number 808912 and after

1шт.

A10390

BRACKET

- first stage filter mounting, serial number 808912 and after

1шт.

3/8" x 7/8" hex hd. bolt N.C. w/lockwasher, serial number 808912 and after

2шт.

O6182AB

CLIP - for O9935AB tube, serial number 808912 and after

2шт.

5/16" x 1/2" hex hd. bolt N.C. w/lockwasher, serial number 808912 and after

1шт.

5/16" x 3/4" mach. screw w/nut and lockwasher, serial number 808912 and after

1шт.

O9929AB

X

NIPPLE - 1/4" P.T. x 1-1/2" brass pipe, tee to pump, serial number 808912 and after

1шт.

O9930AB

X

TEE - 1/4" P.T. brass female, serial number 808912 and after

1шт.

O9935AB

TUBE - fuel tank to filter, serial number 808912 and after

1шт.

REFER TO O9935AB TUBE,FOR FLEX ELBOW SHOULD USE 222-47 8/26/96

1шт.

IMPERIAL FLEX ELBOW #69FL (3/8" tube x 1/4" P.T.) tube to filter, serial number 808912 and after

1шт.

O9893AB

TEE - 1/4" for tube to filter , second stage fuel filter and tubes

1шт.

1/4" x 1/8" reducing bushing (Serial no. 8080912 and after), second stage fuel filter and tubes

1шт.

1/4" pipe plug (Prior to serial no. 8080912), second stage fuel filter and tubes

1шт.

O9996AB

TUBE - pump to O10013ab filter, second stage fuel filter and tubes

1шт.

IMPERIAL FLEX CONNECTOR #68FL (5/16" tube x 1/4" P.T.), second stage fuel filter and tubes

2шт.

O10013AB

FILTER - second stage, fuel filter and tubes

1шт.

3/8" x 1" hex hd. bolt N.C. w/lockwasher

2шт.

O10072AB

TUBE - second to final stage filter, fuel

1шт.

REFER TO O10072AB TUBE,FOR ELBOW SHOULD USE 222-45 8/26/96

1шт.

IMPERIAL FLEX TEE #76FL (5/16" tube x 1/4" P.T.) tube to O9985AB, second stage fuel filter and tubes

1шт.

IMPERIAL FLEX ELBOW #69FL (5/16" tube x 1/4" P.T.) tube to O10013AB, second stage fuel filter and tubes

1шт.

4598AA

X

HOSE - (Use 1 - O10337AB and 1 - O01338AB), final stage fuel filter and tubes

1шт.

4822AA

BRACKET - filter mounting, final stage fuel filter and tubes

1шт.

5/16" x 7/8" hex bolt N.c. w/lockwasher

2шт.

O9749AB

VALVE - relief, (American-Bosch no. VA7928A), final stage fuel filter and tubes

1шт.

O9985AB1

final stage fuel filter and tubes

1шт.

REFER TO O9985AB1 FILTER,FOR BLEEDER GASKET SHOULD USE A26413 8/26/96

1шт.

O9986AB

CLAMP - final stage filter, fuel filter and tubes

2шт.

5/16" x 3/4" hex bolt N.F. w/nut and lockwasher

4шт.

1/4" x 1-1/2" mach. screw w/hex nut

2шт.

O10337AB

X

HOSE - filter to pump, final stage fuel filter and tubes

1шт.

O10338AB

UNION

- 90 degree adapter, hose to filter, final stage fuel filter and tubes

1шт.

IMPERIAL NO. 60FL SLEEVE AND NO. 61FL NUT (1/4" tube) for A10387 and A10388

1шт.

IMPERIAL NO. 60FL SLEEVE AND NO. 61FL NUT (5/16" tube) for O9996AB and O10072AB

1шт.

IMPERIAL NO. 60FL SLEEVE AND NO. 61FL NUT (3/8" tube) for O9935Ab, O9981AB and A9788

1шт.
