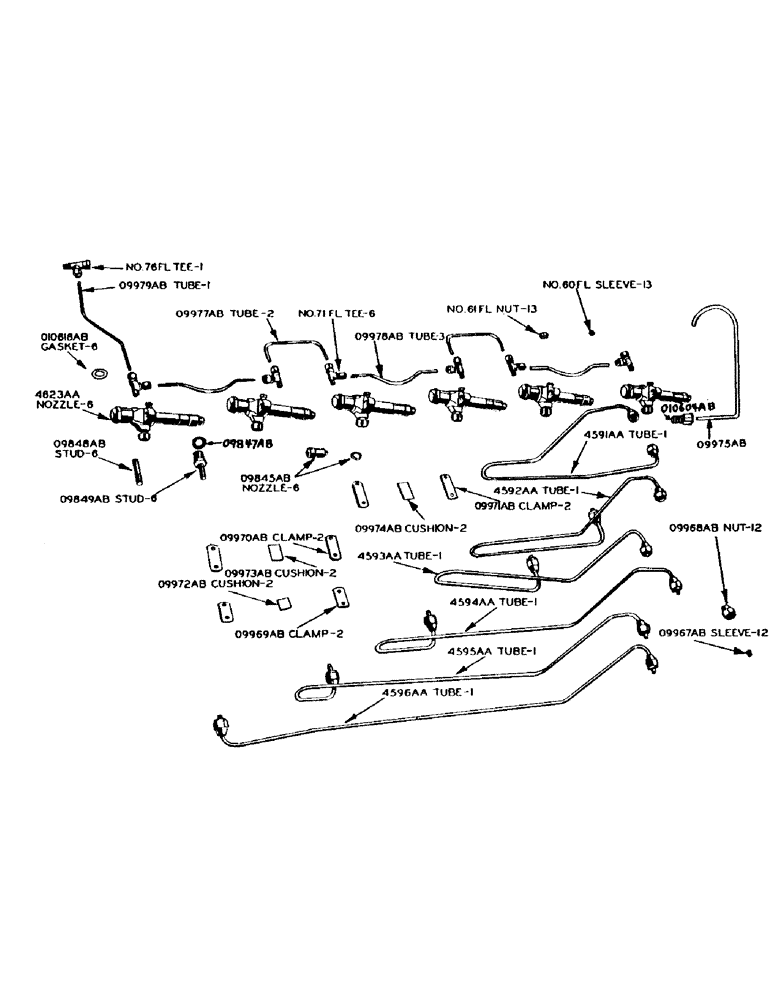

Запчасти Case IH 500-SERIES (020) - FUEL INJECTOR NOZZLE AND TUBES (02) - ENGINE

O9845AB

X

INJECTOR NOZZLE WITH O9847AB GASKET

6шт.

O9847AB

X

GASKET - injector nozzle holder stud

6шт.

O9848AB

X

STUD - nozzle holder, small

6шт.

3/8" hex nut, light, N.F. thrd

6шт.

O9849AB

STUD - nozzle holder, large

6шт.

3/8" hex nut, light, N.F. thrd

6шт.

O9967AB

X

SLEEVE - fuel injector tube coupling

12шт.

O9968AB

NUT - fuel injector tube

12шт.

O9969AB

X

CLAMP - fuel injector tube (Clamps 3 tubes)

2шт.

No. 10 x 1" rd. hd. mach. screw, N.C. thrd. with hex nut and lockwasher

2шт.

O9970AB

X

CLAMP - fuel injector tube (Clamps 5 tubes)

2шт.

No. 10 x 1" rd. hd. mach. screw, N.C. thrd., with hex nut and lockwasher

2шт.

O9971AB

CLAMP - fuel injector tube (Clamps 6 tubes)

2шт.

No. 10 x 1" rd. hd. mach. screw, N.C. thrd., with hex nut and lockwasher

2шт.

O9972AB

X

CUSHION - between O9969AB clamp and fuel injector tubes

2шт.

O9973AB

X

CUSHION - between O9970AB clamp and fuel injector tubes

2шт.

O9974AB

CUSHION - between O9971AB clamp and fuel injector tubes

2шт.

O9975AB

TUBE - leak-off, fuel pump to injector nozzle (1/4" tube)

1шт.

O9977AB

TUBE - injector leak-off, upper (1/4" tubing)

2шт.

O9978AB

X

TUBE - injector leak-off, lower (1/4" tubing)

3шт.

IMPERIAL FLEX TEE NO. 71FL (1/4" tube size x 1/8" pipe thread short) one on each end of tube

6шт.

O9979AB

TUBE - injector leak-off to fuel tank (1/4" tubing)

1шт.

IMPERIAL FLEX TEE, no. 71FL (1/4" tube size x 1/8" pipe thrd.) connects tube to 4623AA injector nozzle

1шт.

IMPERIAL FLEX TEE NO. 76FL (1/4" tube size x 1/4" pipe thrd.) connects tube to fuel tank

1шт.

O10604AB

X

CHECK VALVE - fuel pump leak-off

1шт.

O10618AB

X

GASKET - for injector pressure adjusting screw protective cap

6шт.

4591AA

TUBE - fuel injector, with sleeves and nuts, for no. 1 cylinder

1шт.

4592AA

TUBE - fuel injector, with sleeves and nuts, for no. 2 cylinder

1шт.

4593AA

TUBE - fuel injector, with sleeves and nuts, for no. 3 cylinder

1шт.

4594AA

TUBE - fuel injector, with sleeves and nuts, for no. 4 cylinder

1шт.

4595AA

TUBE - fuel injector, with sleeves and nuts, for no. 5 cylinder

1шт.

4596AA

TUBE - fuel injector, with sleeves and nuts, for no. 6 cylinder

1шт.

4623AA

X

NOZZLE - injector, with holder and gasket

6шт.

IMPERIAL FLEX TEE NO. 71FL (1/4" tube size x 1/8" pipe thread)

6шт.

222-102

SLEEVE,1/4" Tube

Imperial Brass #60 for O9977AB, O9978AB and O9979AB tubes, fuel 1/4" Tube

1шт.

87017024

TUBE NUT,1/2"-24

IMPERIAL BRASS NO. 61FL NUT FOR 1/4" TUBING FOR O9977AB, O9978AB AND O9979AB TUBES, fuel

1шт.
