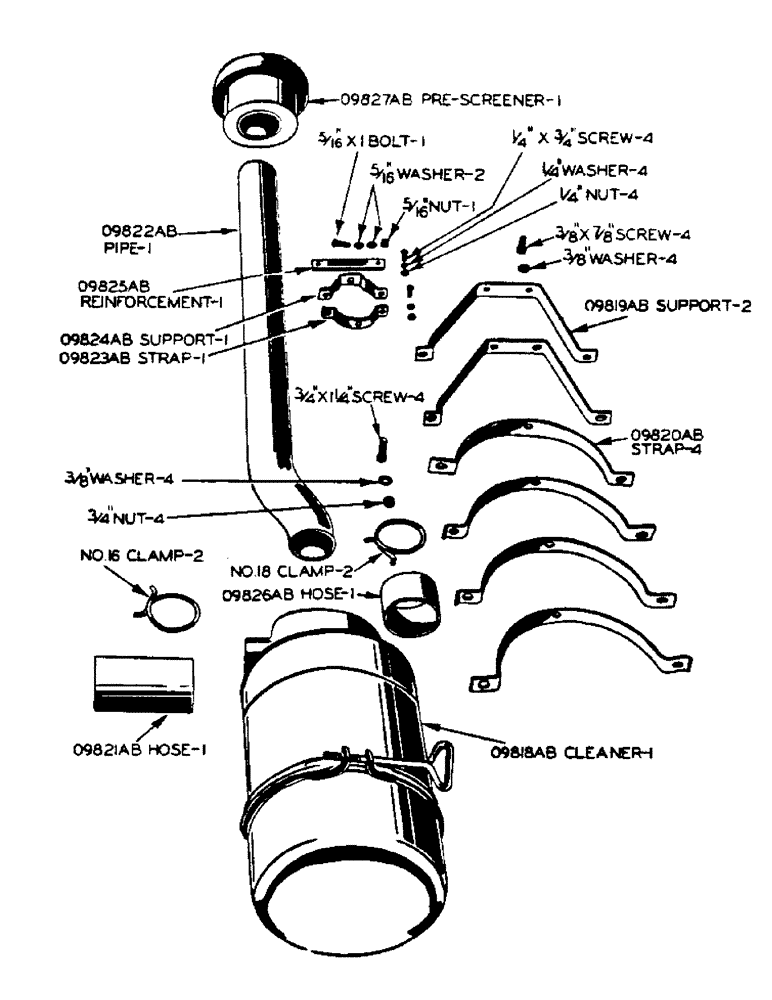

Запчасти Case IH 500-SERIES (016) - AIR CLEANER (02) - ENGINE

O9818AB

AIR CLEANER

1шт.

O9819AB

SUPPORT - air cleaner

2шт.

3/8" x 7/8" hex hd. cap screw, N.C. thrd., with lockwasher, fastens support to cylinder block

4шт.

O9820AB

STRAP - air cleaner

4шт.

3/8" x 1-1/4" hex hd. cap screw, N.F. thrd., with nut and lockwasher

4шт.

O9821AB

HOSE - air cleaner

1шт.

No. 16 hose clamp (For 2-5/8" O. dia hose)

2шт.

O9822AB

PIPE - air intake

1шт.

O9823AB

STRAP - air intake pipe

1шт.

1/4" x 3/4" rd. hd. mach. screw, N.C. thrd., with nut and lockwasher

2шт.

O9824AB

SUPPORT - air intake pipe

1шт.

5/16" x 1" carriage bolt, with hex nut

1шт.

5/16" Shakeproof external-internal lockwasher, no. 4018-24

1шт.

O9825AB

REINFORCEMENT - air intake pipe support

1шт.

1/4" x 3/4" rd. hd. mach. screw, N.C. thrd., with hex nut and lockwasher

2шт.

O9826AB

X

HOSE - air intake pipe

1шт.

No. 18 hose clamp (for 2-7/8" O. dia hose)

2шт.

O9827AB

PRE-SCREENER - air intake

1шт.
