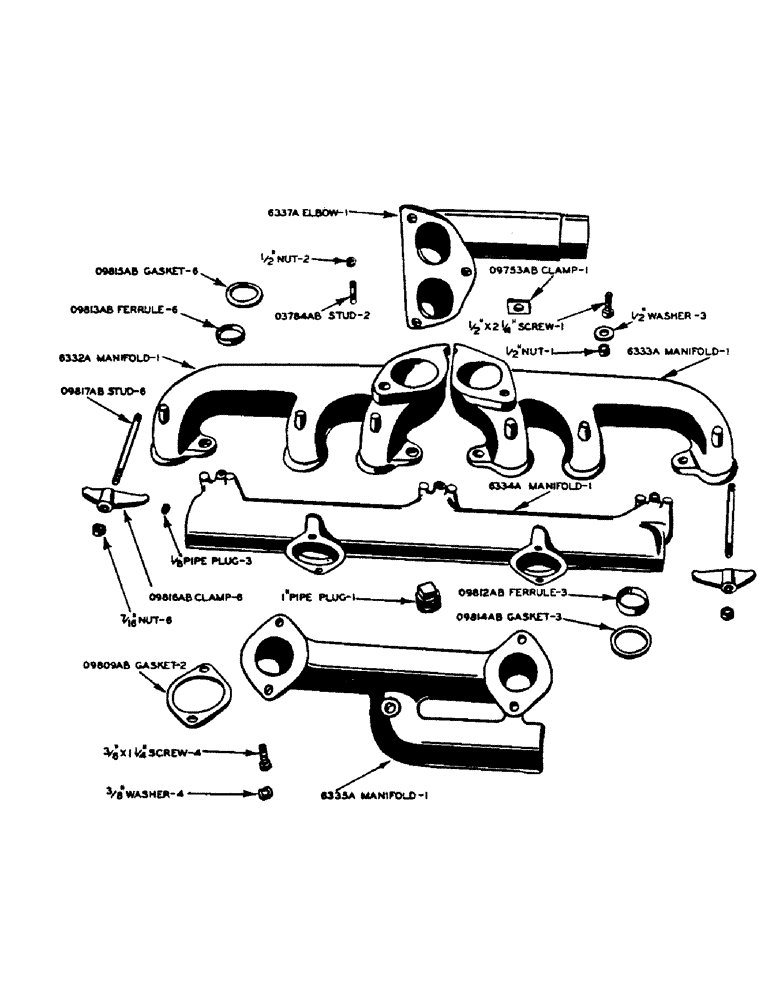

Запчасти Case IH 500-SERIES (015) - INTAKE AND EXHAUST MANIFOLD (02) - ENGINE

6332A

MANIFOLD - exhaust, front

1шт.

6333A

MANIFOLD - exhaust, rear

1шт.

6334A

MANIFOLD - inlet

1шт.

1/8" sq. hd. pipe plug

3шт.

6335A

ELBOW - inlet manifold

1шт.

3/8" x 1-1/4" hex hd. cap screw, N.C. thrd., with lockwasher

4шт.

1" sq. hd. pipe plug

1шт.

6337A

ELBOW - exhaust

1шт.

1/2" x 2-1/4" hex hd. cap screw, N.F. thrd., with nut

1шт.

1/2" plain washer

3шт.

3784AB

STUD - exhaust elbow

2шт.

1/2" hex nut, light, N.F. thrd.

2шт.

O9753AB

CLAMP - exhaust elbow

1шт.

1/2" x 2-1/4" hex hd. cap screw, N.F. thrd., with nut

1шт.

O9809AB

X

GASKET - inlet manifold elbow

2шт.

O9812AB

FERRULE

- inlet manifold

3шт.

O9813AB

X

FERRULE - exhaust manifold

6шт.

O9814AB

X

GASKET - inlet manifold

3шт.

O9815AB

X

GASKET - exhaust manifold

6шт.

O9816AB

CLAMP - inlet and exhaust manifold

6шт.

O9817AB

X

STUD - inlet and exhaust manifold

6шт.

7/16" hex nut, light, N.F. thrd.

6шт.
