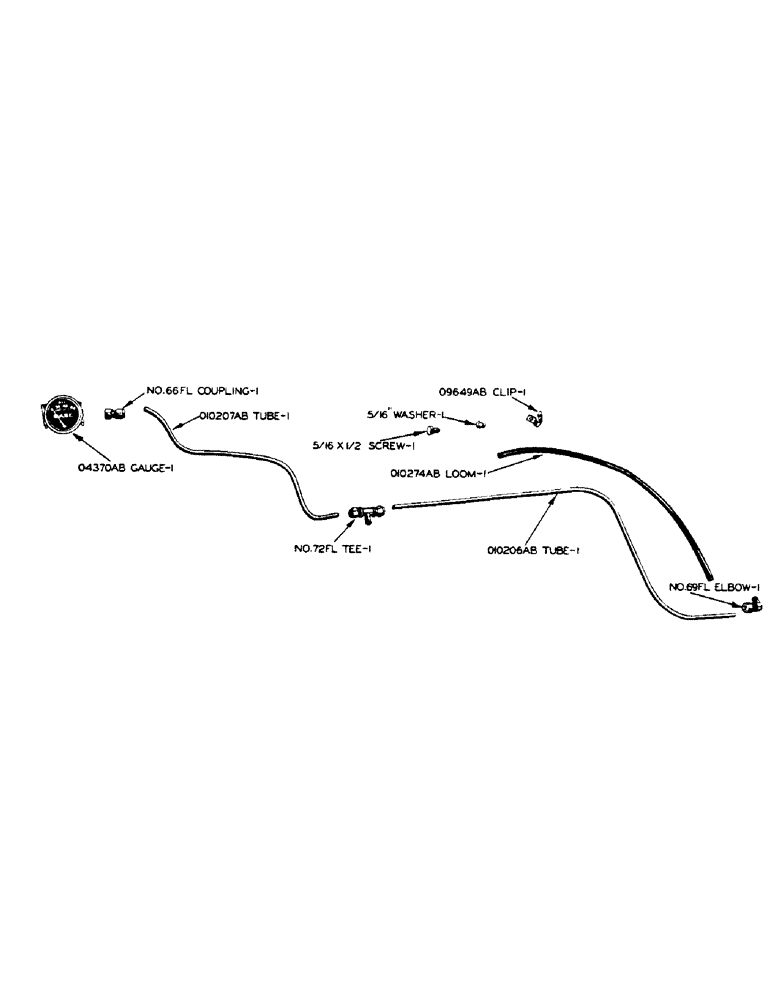

Запчасти Case IH 500-SERIES (014) - ENGINE OIL PRESSURE GAUGE, PRIOR TO SERIAL NUMBER 8080912 (02) - ENGINE

O4370AB

X

GAUGE - oil pressure

1шт.

O9649AB

CLIP - for O10206AB oil gauge front tube

1шт.

5/16" x 1/2" hex hd. cap screw, N.C. thrd., and lockwasher

1шт.

O10206AB

TUBE - oil gauge, front

1шт.

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

IMPERIAL FLEX ELBOW NO. 69FL (1/4" tube size x 1/8" pipe thrd.) connects tube to cylinder block

1шт.

222-72

TEE,1/4" Flex Tube Run x 1/8" NPTF Br

IMPERIAL FLEX TEE NO. 72FL (1/4" tube size x 1/8" pipe thrd.) connects tube to O10207AB tube and O10208AB pressure switch connector

1шт.

O10207AB

TUBE - oil gauge, rear

1шт.

222-12

FITTING,7/16"-24 Inv Fl x 1/8" NPT Fem

IMPERIAL FLEX FEMALE COUPLING NO. 66FL (1/4" tube size x 1/8" pipe thrd.) connects tube to oil gauge

1шт.

222-72

TEE,1/4" Flex Tube Run x 1/8" NPTF Br

IMPERIAL FLEX TEE NO. 72FL (1/4" tube size x 1/8" pipe thrd.) connects tube to O10206AB tube and O10208AB pressure switch connector

1шт.

O10274AB

LOOM - for O10206AB front oil gauge tube

1шт.
